Summary of Contents for TQC Sheen AB3650

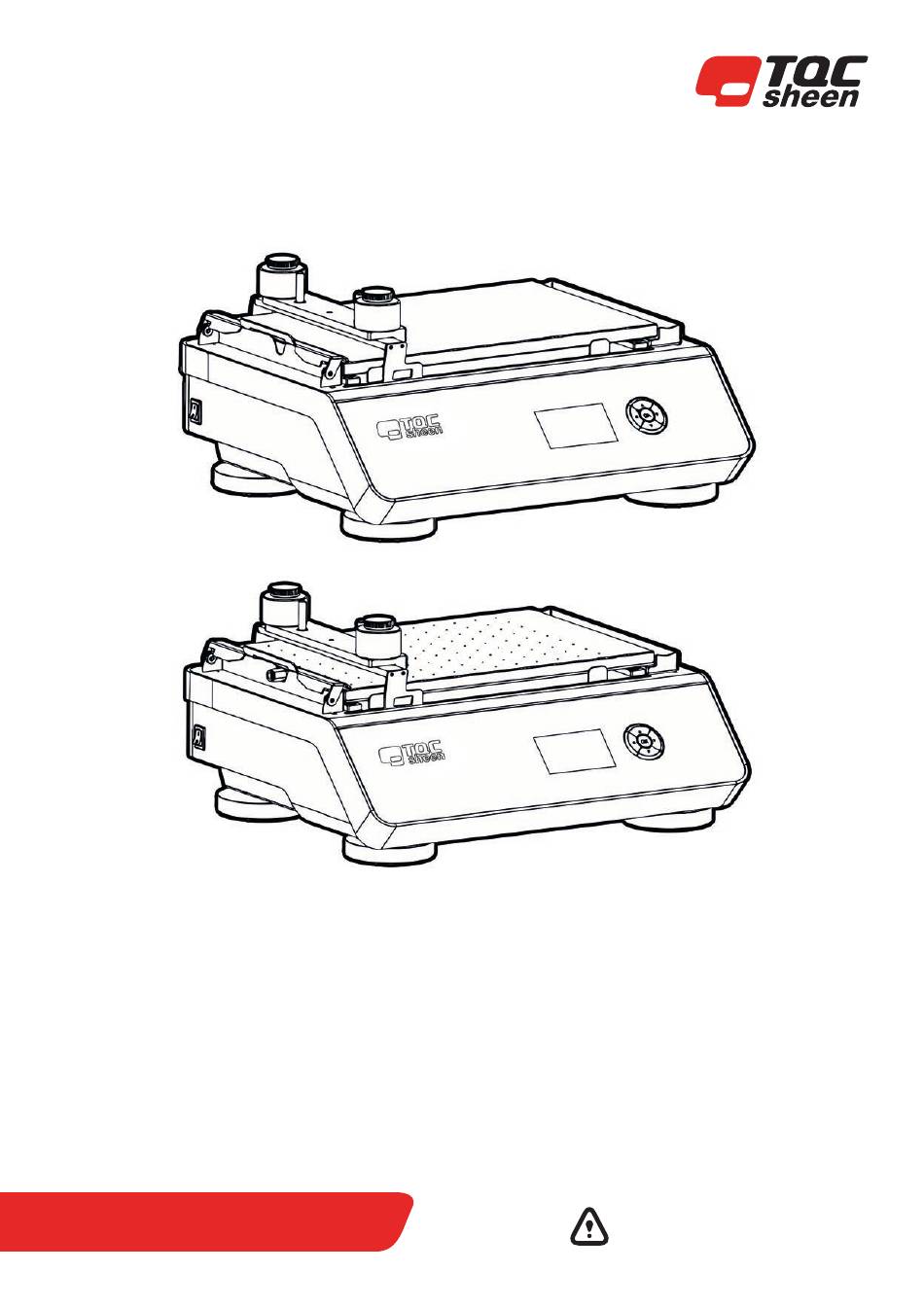

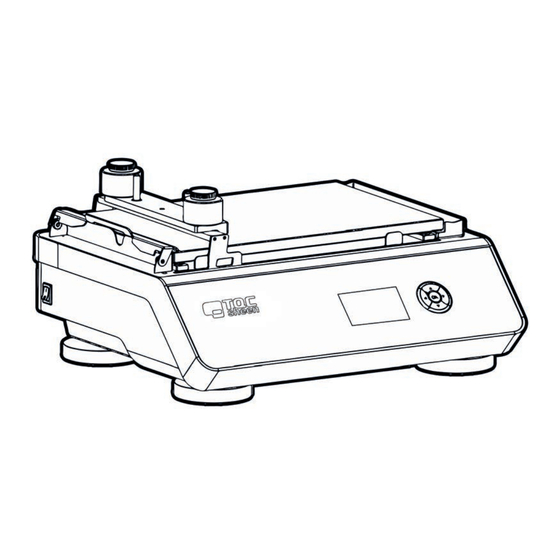

- Page 1 Automatic Film Applicator Compact AB3650, AB3655 Entry level film applicator IMPORTANT! Before taking this instrument Operating Instructions (V1.3 0718) in use we strongly advise you to read this manual carefully.
-
Page 3: Warranty
WARRANTY TQC Sheen will grant a warranty for a period of 12 months for the Automatic Film Applicator Compact and 12 months for all related equipment from the date of delivery in respect of any evidence of faulty workmanship and materials. - Page 5 13/17 Navigation Starting the machine Setting test duration Prepare a draw down - Glass bed model (AB3650) Prepare a draw down - Vacuum bed model (AB3655) Placing an application tool Using paper to collect the surplus of paint Replacing the drip pan...
-
Page 6: General 6
Other applications constitute about how to use the instrument safely and economically; according to improper use. TQC Sheen will not be held liable for damage resulting from the purpose designated. Following these instructions is not only essential improper use. -
Page 7: Safety Instructions 7
2 SAFETY INSTRUCTIONS 2.1 Meaning of Symbols The following symbols for dangers are used in this instruction manual. Possible immediate If this guideline is not noted danger to the life or it can lead to severe danger health of personnel. to health, up to fatal injury. -
Page 8: Transport And Storage 8
3 TRANSPORT AND STORAGE 3.1 Packing • Please take note of pictorial symbols on the packing. 3.2 User: Check on Receipt • Check packing for damage • After unpacking check complete supply. 3.3 Reporting Transport Damage and Documentation • Any damage should be documented as accurately as possible (possibly photographed) and reported to the relevant insurers or, in the case of sales “delivered to customers works”, to the supplier. -
Page 9: Instrument Data
4 INSTRUMENT DATA 4.1 Name / Article Automatic Film Applicator Compact – Entry level film applicator 4.2 Scope of Supply Standard supplied Only supplied with AB3650 Only supplied with AB3655 Automatic Film 24V Adapter Paper Support Glass Bed Vacuum Bed... -
Page 10: Accessories And Spares
4.6 Accessories and Spares Accessories Vacuum Pumps AB3675 Vacuum Pump, 23 l/min, 1750rpm 115VAC AB3676 Vacuum Pump, 18 l/min, 1450rpm 230VAC Optional Weight AB3680 Optional Weight 250 g Wire Bar Coaters AB3720 Wire Bar Coater 4µm, film width 230mm, total width 290mm AB3721 Wire Bar Coater 6µm, film width 230mm, total width 290mm AB3722... -
Page 11: Instrument Controls And Functions 11
Optional 250 g Weight 5-key Navigation Switch Red Pushbar Vacuum Tube Fitting Vacuum Bed at AB3655 or Drip Pan or Paper Holder Power Entry Test Chart Clamp Glass Bed at AB3650 Machine iD-tag Applicator Weight Display 5x Anti-slip Rubber Bumbers 11 |... -
Page 12: Instrument Preparations
6 INSTRUMENT PREPARATIONS The instrument has to be installed on a Connect the power cable. sturdy table or work area. | 12... -
Page 13: Operation
7 OPERATION 7.1 Navigation The Automatic Film Applicator Compact is quite simple to operate by means of the menu in the display and the 5-key navigation switch. Use the 5-key navigation switch to highlight the function of choice in the menu and confirm by pressing the “OK”... - Page 14 7.4 Prepare a draw down - Glass Bed Model (AB3650) Press the clamp down to open. While pressing the clamp position the Release the clamp mechanism. test chart or other specimen on the glass bed and shift it under the clamp to the far left side.
- Page 15 7.5 Prepare a draw down - Vacuum Bed Model (AB3655) Make sure the vacuum bed is connected Position the test chart on the vacuum bed and make sure it is fully flat and covers all the holes. to a proper and active vacuum source. * Note that if the chart is too small to cover all the holes the remaining open holes have to be closed down by means or adhesive tape (use a tape that can be easily removed) Place the application tool as described in...
-
Page 16: Placing An Application Tool
7.7 Using paper to collect the surplus of paint TQC Sheen advises to use this method instead of the drip pan. This method does not require any cleaning, just disposal of contaminated sheets. Assemble the paper support on the right... - Page 17 7.8 Cleaning the drip pan Please note that the drip pan can hold a limited volume of 30 ml of paint. It is important to empty and clean this at a regular basis. To remove the pan just pull it horizontally The pan is entirely made of stainless steel away from the vacuum bed using two so can be cleaned using water or when...
-
Page 18: Care And Maintenance
Follow the local regulations. 10.2 Customer Service Customer service is provided on request by TQC Sheen - Molenbaan 19 , 2908LL Capelle aan den IJssel The Netherlands, T +31(0)10 7900100, F +31 (0)10 7900129 or by local representatives. - Page 19 9 DISCLAIMER The right of technical modifications is reserved. The information given in this manual is not intended to be exhaustive and any person using the product for any purpose other than that specifically recommended in this manual without first obtaining written confirmation from us as to the suitability of the product for the intended purpose does so at his own risk.
- Page 20 TQC Sheen TQC Sheen GmbH TQC Sheen ITALIA s.r.l. TQC Sheen Korea Molenbaan 19 Nikolaus-Otto-Strasse 2 Via Cesare Cantu’ ,26 Bldg Star Plaza, #805 2908 LL, Capelle aan den Ijssel Hilden, D-40721 SEREGNO, (MB) 20831 Kimpo-Hangang-8-Ro 410 The Netherlands Germany...
