Fowler Xtra-Value Cal Operating Instructions And Parts Manual

®

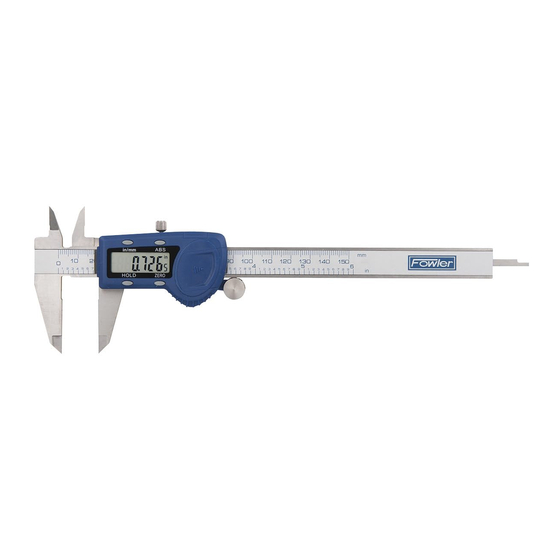

Thank you for your purchase of the Fowler Xtra-Value Cal Electronic Caliper.
Please carefully review this instruction manual to insure proper and accurate use of your new instrument.
1. Before using this caliper for the first time, wipe the rust preventive oil from the caliper with a soft cloth.
2. Never apply voltage (e.g. engraving with an electric engraver) on any part of the caliper for fear of damaging
the circuit.
3. After use, take corrosion prevention measures such as a very fine clock oil.

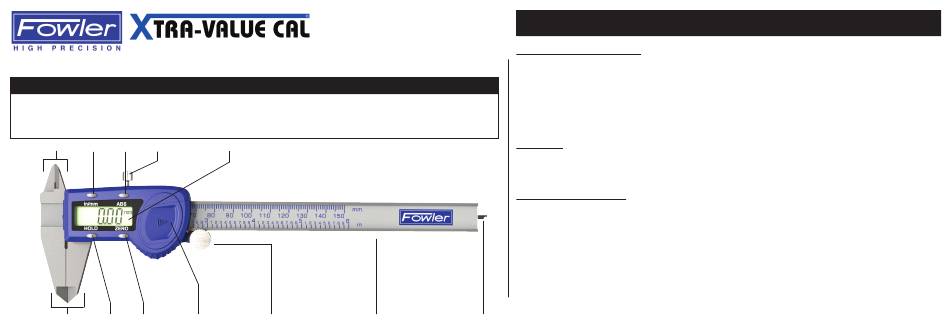

Internal Jaws in/mm ABS Locking screw
External Jaws Hold Zero Battery Cover
Electronic Caliper
IMPORTANT!
LCD display
Thumbroll Beam
Operating Instructions and Parts Manual
Functions and Features
Turn on the caliper by moving the measuring carriage. Auto switch off after several minutes.
Zero Setting: Press <zero> function button
Changing Measuring Standard: Press <inch/mm> function button to toggle between in/mm
Absolute/Incremental: Press <abs> button, to return to zero function press button again
Hold: Press once to freeze display reading. Press again to resume measuring
Cleaning
Clean the caliper with a soft cloth and a few drops of fine clock oil. DO NOT use any type of sol-
vent. DO NOT immerse the caliper in liquid.
Battery Replacement
• Slide off the battery cover, then remove the battery by gently tapping the instrument in your hand
(Never try to force or pry the battery out). Insert the new battery with the positive pole "+" facing
upwards and replace the cover
• Please dispose of used batteries at a proper collection center.
Depth Measurement Rod
Model No: 54-101-150-2
SEE REVERSE FOR FURTHER INSTRUCTIONS
