Congratulations
You have purchased the finest winch available in
its service class. It features a highly efficient 3
stage planetary gear set which transmits torque
from a series wound DC motor. A semi-
automatic clutch allows free spooling for quick
cable deployment and eliminates unnecessary
trips back to the winch. A wireless r e m o t e
a l l o w s t h e w i n c h t o b e o p e r a t e d w h i l e
s t a n d i n g u p t o 5 0 feet away. An automatic
load holding brake is designed to hold the full
rated capacity of the winch. It was designed and
manufactured to provide you with the utmost in
utility. As with any device that combines power
and movement in its use, there are dangers if
improperly used. At the same time, there are
easier ways for get ting the job done if certain
precautions are taken first.
Please read this manual carefully. It contains
useful ideas in ob taining the most efficient
operation from your Ramsey Winch and
safety procedures you need to know before
beginning use. When you follow our guidelines
for operation, your Ramsey Winch will give you
many years of satisfying service. Thank you for
choosing Ramsey. You will be glad you have
one working for you.
CAUTION: Read and understand this manual before installation and operation of winch. See Safety Precautions!
Ramsey Winch Company
Owner's Manual

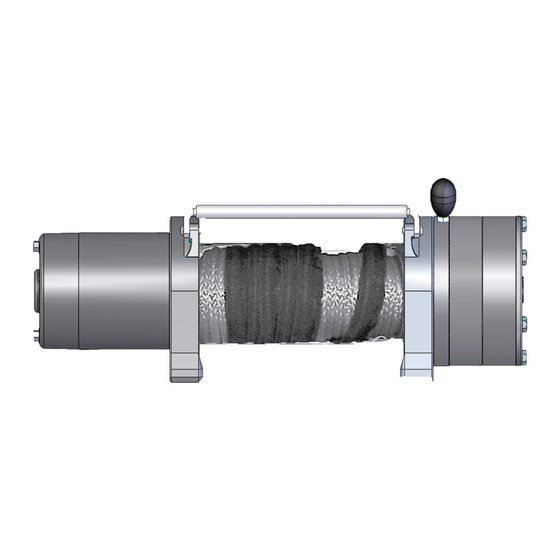

Front Mount Electric Winch
Patriot Profile 9500
with synthetic rope 12 volt
Rated Line Pull Per Layer
(lbs)
(kg)
( )*
Layer (3/8" x 100')
Synthe c Rope)
(m)*
Line Pull First Layer
(lbs)
(kg)
(FPM)
12V
24V
Line Speed First Layer
(MPM)
12V
24V
Amp Draw
12V
24V
Contents
Performance Specifications
Warranty
Please note: Ramsey Patriot series winches are designed
for front mount vehicle use. The winches are not designed for
and should not be used in industrial applications (car hau-
lers/carriers, wreckers, hoisting, etc.), and Ramsey does
not warrant them to be suitable for such use. Ramsey makes a
sepa rate, complete line of winches for industrial/commercial
use. Please contact the factory for further information.
1
2
3
4
9,500
7,700
6,500
5,700
4,309
3,480
2,940
2,580
15
34
58
86
4
10
17.5
26
NO
2,000
4,000
6,000
LOAD
900
1,810
2,720
35.4
16.7
12.7
10.6
29
16
13
10
10.7
5.1
3.8
3.2
8.8
4.9
4
3
97
180
260
335
45
95
128
165
Front Cover
2
2
3
4
6
7
9
10
12-14
Back Cover
OM 914264-0414-A
5
4,900
2,210
100
30.5
8,000
9,500
3,620
4,309
9
7.8
9
8
2.7
2.3
2.7
2.4
395
430
192
212
Advertisement
Table of Contents
Related Manuals for Ramsey Winch Patriot Profile 9500
Summary of Contents for Ramsey Winch Patriot Profile 9500
-
Page 1: Table Of Contents
When you follow our guidelines and should not be used in industrial applications (car hau- for operation, your Ramsey Winch will give you lers/carriers, wreckers, hoisting, etc.), and Ramsey does many years of satisfying service. Thank you for not warrant them to be suitable for such use. -
Page 2: Safety Precautions
G. Modification, alteration, or deviation to the winch should only be dam age. Always use a sling or chain of suitable strength, as shown made by Ramsey Winch Company. in the illustration. H. Keep the duration of your pulls as short as possible. If the motor... -
Page 3: Techniques Of Operation
TECHNIQUES OF OPERATION Techniques of Operation few techniques. When pulling a heavy load, place a blanket, jacket or tar- The best way to get acquainted with how your winch paulin over the rope five or six feet from the hook. It will operates is to make a few test runs before you actually slow the snap back in the event of a broken rope. -
Page 4: Installation
INSTALLATION NOTES Installation It is recommended that Ramsey mounting channels be used with all non-Ramsey mounting. The winch shown in this owner’s manual is solely and exclusively designed for vehicle mounted, non-industrial Attach aluminum hawse fairlead to channel using hard- applications. - Page 5 To mount Solenoid Assembly, use included Solenoid mount- ing Bracket. Mount bracket to tie bar using (1) ¼-20NC x 1” capscrew in place of ¾” tie bar capscrew. Install bracket to back of solenoid using included nuts and lockwashers. When mounting winch, con- nect labeled motor leads com- ing from solenoid assembly to appropriately marked mo-...
-
Page 6: Electrical Connections And Operation
ELECTRICAL AND OPERATING INSTRUCTIONS stopped fully before reversing. To actuate winch Operating Instructions simply plug remote control switch into receptacle in The winch clutch allows rapid unspooling of the wire cover of winch. Run winch forward and reverse to rope for hooking onto the load or anchor point. The check directions. -
Page 7: Rope Installation
REPLACEMENT ROPE INSTALLATION/ INSPECTION Replacement Rope Installation Notes: · Rope should be installed so that it feeds from the bottom of the drum. · An Aluminum Hawse Fairlead, P/N 251266 (included with winch), is required for use with the Ramsey Synthetic Rope. - Page 8 Rope Inspection When rope is first used, the outer filaments of the rope will quickly fuzz up. This is the result of these filaments breaking and this roughened surface will actually protect the fibers underneath. The condition should stabilize, not progress.
-
Page 9: Troubleshooting Guide
TROUBLE SHOOTING GUIDE Troubleshooting Guide Condition Possible Cause Correction MOTOR RUNS IN ONLY Defective or stuck Jar each solenoid to free contacts. Check each solenoid ONE DIRECTION solenoid by applying 12 volts to coil terminal (it should make an audible click when energized). Defective remote control Disengage winch clutch, remove remote control switch switch... -
Page 10: Solenoid Assembly Parts List
Solenoid Assembly Parts List 278189 12V (Patriot Pro le 9500 UT) Item Qty. Part Description Item Qty. Part Description 204281 ASSEMBLY – SOLENOID BRACKET 416216 SCREW – #10-24NC X 1/2 LG 289015 ASSEMBLY – WIRE BATTERY CABLE 72” LG 418014 NUT –... - Page 11 NOTES...
-
Page 12: Winch Parts List
EXPLODED VIEW 51 11... - Page 13 PARTS LIST Item No. Qty. Part No. Description 247009 GEAR CARRIER ASSEMBLY – INPUT 247023 GEAR CARRIER ASSEMBLY – OUTPUT 247037 GEAR CARRIER ASSY – INTERMEDIATE 251110 SWITCH ASSEMBLY 251266 ALUMINUM HAWSE FAIRLEAD 251262 ROPES ASSEMBLY 278189 SOLENOID ASSEMBLY – 12V 289141 CABLE ASSEMBLY - GROUND 296181 BRAKE/INPUT SHAFT ASSEMBLY 297040 MOTOR 12V...
- Page 14 PARTS LIST (Continued) Item No. Qty. Part No. Description 416208 BOLT-#8-32NC X 1/2 LG. SOCKET HD 418035 NUT 3/8-16NC HEX REG PLATED 418177 LOCKWASHER – 3/8 ID MED SECT 418181 WASHER-FLAT 3/8 ID SAE PLATED 426052 ACTUATOR 426053 LINK – CLUTCH 426056 PLUNGER –...
-
Page 15: Cumula Ve Capacity Per ( )
If the need should arise, warranty procedure is outlined on the back of your self-addressed postage paid warranty card. Please read and fill out the enclosed warranty card and send it to Ramsey Winch Company. If you have prob- lems with your winch, please follow instructions for proper service on all warranty claims.
