MS double shelf motif 10' x 10'gazebo with net
ASSEMBLY INSTRUCTIONS
ITEM# MS14-302-008-02
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE
INTENDED FOR RESIDENTIAL USE ONLY.
Questions, problems, missing parts with this product? Do not return to your
retailer, please call our customer service department 9:00 a.m. to 5:00
p.m.Eastern Standard Time Monday through Friday Phone # 1-800-457-4652.
contact us at www.numarkcustomerservice.com.
STOP DON'T RETURN TO STORE
1
Advertisement
Related Manuals for Mainstays Landsdowne Heights
Summary of Contents for Mainstays Landsdowne Heights

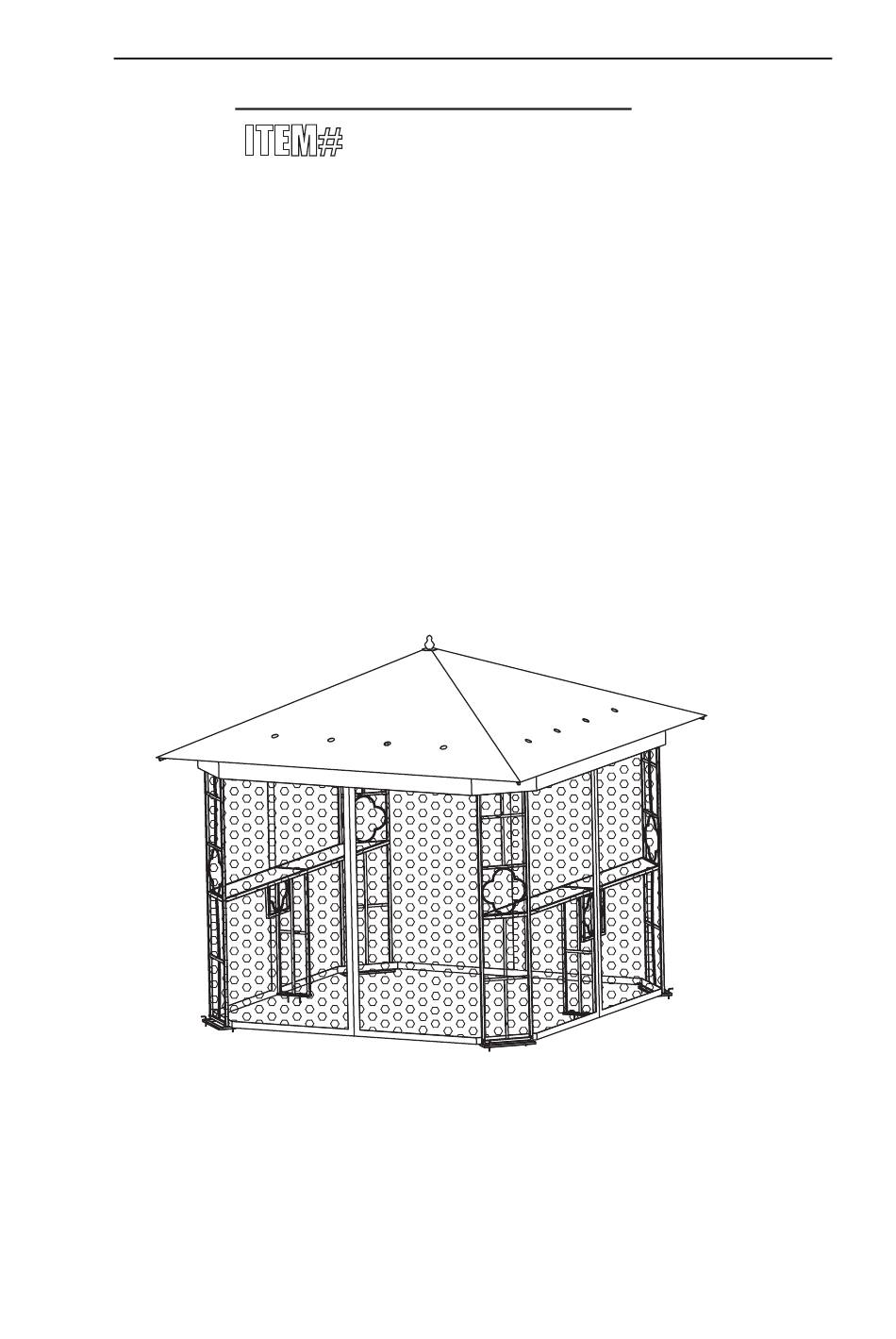

- Page 1 MS double shelf motif 10' x 10’gazebo with net ASSEMBLY INSTRUCTIONS ITEM# MS14-302-008-02 ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY. Questions, problems, missing parts with this product? Do not return to your retailer, please call our customer service department 9:00 a.m. to 5:00 p.m.Eastern Standard Time Monday through Friday Phone # 1-800-457-4652.
- Page 2 WARNINGS AND CAUTIONS ＊It is essential to place the gazebo on level ground and not less than 6 feet from any obstruction such as fences, garages, the house, overhanging branches, laundry lines, or electrical wires. Assembly by at least four adults is recommended. ＊...
- Page 3 Remove all components from the polybag and unwrap all package materials. Please count the components, there are: Part Description Quantity Leg Post Base Top Beam Canopy Frame Table Top Table Top Supporting Leg Decorating Part Canopy Fabric Mosquito Net STOP DON’T RETURN TO STORE...
- Page 4 STOP DON’T RETURN TO STORE...
- Page 5 ACCESSERY Part Description Quantity M6x15L Bolt 8+1 spare M6x30L Bolt 28+1 spare M6x36L Bolt M6x40L Bolt M6 Metal Washer 36+1 spare M6 Nut Canopy Decorative Finial Lawn Stake Touch-up Paint Open Hex Wrench Allen Wrench Assembly instructions sheet STOP DON’T RETURN TO STORE...
- Page 6 Step1 K3 x 8 K5 x 16 K6 x 8 M6 Nut M6 Metal Washer M6x36L Bolt Please don’t tighten the bolts fully at this step. Step2 K3 x 16 K5 x 32 K6 x 16 M6x36L Bolt M6 Nut M6 Metal Washer Please don’t tighten the bolts fully at this step.
- Page 7 Step3 K7 x 1 canopy decorative finial ＩＩＩ ＩＩＩ Step4 K2 x 4 K5 x 8 K6 x 4 M6x30L Bolt M6 Metal Washer M6 Nut Tighten all bolts of steps above. STOP DON’T RETURN TO STORE...
- Page 8 Step5 K1 x 8 K3 x 4 K5 x 16 K6 x 4 M6x15L Bolt M6x36L Bolt M6 Metal Washer M6 Nut Please don’t tighten the bolts fully at this step. STOP DON’T RETURN TO STORE...
- Page 9 Step6 K4 x 4 K5 x 8 K6 x 4 M6x45L Bolt M6 Metal Washer M6 Nut Tighten all bolts of steps above. Step7 K8 x 12 Lawn Stake STOP DON’T RETURN TO STORE...
- Page 10 Step8 Hang the mosquito net (J) on the top beam (C). Your gazebo is ready for use. Printed in China. STOP DON’T RETURN TO STORE...
