3/8”/1/2” air hose reel
Hide thumbs Also See for 83753:

Advertisement

Quick Links

Specifications
• Spring driven, automatic rewind, with locking ratchet mechanism (eight locking positions per revolution).
• Brass connectors on hose and reel
Model 83753
• 50 Feet of 3/8" Hose
275172 Hose ©
• Incoming Air Connection: 1/4" NPT
275174 Swivel ©
• Hose Connections: Male 1/4" NPT
• Maximum Pressure: 300 PSI
• Maximum Air Flow: 25 CFM
Read and understand entire manual before assembling or using hose reel. Failure to follow instructions or warnings could
result in personal injury and/or property damage.

Safety Rules

DO NOT EXCEED 300 PSI incoming air pressure (from compressor).
2. Wear impact-resistant eye protection that meets ANSI Spec. Z87.1 in work area at all times.
Do not release hose when rewinding. Hold hose end and allow hose to rewind slowly.
Never allow children to use hose reel. Keep children clear of work area at all times.
Installing Hose Reel©
Note: Mounting hardware is not included and must be purchased separately. Decide
first where reel will be mounted before purchasing hardware. Different mounting posi-
tions require different types of hardware.
Reel can be mounted on the floor, ceiling, or wall, wherever it is convenient. When
choosing a location, remember that you can only mount reel to a load-bearing struc-
tural member capable of supporting combined weight of reel, hose, and forces caused
by pulling or maneuvering hose. Generally, mounting reel near air compressor is best
since you can connect the two with a shorter, less expensive length of hose. Also, air
compressor controls will be nearby for convenient adjusting.

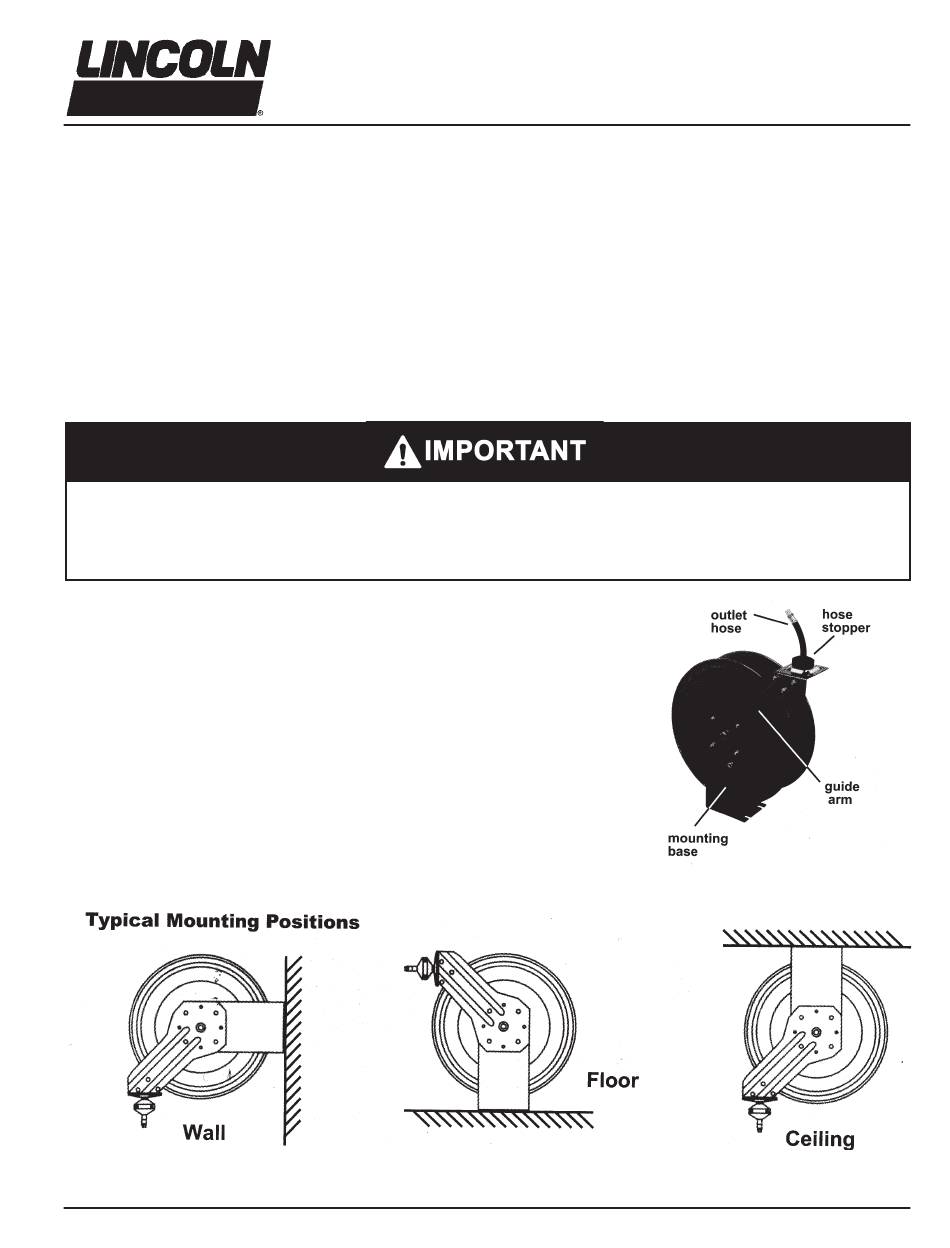

Once you have located a mounting spot, consult the "Typical Mounting Positions"
chart below and choose the diagram that most closely matches your mounting posi-
tion. If necessary, adjust guide arm position to match diagram.
© Indicates change
DEC - 2006
MODEL 83753 3/8" AIR HOSE REEL
MODEL 83754 1/2" AIR HOSE REEL
Model 83754
• 50 Feet of 1/2" Hose
275173 Hose ©
• Incoming Air Connection: 1/2" NPT
275175 Swivel ©
• Hose Connections: Male 1/2" NPT
• Maximum Pressure: 300 PSI
• Maximum Air Flow: 35 CFM
Form 402153
- E35
Section
Page
- 71B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 83753 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lincoln 83753

  • Page 1 MODEL 83753 3/8” AIR HOSE REEL MODEL 83754 1/2” AIR HOSE REEL Specifications • Spring driven, automatic rewind, with locking ratchet mechanism (eight locking positions per revolution). • Brass connectors on hose and reel Model 83753 Model 83754 • 50 Feet of 3/8” Hose •...
  • Page 2 Page Number - 2 Form 402153...
  • Page 3 ADJUSTING THE GUIDE ARM Pull out 3-4 feet of hose and allow reel to lock in position. Remove the four bolts connecting guide arm to mounting base. Rotate guide arm in 90°-increments to desired position total number of positions is five (5). Replace four bolts and tighten. Continue by choosing proper mounting hardware.
  • Page 4 first year of the warranty period, it will be repaired or replaced at Lincoln’s discretion, without charge. In years two (2) and three (3), the warranty on this equipment is limited to repair with Lincoln paying parts and labor only.
