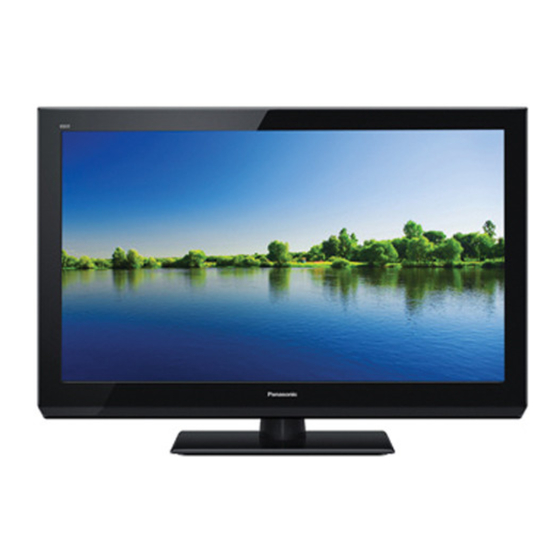

Panasonic Viera TH-L32C5M Operating Instructions

TH-L32C5M
TH-L42U5M
Operating Instructions
LCD TV
Standard accessories
Check that you have the accessories and items Contents
shown
Safety Precautions ........................................... 1
Caution ............................................................ 1
Remote Control
Installing And Uninstalling Stand ...................... 2
(TZZ00000009A)
Partnames And Functions ................................ 3
Pedestal
Operation Of Remote Control .......................... 4
Auto Tuning ...................................................... 5
How To Use Menu Functions ........................... 5
Watching TV .................................................... 6
Specifications ................................................... 6
Batteries for the
Remote Control (2)
• (AAA)
Operating
Instructions
Assembly
screws (4)
Thank you for purchasing this Panasonic product.
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
CAUTION: This product contains possibly dangerous parts (such as plastic bags),
that can be breathed in or swallowed by young children accidentally.
Keep these parts out of reach of young children.
English
OPERATION OF REMOTE CONTROL
10無 Volume Up / Down (VOL+ / - ) Buttons- Adjust the volume
up/down.
11無 Channel Up / Down (CH / ) Buttons- Select the channel
up/down.
12無 TV Button- Switch to TV mode.
13無 AV Button- Select input mode ''AV1'', ''AV2'', ''AV3'', ''PC'',
''HDMI'', ''TV'', ''USB'' in sequence.
14無 MUTE Button- Switch sound Mute on/off.
15無 I/II Button- Select mono / stereo / bilingual.
16無 USB Button- Switch to USB OPERATION MODE.
17無 EXIT Button - Exit On-Screen Menu.
18無 ▲/▼/◄/►/OK Buttons -
CURSOR ▲ (up) ▼ (down) Buttons
- Move the cursor up and down.
CURSOR ◄ (left) ► (right) Buttons
- Move the cursor left and right.
- Adjust the value of the selected item on On-Screen Menu.
OK Button
- Confirm selections and choices.
- Play multi-media in USB mode.
19無 MENU Button- Press to access On-Screen Menu.
20無 RETURN Button- Return to previous menu.
21無 TXT SUB Button- Teletext SUB function key.
22無 TXT SIZE Button- Teletext SIZE function key.
23無 TXT HOLD Button-Teletext HOLD function key.
24無 TXT CNL Button- Teletext CNL function key.
25無 COLOR KEY Buttons- Red / Green / Yellow / Blue key for
TXT special function, and USB function key.
26無  Button- Fast-Rewind during Playback or Pause.
Button- Playback / Pause.
27無
28無  Button- Fast-Forward during Playback or Pause.
29無 REPEAT Button- To execute Repeat function.
30無 Button- Go to the beginning of the previous title/
chapter/scene/track.
31無 Button - Stop Playback and switch to USB OPERATION
MODE.
1無 Power Button- Turn the LCD TV ON/OFF. When the TV
is on, the green LED indicator on the TV front will be 32無 Button- Go to the beginning of the next title/chapter/
illuminated. scene/track.
2無 INFO Button- Displays TV status information as well as
33無 STILL Button - Freeze the window picture.
program details.
3無 Numeric Buttons
NOTE:
- Press numeric buttons to select a TV channel.
• STILL function will not support 1080P mode and USB signal.
- Turn on TV and enter the channel when TV is off.
4無 ASPECT- Select picture size. • USB function should be operated through remote control.
5無 LAST VIEW- Switch to the previously viewed channel or
• LAST VIEW function-Watching less than 10 seconds is not
input source. Press again to return to the present view.
regarded as the previously viewed channel or input source.
6無 OFF TIMER- Select Off timer function.
7無 TXT REVEAL-Teletext REVEAL function key.
8無 TXT INDEX- Teletext INDEX function key.
9無 TEXT Button- Switch to Teletext or TEXT/MIX mode.
SAFETY PRECAUTIONS
Warning
■ This appliance is intended for use in tropical climates
■ When cleaning the TV, remove the mains plug
Handling the mains plug and lead
• Insert the mains plug fully into the socket outlet. (If the mains plug is
• Cleaning an energized TV may cause electrical shock.
Model No.
loose, it could generate heat and cause fire.)
■ When the TV is not going to be used for a long period of
• Ensure that the mains plug is easily accessible.
• Do not touch the mains plug with a wet hand. (This may cause time, remove the mains plug
electrical shock.) • This TV will still consume some power even in the Off
• Do not damage the mains lead. (A damaged lead may cause fire or
mode, as long as the mains plug is still connected to a live
electrical shock.)
socket outlet.
• Do not move the TV with the lead plugged in the socket outlet.
• Do not place a heavy object on the lead or place the lead near a
■ Allow sufficient space around the TV for radiated heat
high-temperature object.
• When using the pedestal, keep a space between the
• Do not twist the lead, bend it excessively, or stretch it.
bottom of the TV and the surface where the TV is set.
• Do not pull on the lead. Hold onto the mains plug body when
disconnecting lead.
• If using a wall-hanging bracket, refer to its manual.
• Do not use a damaged mains plug or socket outlet.
Do not allow children to handle remote control batteries.
• As with any small object, remote control batteries can be swallowed
by young children. Please remove remote control batteries
immediately after use and store out of reach of children.
■ Do not block the rear air vents
• Blocked ventilation by newspapers, table cloths, curtains,
etc. may cause overheating, fire or electrical shock.
■ Do not apply strong force or impact to the display panel
• Mains plug types vary between countries • This may cause damage resulting in injury.
■ Do not expose your ears to excessive volume from the
Power source / Installation
headphones
• This TV is designed for :
• AC 110 - 240 V, 50 / 60 Hz • Irreversible damage can be caused.
• Table-top use
Note
Do not remove covers and NEVER modify the TV yourself
■ Keep the TV away from these types of equipment
• Do not remove the rear cover as live parts are accessible when it is
• Electronic equipment
removed. There are no user serviceable parts inside. (High-voltage
components may cause serious electrical shock.) In particular, do not place video equipment near the TV.
• Have the TV checked, adjusted, or repaired at your local Panasonic
Electromagnetic interference may distort images / sound.
dealer.
• Equipment with an infrared sensor
Do not expose to rain or excessive moisture This TV also emits infrared rays. This may affect operation
• To prevent damage which might result in electric shock or fire, do not
of other equipment.
expose this TV to rain or excessive moisture. This TV must not be
■ Transport only in upright position
exposed to dripping or splashing water and objects filled with liquid,
such as vases, must not be placed on top of or above the TV.
TRADEMARKS
Do not expose to direct sunlight and other
• HDMI, the HDMI Logo, and High-Definition Multimedia
sources of heat
Interface are trademarks or registered trademarks of HDMI
• Avoid exposing the TV to direct sunlight and other sources of heat.
To prevent fire never place any type of candle or naked flame on top Licensing LLC in the United States and other countries.
or near the TV.
• VGA is a trademark of International Business Machines
Corporation.
Do not insert foreign objects into the TV
• Do not allow any objects to drop into the TV through the air vents. • S-VGA is a registered trademark of the Video Electronics
(Fire or electrical shock may result.)
Standard Association.
• Apple and Macintosh are trademarks or registered
Do not place the TV on sloped or unstable surfaces
trademarks of Apple Computer,Inc.
• The TV may fall off or tip over.
• IBM and PS/2 are trademarks or registered trademarks of
International Business Machines,Inc.
Use only the dedicated pedestals / mounting equipment
• Using an unapproved pedestal or other fixtures may make the TV • Each name of corporations or products in the owner's
unstable, risking injury. Be sure to ask your local Panasonic dealer manual is a trademark or are registered trademark of its
to perform setup.
respective corporation.
• Use approved pedestals.
• This production contains Bitstream Vera DejaVu fonts
under the following copyright.
IMPORTANT INFORMATION
Copyright © 2003 by Bitstream, Inc. All rights reserved.
If a television is not positioned in a sufficiently stable location, it can
be potentially hazardous due to falling. Many injuries, particularly to Bitstream Vera is a trademark of Bitstream, Inc.
children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the
This product incorporates the following software or
television.
technology:
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting
• The software developed by the FreeType Project.
furniture.
• Not placing the television on tall furniture (for example, cupboards or
.
bookcases) without anchoring both the furniture and the television to
a suitable support.
HDA70C3250I
• Not standing the televisions on cloth or other materials placed
between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to
reach the television or its controls.
AUTO TUNING HOW TO USE MENU FUNCTIONS
Search and store TV channels automatically. 1
• These steps are not necessary if the setup has been
completed by your local dealer.
1
• Displays the functions that can be set
Plug the TV into mains socket and switch On
2
• You can now use the remote control to turn on the TV or switch the
Select the menu
TV to Standby mode. (Power LED: Green)
2
Select the OSD language
3
Auto Tuning
Select the item
42.00MHz
0
Scan
EXIT Enter
OK RETURN
3
4
Select viewing environment
Adjust or select
Please select your viewing environment.
Home Shop
Confirm
OK
Select
■
To close OSD menu
at any time
■
To return to the
previous screen
■
To change OSD
page.
Auto Tuning is completed
*Viewing environment mode
[Home]: Recommended mode for viewing at home.
Select [Home] for optimal picture / power consump-
tion.
[Viewing Mode] is set as [Normal].
[Shop]: For in-store display
[Viewing Mode] is set as [Dynamic].
4
CAUTION INSTALLING AND UNINSTALLING STAND
CAUTION INSTALLING STAND BASE
• Through in installing work, handling with more than two
people is recommended.
• When holding (moving or lifting) the LCD Display, hold the
display's body. Do not handle the LCD TV by holding the
attached accessory parts (speakers), otherwise it may result
in damage.
• Before installing, provide a desk (or a part of it) which is
strong enough to support the weight of the LCD TV and this
stand. The desk must be larger than the LCD Display screen
size. The desk's surface must be flat and maintained with soft
material (such as a blanket) for protecting the screen surface.
Minimum distance (cm) • Before putting the LCD Display on the desk, make sure there
is no object on it. Leaving any object under the screen may
10 cm
cause damage on the screen.
• The LCD TV with this stand should be installed on flat and
10 cm 10 cm 10 cm
level place. Do not place on thing such as a non flat, uneven
or unstable cart or stand. The display may fall, causing not
only serious damage to the products but serious injury to a
person.
SAFETY NOTE
For correct installing, mounting and uninstalling LCD TV Stand,
it is strongly recommended to use a trained, authorized dealer.
Failure to follow correct procedures could result in damage to the
equipment or injury to the installer.
Installing Stand Base
1. Place the LCD TV screen facing down on a flat surface
place where maintained with soft materials (such as a
blanket) for protecting the display screen.
2. Secure the stand to the TV with 4 screws.
Foam mat or thick
soft cloth
4
3. Warning
To prevent injury, this apparatus must be securely attached to
the floor / wall in accordance with the installation instructions.
This TV could fall over if it is pushed , pulled or knocked down.
Use the screw to secure TV to the furniture.
Screw type:
Wall Mounting (optional)
Use the screws that are threaded into the stand-mounting inserts
on the back of your LCD TV to secure it to a Wall Mounting kit.
NOTE: Wall Mounting kit is not supplied.
It is safe to use long screws for this product.
When using long screws, the two bottom screws may come
loose, but the top two will remain tight in place, so it will not
fall off the wall.
1
■
Choose from among alternatives
Viewing Mode
Display the On-Screen Menu
Changed
■
Adjust using the slide bar
(varies according to the input signal)
Backlight 85
Brightness +5
■
Go to the next screen
Auto Tuning
Displays the next screen
■
To reset the settings
Reset to Defaults
• To reset the picture settings only
• To reset the sound settings only
■
To initialize all settings
Shipping Condition Access
Select
Displays the next screen
OK
WATCHING TV
1
Turn on the TV
• Main power On / Off switch should be On.
2
Select TV mode
OK
3
Store or Access
Change (required by some functions) Select a channel
up
down
or
• If one or two digital channel number, e.g. 39
up
down
OK (quick changes the channel)
NOTE:
• When the TV is switched to standby, there will be a clicking
sound after a short delay.
This is normal.
5
Wall Mounting Inserts VESA standard SIDE CONTROLS & TERMINALS
interface
32" 200 x 200 mm
42" 400 x 200 mm
Turn the LCD TV ON/OFF.
Mounting screws
• Select channel in sequence.
measurements:
• Move On-Screen Menu cursor
M6 x 4
up/down.
Please contact your nearest Panasonic dealer to purchase
• Adjust volume up/down.
the recommended wall-hanging bracket. For additional details,
• Adjust the value of the selected item
please refer to the wall-hanging bracket installation manual.
on On-Screen Menu.
Screw for fixing the TV onto the
wall-hanging bracket • Open or Close the On-Screen Menu.
(not supplied with the TV) • Return to previous Menu.
Depth of screw:
32" Minimum: 8.0 mm
32" Maximum: 11.0 mm • Pop-up AV input list.
• Confirm selections and choices.
M6
42" Minimum: 10.0 mm
42" Maximum: 18.0 mm
(View from the side)
Customer assumes liability if mounting the unit themselves
z
or if a Panasonic bracket is not used. Any damage resulting
from not having a professional installer mount your unit will
void your warranty.
Always be sure to ask a qualified technician to perform any
z
necessary set-up. Incorrect fitting may cause equipment to
Connect a headphone (stereo) to this
fall, resulting in injury and product damage.
jack and the TV speaker out will be
z Do not mount the unit directly below ceiling lights (such as
mute.
spotlights, floodlights or halogen lights) which typically give
off high heat. Doing so may warp or damage plastic cabinet
parts.
z Take care when fixing wall brackets to the wall. Always
ensure that there are no electrical cables or pipes in the wall
before hanging the bracket. When using an angled-type wall
BACK TERMINALS
hanging bracket, please ensure that there is sufficient space
for the connecting cables so that they do not press against
the wall when the TV is tilted forward. For safety reasons,
remove units no longer being used from their wall-mounted
locations.
PARTNAMES AND FUNCTIONS
FRONT
Remote Control
Signal Receiver Power LED Power LED
Green: Power on
Red: Standby
CARE FOR USING LCD TV
• Do not bump or scratch the panel surface as this causes
flaws on the surface of the screen.
• There may be some tiny black points and/or bright points
on the SCREEN. These points are normal.
Each button on the control panel has the same function with its
counterpart on the remote control.
2
APPENDIX
Normal
SPECIFICATIONS
SPECIFICATIONS
Maximum Visible Range
32" : (H)698×(V)392 mm
42" : (H)930×(V)523 mm
Picture Resolution
32" : 1366 X 768 pixels
42" : 1920 X 1080 pixels
Moved Voltage
AC 110-240V 50/60Hz
Power rating
32" : 97W
42" : 172W
Moved
Stand by condition
0.6W
Colour System
PAL/NTSC3.58/NTSC4.43/SECAM
Access
Sound System
D/K, I, M, B/G
Channel Coverage
VHF Low band: 48.25 to 144.25MHz
VHF High band: 144.25 to 420.25MHz
UHF band: 421.25 to 860.25MHz
Sound specialty
Maximum Output Power
32" : 5W+5W(10% THD)
42" : 8W+8W(10% THD)
Input terminals
PC 1
HDMI/DVI 1
Other
RF 1
USB 1
AV/COMPONENT 1
AV 1
AV/COMPONENT Audio 1
AV 1
AV 2
AV Audio 1
AV 1
AV 3
AV Audio 1
Output terminals
Audio out HeadPhone
1 1
Dimensions
32"
(Including Pedestal) :
779(W) x 545(H) x 250(D)mm
(Without Pedestal) :
779(W) x 494(H) x 107(D)mm
42"
(Including Pedestal) :
1020(W) x 677(H) x 270(D)mm
(Without Pedestal) :
1020(W) x 625(H) x 106(D)mm
Net Weight(Including Pedestal)
32" : 10 kg
42" : 14.5 kg
Panasonic Corporation
Operating Environment
Temperature: 0°C to 40°C
Web site: http://panasonic.net
Humidity: 20 % to 80 %
• Specifications are subject to change without notice.
© Panasonic Corporation 2012
• The On-Screen Menu and figures in this manual may differ
slightly from the product.
6
REMOTE CONTROL BATTERIES
INSTALLATION
1
Remove the battery compartment cover.
2
Insert two size AAA batteries
(1.5V) according to "+" and "-"
polarity markings inside the battery
compartment.
3
Close the battery compartment cover.
To insure safe operation, please observe the following
precautions:
• Replace two batteries at the same time.
AV3
• Do not use a new battery with a used battery.
• Avoid contacting with water or liquid.
• Do not expose the Remote Control or Batteries to
moisture, or heat such as sunshine,fire or the like.
• Do not drop the Remote Control.
• If a battery has leaked on the Remote Control, carefully
wipe case clean and install new batteries.
• Risk of explosion if battery is replaced by an incorrect
type.
• Dispose of used batteries according to the instructions.
SUPPORTED FILE FORMAT IN MEDIA PLAYER
Image resolution
Format File extension Details / Restrictions
(pixel)
EXIF*1 standard
JPEG .jpg 1X1 to 8400 X 6300 Sub-sample : 4:4:4, 4:2:2, 4:2:0
Both baseline and progressive JPEG are supported.
*1 Exchangeable Image File - image file format used by digital cameras.
Music
Codec File extension
MP3 .mp3
Note:
●Support USB 2.0 Type A connector. (DC 5V, MAX 500mA)
●Maximum memory size up-to 32GB.
●Support file system: FAT16, FAT32.
●Some files may not be played back even if they fulfill these conditions.
●Some USB devices or USB HUB may not be used with this TV.
●USB HDD formatted by PC is not supported in Media Player
Customer's Record
The model number and serial number of this product may be found on its rear panel. You should
note the model number and the serial number in the space provided below and retain this book,
plus your purchase receipt, as a permanent record of your purchase to aid in identification in the
event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
Printed in China
3
