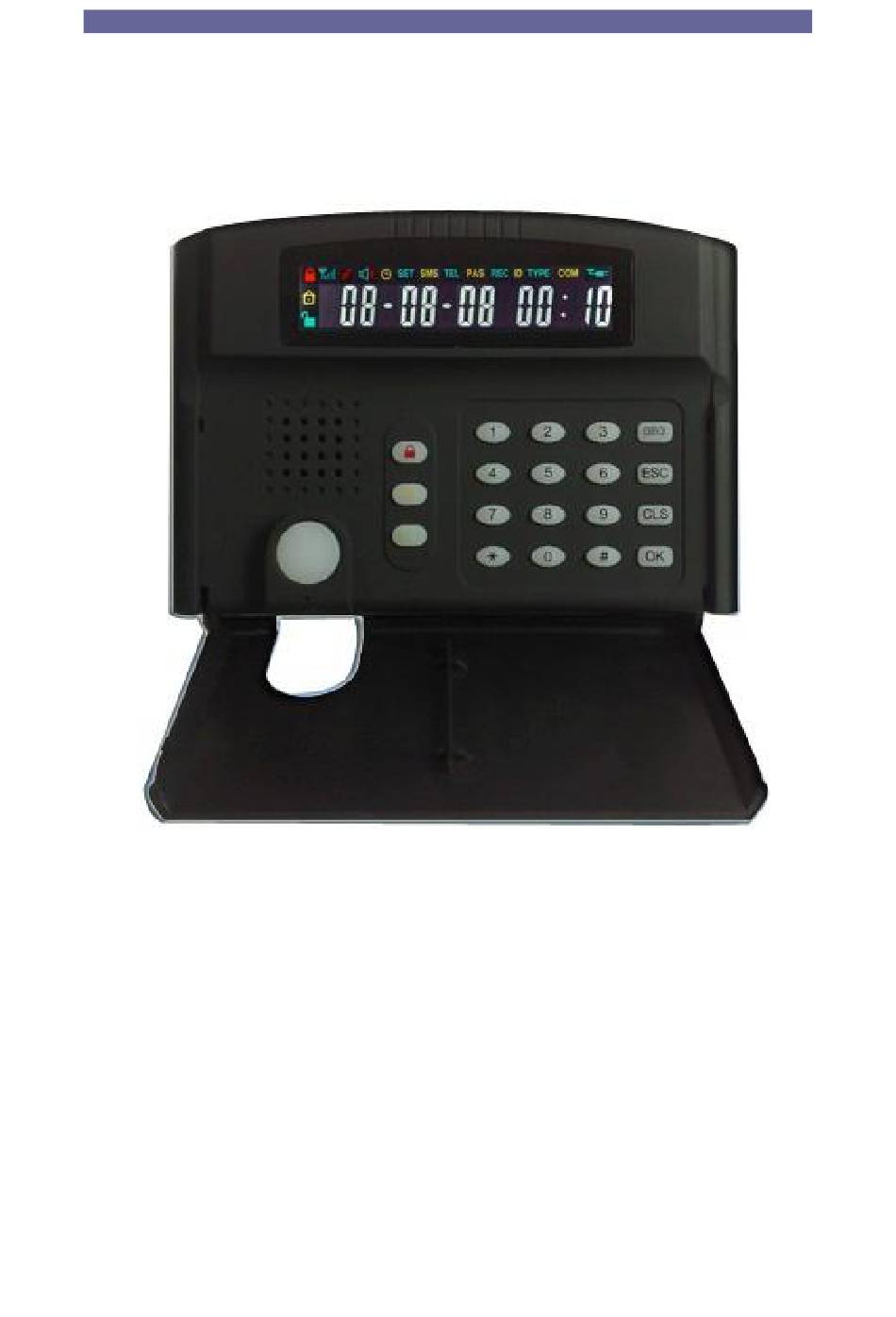

  • Page 1 PATENTED DESIGN GSM alarm user manual- GSM alarm User Manual Ver 1210 2010-7-6...
  • Page 2 PATENTED DESIGN GSM alarm user manual- Dear users, Thank you for purchasing our products. Please read through this manual before using this product so as to operate the product properly. The GSM alarm system adopts the newest GSM network and Digital Signal Processing technology, and is widely used in security field.

  • Page 3: Table Of Contents

    PATENTED DESIGN GSM alarm user manual- Contents I. Instruction..........................4 Ⅱ .Installation………… ..………........……......…..…..5 2.1 Alarm Host’s section figure....................5 2.2 Installation …….........…………........………………...6 2.21 Insert a valid SIM into the alarm host 2.22 Wired zooms 2.23 Main host with tamper alarm 2.3 Run Ⅲ...

  • Page 4: Instruction

    PATENTED DESIGN GSM alarm user manual- 5.1 Arm/partial arm/disarm by remote controller……………..........…..11 5.11 Disarm by keyboard on the host………………………………………………..………11 5.2 Emergency alarm…………………………………............….11 5.3 External power failure alarm……………….........…...……….11 5.4 Alarm and handle……………..........…………………..……….11 Ⅵ . Operation Cautions……………..........…..……..……..……12 Ⅶ . Encode the wireless detectors and remote controller…...........…1 Appendix: Operation guideline…………………………............13 1.

  • Page 5: Ⅱ .Installation

    PATENTED DESIGN GSM alarm user manual- 13. Connect with the alarm center through GSM network. Specification a) GSM GSM frequency: 900/1800MHz or 850/1900MHz b) Alarm method: adopts SMS data transmission and voice platform c)Stand-by power consumption ≤0.6W b) External power failure alarm e) Alarm response time Less than 8s (GSM in normality) f) The volume of siren...
  • Page 6 PATENTED DESIGN GSM alarm user manual- Wireless Recording status indicator & Record signal-receiving button indicator Tamper switch Switch Power connector of Wired zone connector the host...

  • Page 7: Insert A Valid Sim Into The Alarm Host

    PATENTED DESIGN GSM alarm user manual- 2.21 Insert a valid SIM into the alarm host GSM wireless alarm system adopts SMS and voice data transmission platform of GSM network to send control command and receive alarm remotely. Before installation, make sure the SIM card is valid and turn off the power, eject the SIM card holder and finish the installation after inserting the holder back with SIM card.

  • Page 8: Set/Delete Three Phone Numbers For Auto-Dialing Alarm

    PATENTED DESIGN GSM alarm user manual- Note: Serial number can only be 1, 2, 3 and the number “1” is the first mobile phone number. For SMS alarm. The phone No. must be less than/in 20 numbers. b) Delete the mobile phone number Input: serial number﹢“OK”, then you can cancel the mobile phone numbers.

  • Page 9: Set/Cancel The Time Of Arm/Disarm/Partial Arm

    PATENTED DESIGN GSM alarm user manual- 3.1.8 Set/cancel the time of arm/disarm/partial arm a) Timing arm In arming status, press SET, when “SET, ” appears on the LCD display, then Input: * + time (hour/ minute) + OK. Example: Set 16:08 as the arm time, input * + 1608 + OK, then you will hear “di, di” sound for confirmation.

  • Page 10: Set Three Phone Numbers For Auto-Dialing Alarm

    PATENTED DESIGN GSM alarm user manual- Send SMS: 1234DD11388888888 Note: The serial number shows alarm sequence (must be 1, 2, and 3). 4.2 Set three phone numbers for auto-dialing alarm Input SMS: 4 numbers for password + DD + serial number + phone number. Example: Set 01088888888 as the first phone number for auto-dialing alarm.

  • Page 11: Inquire Host's External Power Status

    PATENTED DESIGN GSM alarm user manual- 4.8 Inquire host’s external power status Input SMS: 4 numbers for password + W2 Reply SMS: The host’s external power status Ⅴ. Usage 5.1 Arm/disarm by remote controller a) Arm: Press “ ” on remote controller, the host will make “di” sound, the LCD display is on, “ ” is twinkling.
  • Page 12 PATENTED DESIGN GSM alarm user manual- 1. Make sure the equipments have no water. 2. Install the system in a hidden place. 3. Turn off the power supply before insert/take out the SIM card. 4. Connect the power supply firmly and provide good heat dissipation. 5.
  • Page 13 PATENTED DESIGN GSM alarm user manual- Gas detector Emergency button Remark: “1”…….Request High level N connect with H “0”……..Request Low level N connect with L “2”……..No connect “NC”…...No request Appendix Operation Guideline By following steps, you can operate it easily though it is the first time to use this product. 1.
