Special Tomato Small MPS 79 Series Assembly Manual

Small MPS
Mobile Floor Base
ASSEMBLY MANUAL
Helpful Tools
large phillips screwdriver
crescent wrench
allen key
Included Parts:
> A. Wooden Sides
> B. Metal Seat Pan
> C. Metal Back Bracket
> D. Front Caster Brackets (2x)

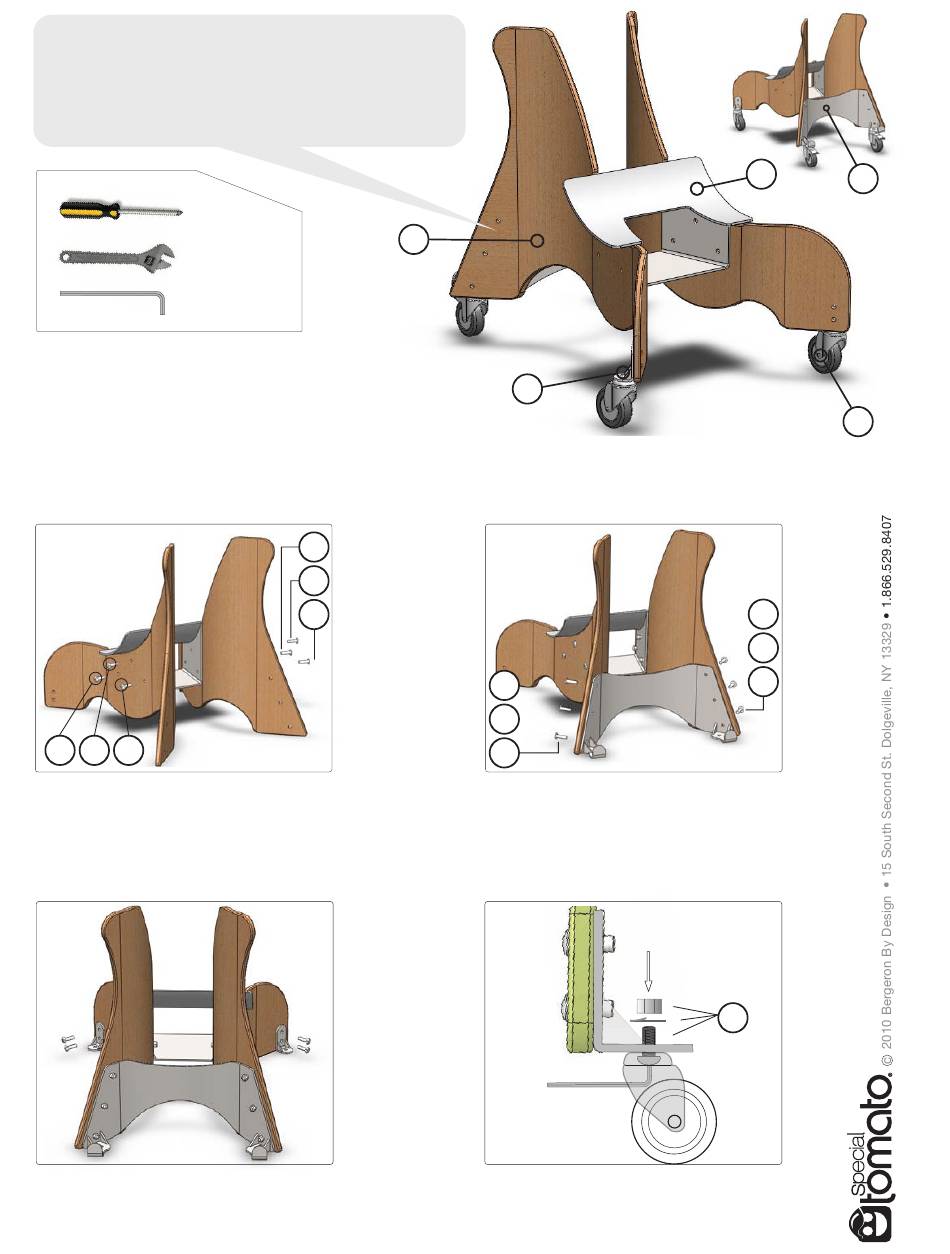

Step 1:
Attach Seat Pan
3 2 1
Attach (B) metal seat pan to (A) wooden sides
with (6x) bolts. Install bolts in numeric order.
Finger-tighten bolts until snug.
Step 3:
Attach Front Brackets
Attach (D) front brackets to (A) wooden sides
with (4x) bolts. Finger tighten bolts first, then
securely tighten with wrench.
(Important : attach bracket to outside as shown)
A
Model# 79XXXXXX
Revision 03/13
UMMPSSMB03-13LIT
> E. Casters (4x) (2 with Brake)
> F. Bolts (16x)
> G. Nuts (16x)
> H. Caster Nuts, Bolts, Washers (4 ea)
6
5
4
D
Step 2:
Attach Rear Bracket
12
11
7
Attach (C) metal back bracket to (A) wooden
sides with (6x) bolts. Finger tighten bolts first,
then securely tighten the rear bracket bolts and
seat pan bolts with wrench.
Step 4:
Attach Casters
Install brake casters in the rear for stability. Use
allen key to insert bolt up through the caster
and bracket. Tighten nylon nuts with a crescent
wrench. Note: Maintain tight screws.
B
C
E
10
9
8
H
