Summary of Contents for Observator OMC-160-3

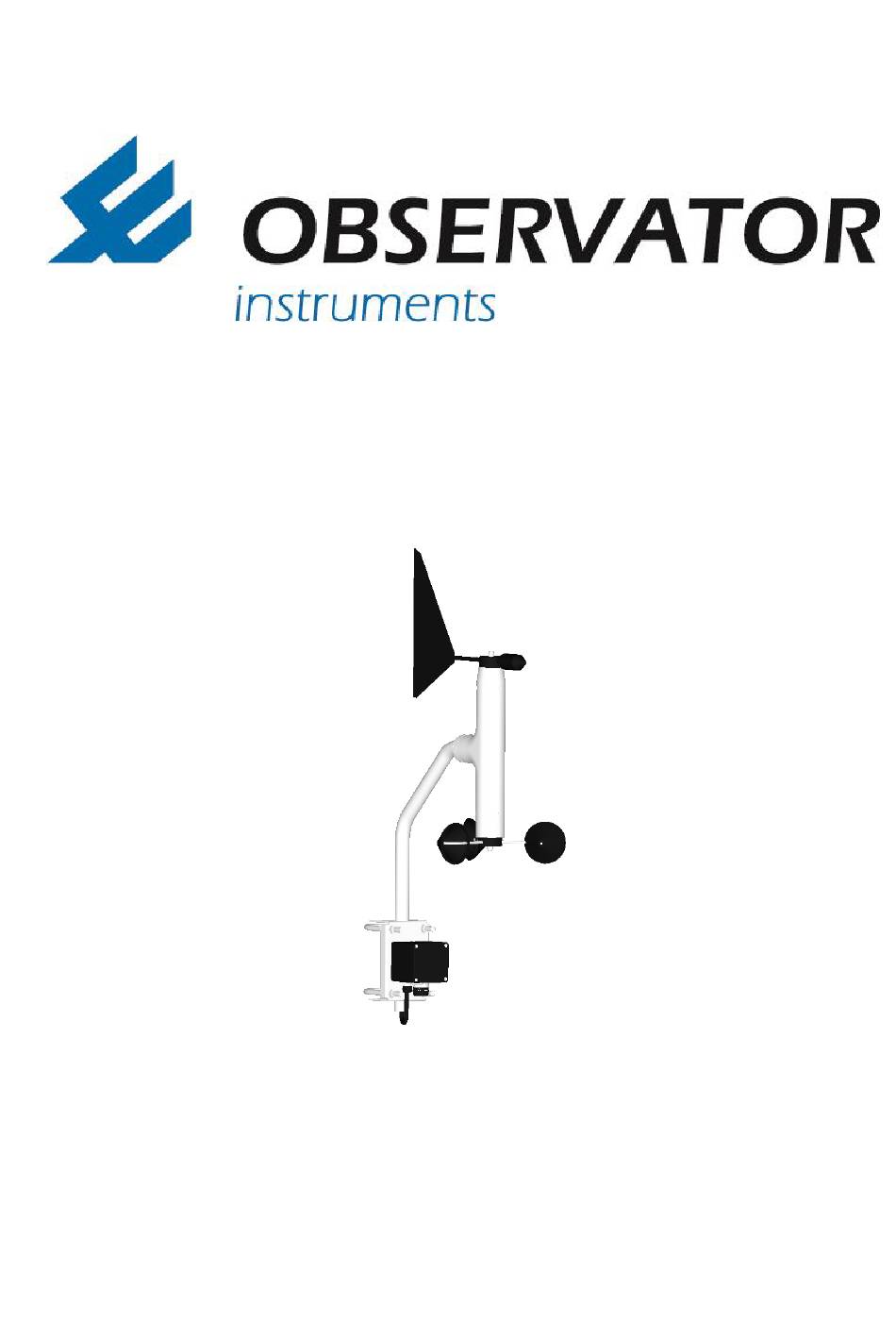

- Page 1 OMC-160-3 OMC-160-3 Anemometer Manual Version 3.2 - November 2017 Author: Observator Instruments...
-
Page 2: Omc-160-3 Manual
Revisions: 2.04 (November 2013) previous versions OMC-160-2 (May 2017) OMC-160-3 introduction (August 2017) OMC-160-3 reviewed manual (November 2017) Update specifictions OMC-160-3 Manual Page 2... -
Page 3: Table Of Contents
Handling, transportation and storage ....................22 10.1 Handling ............................ 22 10.2 Long term storage ........................22 10.3 Reshipping the instrument ......................22 Advanced configuration ........................23 Dimensional Drawing ........................24 EU Declaration of Conformity ......................25 OMC-160-3 Manual Page 3... - Page 4 Page intentionally left blank OMC-160-3 Manual Page 4...
-
Page 5: Introduction
The sensor is often mounted in harsh conditions of the marine and offshore environment and it has proven to be robust and reliable over the years. The OMC-160-3 continues the robust build quality improved with the latest technology, which will make it even more reliable and easier to commission. -
Page 6: Safety
For correct functioning the Observator OMC-160 Anemometer must be installed and commissioned according installation & commissioning instructions by a qualified engineer. The Observator OMC-160 Anemometer has moving parts, which can rotate fast during strong winds. Keep clear of the cup and vane during strong winds! The Observator OMC-160 Anemometer is usually installed at height. -
Page 7: Description
3 Description 3.1 General description The Observator OMC-160-3 is a combined wind speed and direction meter using high accurate non- contact sensors. It uses a rotary cup with 3 cups for speed and a stainless steel balanced vane for direction measurement. It has a NMEA output signal and be combined with all Observator display and MeteoLlink systems. -
Page 8: Field Use Examples
4.2 Location of the sensor Ensure that the OMC-160 anemometer will be mounted on a location where the wind that is free from turbulence e.g. caused by obstacles nearby. Plan the OMC-160 anemometer in a free area as far as OMC-160-3 Manual Page 8... -
Page 9: Site Preparation
Place the cup unit and mounting materials on the lower shaft in the following sequence: 1) Cup unit 2) Spring washer 3) Capped nut Guide to Meteorological Instruments and Methods of Observation, WMO No. 8, 6th Edition, World Meteorological Organisation, Geneva, Switzerland, ISBN 978-92-63-10008-5 OMC-160-3 Manual Page 9... - Page 10 OMC-160-3 Manual Page 10...
-
Page 11: Electrical Installation
The OMC-160 anemometer is provided with a junction box to connect the sensor to the field cabling. The junction box provides a M20 gland for the power & signal cable. If the OMC-160-3 heating option is fitted, an additional M20 gland is provided for a separate cable for 24 V heater power supply. -
Page 12: Alignment Led's
Direction within 355 - 359 degrees 4.6.3 Status LED’s Table 3: Lower LED’s on juntionbox PCB Speed sensor OK Speed sensor fault Direction Sensor OK Direction sensor fault Flashes at NMEA output rate No NMEA output OMC-160-3 Manual Page 12... -
Page 13: Commissioning
The readings should be reasonable. 5) Check the wind speed reading. Table 4 can be used for estimation of the actual wind speed. The reading should be reasonable. OMC-160-3 Manual Page 13... - Page 14 56-63 28.5-32.6 Violent storm Exceptionally high waves (11 Widespread damage to m), visibility poor. structures. >32.6 Hurricane 14 m waves, air filled with Severe structural damage to foam and spray, visibility bad. buildings, wide spread devastation. OMC-160-3 Manual Page 14...
-
Page 15: Maintenance
2 years. If required, you can adjust this interval. Calibration of wind speed sensor is only possible in a wind tunnel. Observator Instruments B.V. provides calibration services. For address details see chapter 9. Always include the cup unit and the vane unit when the OMC-160 anemometer is shipped for recalibration. -
Page 16: Opening And Closing The Anemometer
6.4 Opening and closing the anemometer The Observator OMC-160 anemometer is designed for low maintenance. The construction is entirely made of non-corrosive materials and all components are conservatively rated. The only components that are likely to require replacement due to normal wear are the precision ball bearings. - Page 17 8. Carefully tap out the bearing assembly from the outside in using a suitable driver (dia 18mm+/-0.5) and hammer or press. 9. Remove small circlip 10. Use a pulley or press to remove bearings from shaft. OMC-160-3 Manual Page 17...
- Page 18 When the bearings are renewed, care should be taken not to apply excessive force on the new bearings. When re-installing the complete bearing housing with the sensor PCB’s, care should be taken that the internal wiring is properly attached, and not touching any moving part. OMC-160-3 Manual Page 18...
-
Page 19: Data Protocol
8. Software revision (actual firmware revision id of the unit) 9. Hardware revision (n/a, blank) 10. Sequential message identifier (0) All parameters except 6 & 8 will be identical for each OMC-160-3 wind sensor. Parameter 6 will be unique for each unit (Serial number) Example Strings $WIMWV,90.0,R,5.0,N,A*1F... -
Page 20: Specifications
Pole-mounting bracket with U-bolts (M10) for mounting on cylindrical or square pole Clamping range 35 to 65 mm Weight Approx. 5 kgs. excluding cable Packing dimensions 1050 x 510 x 150 mm Packing weight 10 kgs. OMC-160-3 Manual Page 20... -
Page 21: Support, Service And Warranty
9 Support, service and warranty Support, service, and warrantee on Observator Instruments equipment are provided by the company where the product was purchased. Make sure that you have the following information available when contacting Type and model of equipment ... -
Page 22: Handling, Transportation And Storage
10.3 Reshipping the instrument Whenever the OMC-160-3 anemometer is shipped, e.g. for calibration or repair, it should be shipped in the original Styrofoam packing. If this is no longer available on site, replacement packing can be ordered from Observator Instruments or one of their world-wide agents or resellers. -
Page 23: Advanced Configuration
Connect to the NMEA output of the sensor (terminal 3 & 4) and setup the terminal (4800*,8,n,1). Power cycle the sensor and press [ESC] within 5s. The main menu should appear: ================================= OMC-160-3 Main Menu ================================= Version 00.90 B006 =================================... -
Page 24: Dimensional Drawing
12 Dimensional Drawing OMC-160-3 Manual Page 24... -
Page 25: Eu Declaration Of Conformity
13 EU Declaration of Conformity OMC-160-3 Manual Page 25...
