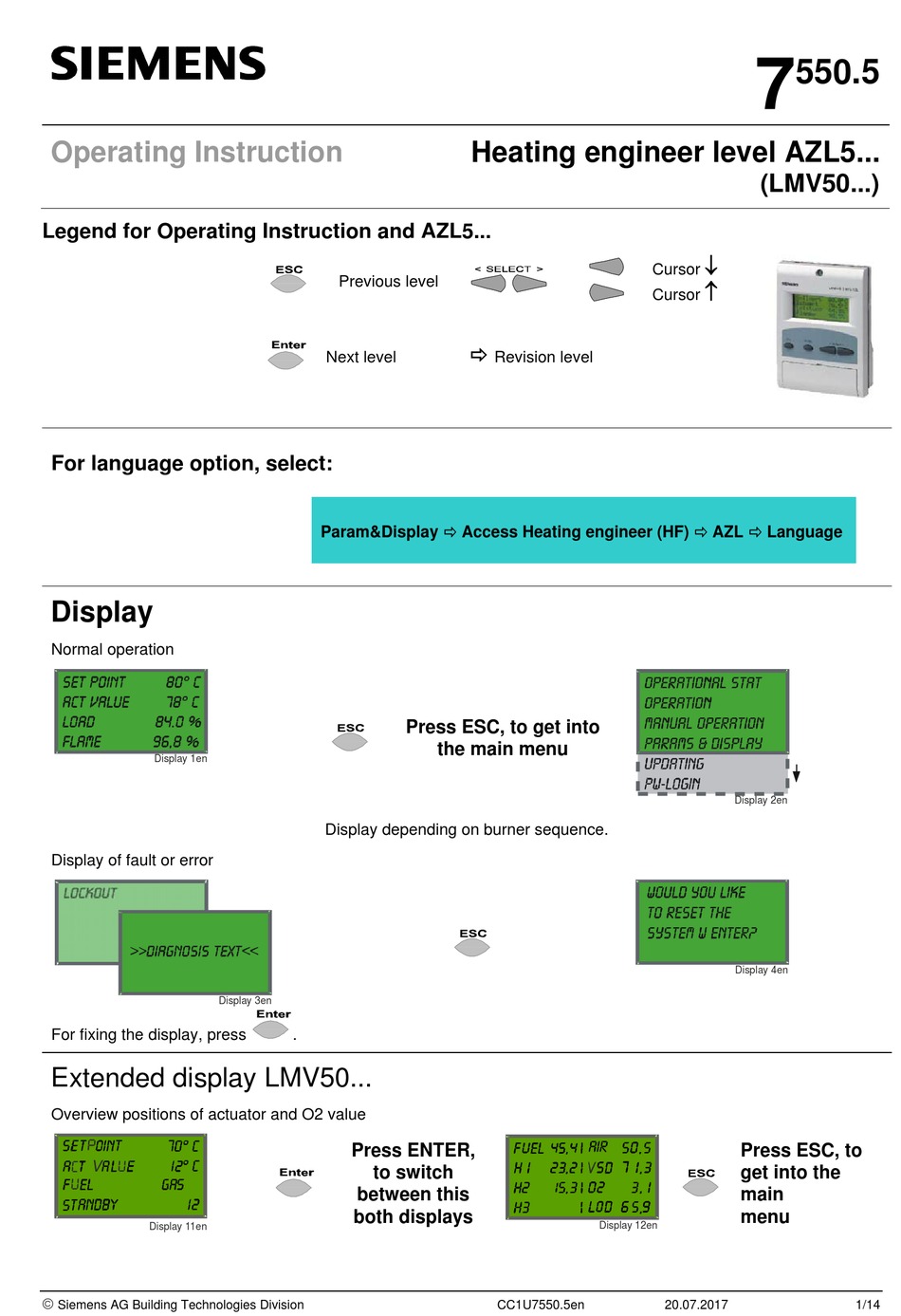

Operating Instruction
Legend for Operating Instruction and AZL5...
For language option, select:
Display
Normal operation

Display 1en
Display of fault or error

For fixing the display, press
Extended display LMV50...
Overview positions of actuator and O2 value

P
C V
U
U
Display 11en
Siemens AG Building Technologies Division
Previous level
Next level
Param&Display  Access Heating engineer (HF)  AZL  Language
Display depending on burner sequence.
Display 3en
.
Press ENTER,
to switch
between this
both displays
Heating engineer level AZL5...
Revision level
Press ESC, to get into
the main menu
CC1U7550.5en
7
(LMV50...)
Cursor
Cursor

Display 2en
Display 4en
Press ESC, to
get into the
main
menu
Display 12en
20.07.2017
550.5
1/14

Advertisement

   Also See for Siemens AZL5 series

   Related Manuals for Siemens AZL5 series

   Summary of Contents for Siemens AZL5 series

  • Page 1

    Extended display LMV50... Overview positions of actuator and O2 value   Press ENTER, Press ESC, to to switch get into the between this main both displays menu Display 12en Display 11en  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 1/14...

  • Page 2

    Eighth last fault Fault time   Diagnostic code Error code Program phase Start number Display 6en Load in % Current type of fuel For fixing the display, press Selection of error history  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 2/14...

  • Page 3

    Setting a curvepoint:   Display 10en Display 9en Menu level 1 Menu level 2 Menu level 3 Menu level 4 Menu level 5 Menu level 6 OperationalStat NormalOperation Status/Reset FaultHistory LockoutHistory Alarm act/deact  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 3/14...

  • Page 4

    Curr Flow Rate Volume Gas Volume Oil Volume Gas R Volume Oil R Reset Date Gas Reset Date Oil LockoutCounter O2 Module FlueGasTemp BurnerID OptgModeSelect InterfacePC GatewayBASon GatewayBASoff Gateway status Type of Gateway  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 4/14...

  • Page 5

    Menu level 1 Menu level 2 Menu level 3 Menu level 4 Menu level 5 Menu level 6 ManualOperation SetLoad Autom/Manual/Off  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 5/14...

  • Page 6: Menu Level 1 Menu Level

    DelayLackGas TimesGeneral AlarmDelay DelayStartPrev PostpurgeLockout MaxTmeStartRel Configuration ConfigGeneral AlarmStartPrev Standby Error NormDirectStart OilPumpCoupling IgnOilPumpStart ForcedIntermit Skip PrepurgeGas ContinuousPurge ConfigIn/Output RotSpeed PS on RotSpeed PS off Config X5-03 Start/PS-Valve ConfigFlameDet ReacExtranLight FlameSignal  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 6/14...

  • Page 7: Menu Level

    IgnitionPos IgnitionPosGas IgnitionPosAir IgnitionPosAux1 IgnitionPosAux3 IgnitionPosVSD PostpurgePos PostpurgePosGas PostpurgePosAir PostpurgePosAux1 PostpurgePosAux3 PostpurgePosVSD ProgramStop ResetIgnitPos IgnitionPosGas IgnitionPosAir IgnitionPosAux1 IgnitionPosAux3 IgnitionPosVSD CurveParams LoadLimits MinLoadGas MaxLoadGas Load mask out LoadMaskLowLimit LoadMaskHighLim StartPoint Op OilSettings  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 7/14...

  • Page 8: Menu Level

    CurveParams Curve Settings LoadLimits MinLoadOil MaxLoadOil Load mask out LoadMaskLowLimit LoadMaskHighLim StartPoint Op Autom/Manual/Off Times OperatRampMod OperatRampStage TimeNoFlame ShutdownBehav ProgramStop LoadController ControllerParam ContrlParamList StandardParam P-Part (Xp) I-Part (Tn) D-Part (Tv) MinActuatorStep  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 8/14...

  • Page 9: Menu Level

    Ext Inp X62 U/I Ext MinSetpoint Ext MaxSetpoint Analog Output OutValuSelection CurrMode 0/4mA Scale20mA perc Scale20mA temp Scale20mA press Scale20mA angle Scale 0/4mA Adaption StartAdaption AdaptionLoad SW Version Times Sum/WinterTime Time EU/US Language DateFormat  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 9/14...

  • Page 10: Menu Level

    SerialNumber ParamSet Code ParamSet Vers 2 GasActuat(Oil) ProductionDate SerialNumber ParamSet Code ParamSet Vers 3 OilActuator ProductionDate SerialNumber ParamSet Code ParamSet Vers 4 AuxActuator ProductionDate SerialNumber ParamSet Code ParamSet Vers 6 AuxActuator  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 10/14...

  • Page 11

    ParamSet Vers SW Version O2 Module Configuration FlueGasTempSens MaxTempFlGasGas MaxTempFlGasOil Process Data FlueGasTemp ProductID ProductionDate SerialNumber ParamSet Code ParamSet Vers SW Version Flue Gas Recirc. FGR-Mode FGR-sensor actTmpFGR-sensor ThresholdFGR Gas DelaytimeFGR Gas  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 11/14...

  • Page 12

    OilStage2 OilStage3 TotalHoursReset StartCounter GasStartCount OilStartCount TotalStartCountR TotalStartCount Reset GasStartCount OilStartCount TotalStartCountR Fuel Meter Curr Flow Rate Volume Gas Volume Oil Volume Gas R Volume Oil R Reset DateGas Reset DateOil  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 12/14...

  • Page 13

    LMV5x  AZL AZL  LMV5x Load_SW_from_PC PW Login PW Logout SafetyCheckFunct LossFlameTest SLT Test SLT-Testload Mod SLT-Testload Stg Use of TÜV test function must be carried out by qualified staff!  Siemens AG Building Technologies Division CC1U7550.5en 20.07.2017 13/14...

  • Page 14

     Alternative to the tables, a backup for offline operating mode can be stored and send via the ACS450 software.  2017 Siemens AG Building Technologies Division, Berliner Ring 23, D-76437 Rastatt Subject to change!  Siemens AG Building Technologies Division CC1U7550.5en...
