Audio Engineering Associates SMT-2 Manual

Audio Engineering Associates
AEA SMT-2

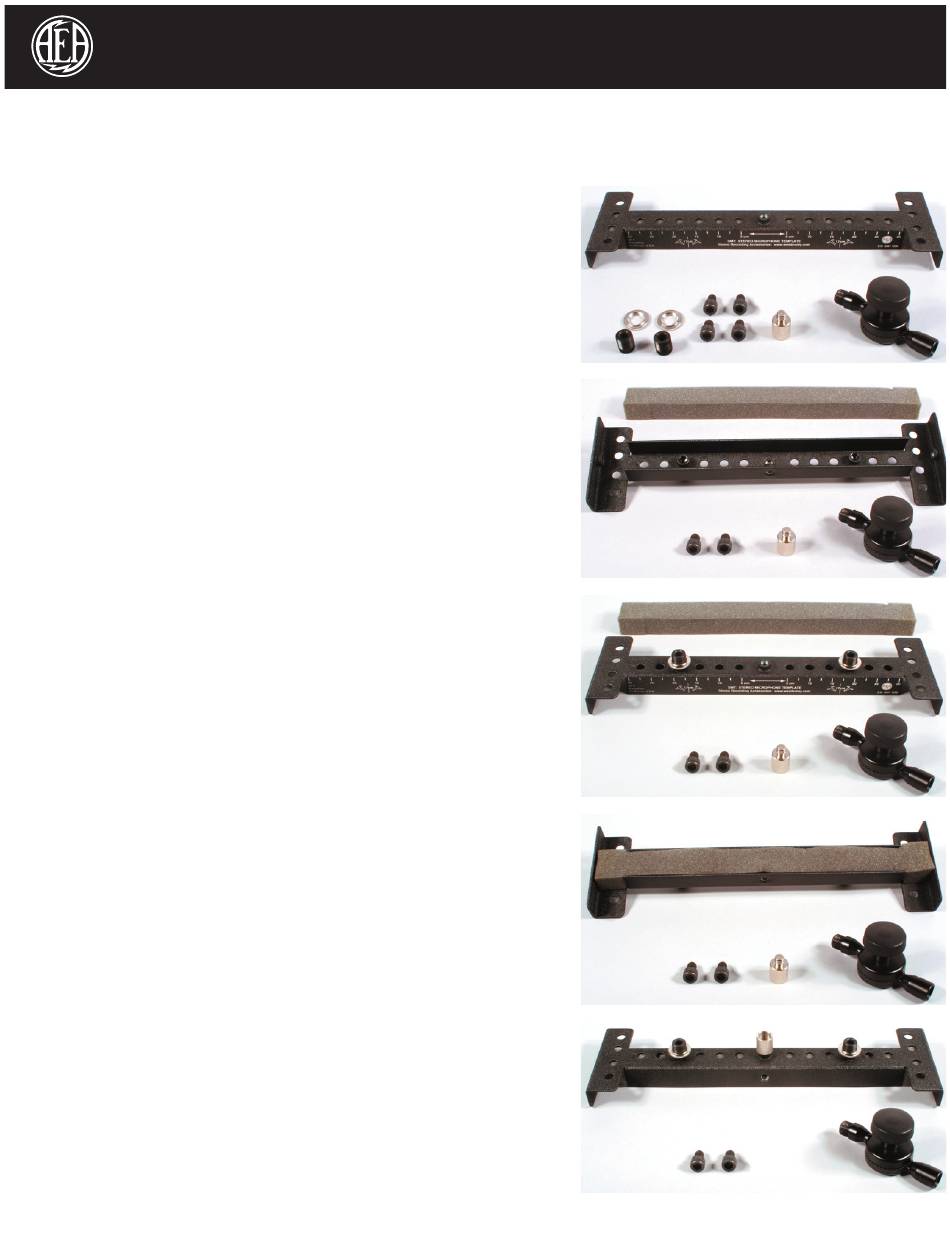

The AEA SMT-2 includes the following parts as shown:
1.
1 SMT bar
2 TA-2 adapters from female 3/8-16 (EU) to male 5/8-27 (US)
2 Locking rings
4 3/8-16 (EU) socket cap screws
1 TA-3 adapter from female 5/8-27(US) to male 3/8-16 (EU)
1 Posi-Lok adjustable angle adapter
2. Remove the foam from the bar and insert the socket cap
screws through the holes. To use with American 5/8-27 mic
stand threads, use the TA-2 adapters. In this view the heads of
the socket cap screws are visible.
3. For American standard stand adapters, tighten the TA-2s
down to the bar. For European microphones the socket cap
screws (3/8-16 threads) can be used directly.
4. Reinsert the vibration damping foam into the channel.
5. For American stands, attach the TA-3 to the bar through one
of the 3/8" PEM nuts, which are located in the middle and at
the end of each bar. The bar can now be connected to a stand
or boom either directly or using the Posi-Lok adapter. For
European applications one of the unused adapters can be used
to adapt the Posi-Lok to a European 3/8-16 thread. There are
two extra 3/8-16 socket cap screws that you will only need in
the event that you later purchase a pair of 4038's from AEA
and need to mount a pair of AEA 4038SA's to this bar.
Stereo Microphone Template Kit
