BEA 80.0068.03 Parts List

BEA 80.0068.03 Parts List

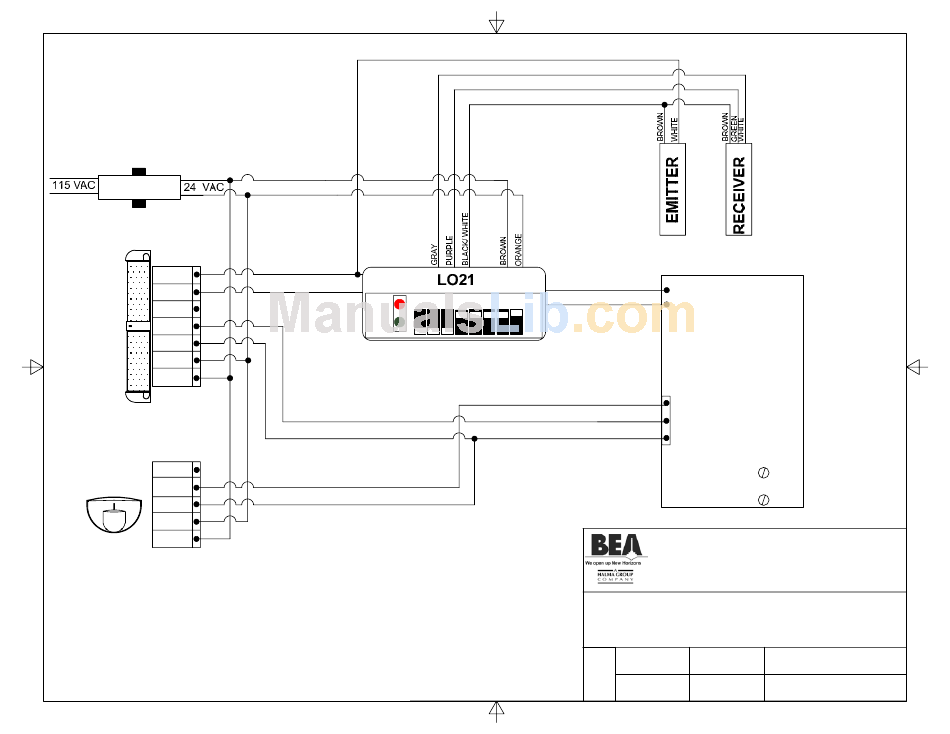

Bea inc. doromatic astro-swing with commander 1,2 systems (l021) parts list
Hide thumbs

Advertisement

Quick Links

Download this manual
24 V
TRANSFORMER
DATA + 7
blue
DATA - 6
brown
BODY
N.C.
5
GUARD
N.O.
4
green
COM
3
white
POWER 2
black
POWER 1
red
N.C.
5
EAGLE
N.O.
4
green
COM
3
white
POWER 2
black
POWER 1
red
NOTES: 1) ASTRO-SWING CONTROL BOX MUST BE SET TO CARPET FUNCTION.
2) IF BODYGUARD HAS DOM INTERFACE CIRCUIT BOARD, IT MUST BE REMOVED.
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
RED/ WHITE
WHITE
LO21 DEFAULT DIP SWITCHES
1 THRU 5 LOCKOUT TIME
RED
GREEN
- +
+
RED
_
Master Motor (Voltage)
BLACK
OFF
ON
ASTRO-SWING
CONTROL BOX
YELLOW- ACTIVATION
BLUE- SAFETY
GRAY- COMMON
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX:
(412) 249-4101
EMAIL: www.beasensors.com
TITLE: DOROMATIC ASTRO-SWING WITH
COMMANDER 1,2 SYSTEMS (LO21)
DRAWN BY:
REV BY:
SIZE:
KJG
KJG
A
SCALE:
DATE:
NONE
17 JUL 05
- +
FUNCTION
LATCH
PART NO:
80.0068.03
SHEET
1 OF 1
