BEA 80.0011.02 Parts List

24 V
TRANSFORMER
POWER 24 VAC
POWER 24 VAC
NOTE: 1) JUMPERS ARE PLACED ON J1 PINS 1&2, J2 PINS 4&5 FOR DRY CONTACTS ON RELAY OUTPUT #1.
2) PUSH PLATE, MOTION SENSOR, CARD READER MUST BE DRY CONTACT.
3) TRANSFORMER AND BRIDGE RECTIFIER VOLT/ AMPERE RATING IS DETERMINED BY CURRENT DRAW OF
ELECTRIC STRIKE.
IF AFTER TROUBLESHOOTING A PROBLEM, A SATISFACTORY SOLUTION CANNOT BE ACHIEVED, PLEASE CALL B.E.A., INC.
FOR FURTHER ASSISTANCE DURING EASTERN STANDARD TIME AT 1-800-523-2462 FROM 8AM - 5PM. FOR AFTER-HOURS,
CALL EAST COAST: 1-866-836-1863 OR 1-800-407-4545 / MID-WEST: 1-888-308-8843 / WEST COAST: 1-888-419-2564. DO NOT
LEAVE ANY PROBLEM UNRESOLVED. IF YOU MUST WAIT FOR THE FOLLOWING WORKDAY TO CALL B.E.A., LEAVE THE
DOOR INOPERABLE UNTIL SATISFACTORY REPAIRS CAN BE MADE. NEVER SACRIFICE THE SAFE OPERATION OF THE
AUTOMATIC DOOR OR GATE FOR AN INCOMPLETE SOLUTION.WEB: WWW.BEASENSORS.COM
RED
BLACK
N / O GREEN
COMMON WHITE
COM
N/O
MC-25
GRAY
3 6 RELAY 1
5
2
1 4
RELAY 2

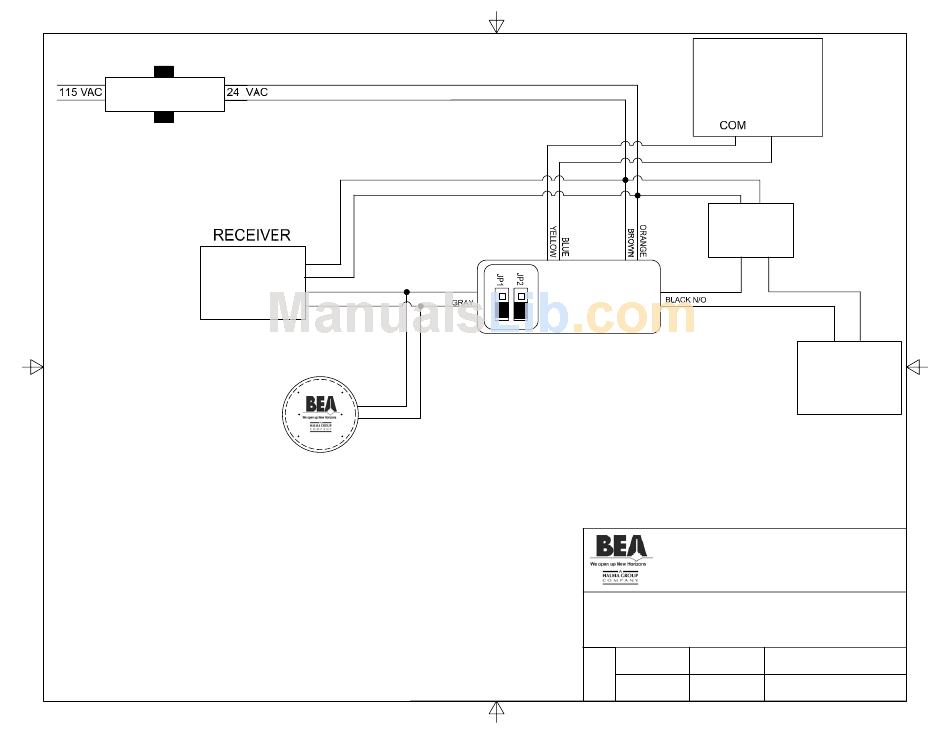

TITLE: MC-25 WITH RECEIVER, ELECTRIC
DRAWN BY:
SIZE:
KJG
A
SCALE:
NONE
AUTOMATIC
DOOR CONTROL
ACT
~ ~
BRIDGE
RECTIFIER
- +
RED COMMON
DC-ELECTRIC
100 ENTERPRISE DRIVE
PITTSBURGH, PA 15275
PHONE: (412) 249-4100
FAX: (412) 249-4101
EMAIL: www.beasensors.com
STRIKE, PUSHPLATE, LOW ENERGY
AUTOMATIC DOOR APPLICATION
REV BY: PART NO:
80.0011.02
JEG
DATE: SHEET
24 APR 2005 1 OF 1
- +
STRIKE
