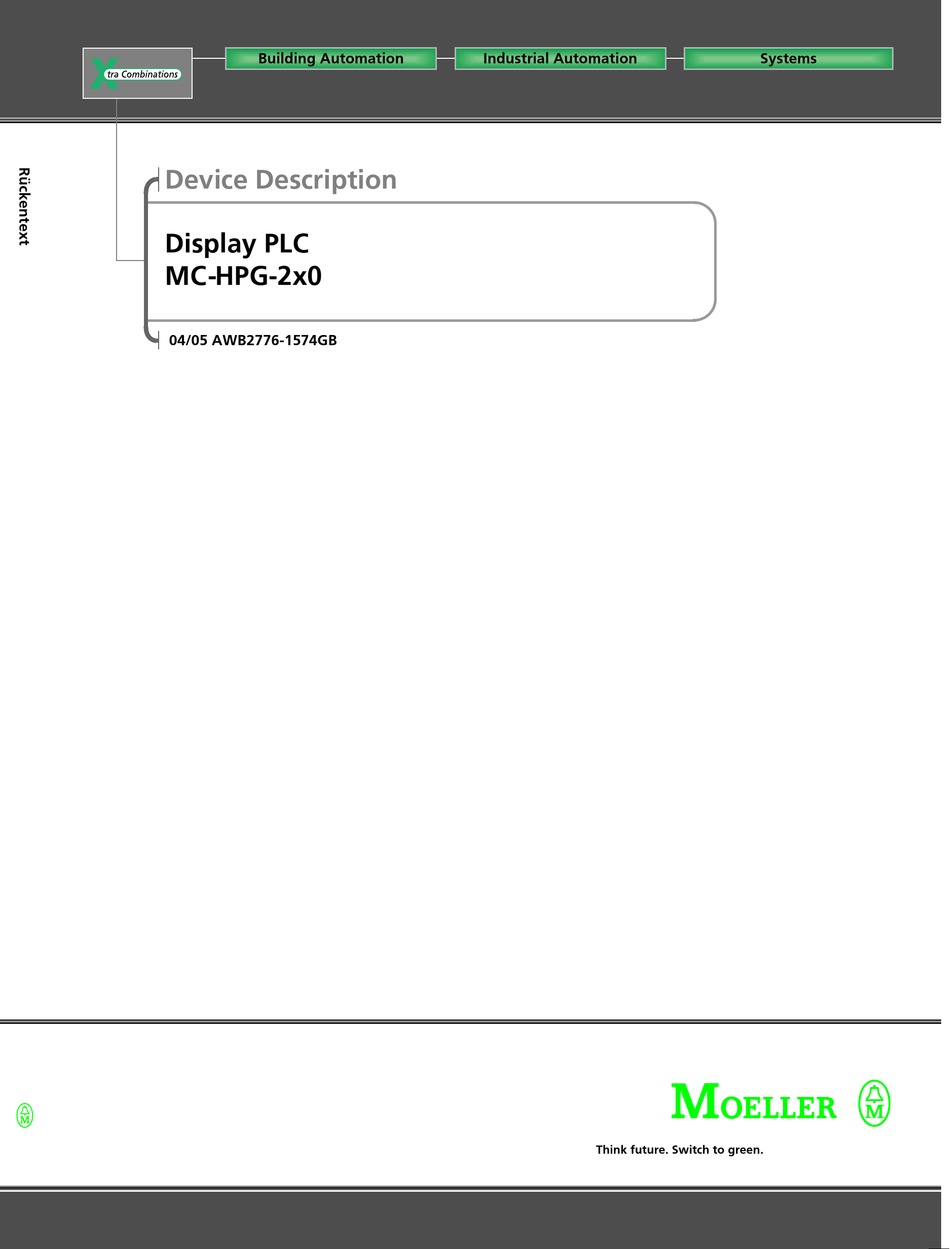

- Page 1 Building Automation Industrial Automation Systems Device Description Display PLC MC-HPG-2x0 04/05 AWB2776-1574GB Think future. Switch to green.
-
Page 2: Copyright
No part of this manual may be reproduced in any form (printed, photocopy, microfilm or any other process) or processed, duplicated or distributed by means of electronic systems without written permission of Moeller GmbH, Bonn. Subject to alteration without notice. -
Page 3: Proper Use
Warning! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Ensure a reliable electrical isolation of the low voltage for the 24 volt supply. Only use power supply units complying with • Ensure that devices cannot be accidentally restarted. IEC 60364-4-41 (VDE 0100 Part 410) or HD 384.4.41 S2. -
Page 5: Table Of Contents
Power up function test .......................35 Cleaning and maintenance of the touch screen..............35 Display, backlight, contrast ................... 37 Contrast ..........................37 Backlight ..........................37 Diagnostics......................37 Maintenance and repair ..................39 Technical data ......................41 Disposal ........................43 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 6 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Contents EU Conformity......................43 Revision history ...................... 45 Alphabetical index ....................47 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 7: Explanation Of Symbols
Information pictograms indicate the following: Important information about the product or the relevant section of the document, requiring the particular attention of the reader. The “Information” pictogram has the following meaning: Indicates important and instructional information. 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 8 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Explanation of symbols 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 9: Introduction
INFRARED TOUCH-TECHNOLOGY • IP65 FRONT The MC-HPG-2x0 series display PLC combines in one device a graphical operator panel with touch screen and a powerful compact PLC. This future- oriented device concept offers a wide range of automation and networking options. - Page 10 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Introduction 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 11: Device Versions
24 VDC 5.7“ STN color ¼-VGA (320 x 240) 24 VDC MC-HPG-230-DP ProfibusDP master The following front plate versions are available: Standard plastic front with Moeller membrane seal Front plate type 3.1 S PECIFICATIONS MC-HPG-210 Art.Nr : MC-HPG-210 PLC compactline Touch mono 5.7”... -
Page 12: Accessories
Programming cable Order No.: MC-ACP-CAPC01 Programming cabel Programming cable RS232 Null modem (serial connection) 3.3 D ESIGNING XSoft CD Moeller XSoft (on CD) Consisting of: - XSoft -> IEC61131 software - Documentation in PDF format 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 13: Features
These specifications are based on typical sizes that are used in real projects. With sufficient memory, these values can be exceeded. However, this will result in longer reaction times and screen change times. (see also Easy PageMachine (EPAM) manual) 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 14 (e.g. PLC debugging) as the visualization has the lower priority. CompactFlash™ memory media are NOT suitable for cyclical data logging due to the limited number of write cycles (normally 100,000). 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 15: Commissioning
CompactFlash™ Interface Page 16 Fuse Page 18 24VDC power supply Page 18 PS2 keyboard Page 24 CAN connector 9-pole Sub-D, male Page 21 RJ45 Ethernet Page 20 RS232 COM1 Page 24 ProfibusDP/SIO/AUX (Option) Page 24 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 16: Inserting The Compactflash
™ NSERTING THE OMPACT LASH The MC-HPG-2x0 series devices use a CompactFlash™ card for storing the runtime system, the application or data (e.g. recipes). A CompactFlash™ card with the pre-installed MC-HPG-2x0 runtime system is already inserted when delivered. To change the CompactFlash™, undo the cover of the CompactFlash™... -
Page 17: Inserting The Battery
It can be replaced in the following way: 1. Connect the device to power supply at least 10 minutes 2. Unplug the power supply (retain data will be stored at least 2 minutes) 3. Replace battery 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 18: Connecting The Power Supply
The plug connector (socket connector screw with terminals) is supplied with the device for connection. Connector assignment +24VDC GND (plug connector: Phönix MSTB 2.5/3-ST-5.08 Phönix Ord. No. 1757022) Designation Function +24 VDC +24VDC power supply Functional ground 0V power supply 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 19: Preparing The Shield Connections
Connection work should be carried out with special care in order to ensure trouble-free operation. The EMC values stated in the technical data can only be guaranteed if the cables are prepared according to the following specifications. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 20: Connecting The Programming Interface
Cables connected to the programming interface (Ethernet or serial) must be laid separately from the low-voltage cables. A detailed description of the project download is provided in the “XSoft” system description or in the appropriate software documentation. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 21: Can Interface
The CAN connector is not provided with a supply for third-party devices. A detailed description of the wiring is provided in the “XSoft” system description 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 22 (120 Ohm between Pin 2 and Pin 7 of the Sub-D connector) must be connected at the beginning and the end of each CAN bus. Do not swap around the two signal wires! Interface 1 Interface 2 Shield Protective ground Protective ground 04/05 AWB2776-1574GB © by Moeller GmbH...
- Page 23 Ground. Pins 4, 5 and 8 must not be connected! The CAN bus driver is fed internally. Baud rate and cable lengths Baud rate Max. length 20kBit/sec 2500m 25kBit/sec 2000m 50kBit/sec 1000m 100kBit/sec 650m 125kBit/sec 500m 250kBit/sec 250m 500kBit/sec 100m 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 24: Connection For Keyboard
The ProfibusDP master interface is only available in the version Ord No.: MC-HPG-230-DP Socket Pin No. Signal Description RXD/TXD+ Fused, not isolated Socket 9pole RXD/TXD- SubD 5.10 C COM1 (RS232) ONNECTION FOR SERIAL INTERFACE Pin No. Signal Description Connector Connector 9pole SubD 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 25: Operation
The EPAM visualization software therefore makes a copy of the file in the directory C:\BACKUP before every write operation. These files are restored if necessary at the start. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 26: Plc Operating States
Section 6.7), and the PLC was in Run status at the last online access via the programming software System Fault SF The following system faults can occur ( Section 10): • Hardware fault • Firmware system faults 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 27: Changing Operating Mode
PLC via the commands ‘Online’, ‘Stop’, or if the user program is at a break point, or after the commands 'Online', 'Single Cycle'. A detailed description of the online functions is also provided the XSoft manual. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 28: Startup Behaviour/Startup
PLC switches to Stop status and the new program is loaded into the working memory. (Program transfer/Online Change see also the XSoft manual). PLC and CompactFlash™: The user program is saved on the CompactFlash™ by generating a boot project. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 29: System Settings
# Number of system ticks that EPAM suspends at the end of the EPAM loop (1=default) Only the [BOOT] entry can be changed by the user in the PLC.INI configuration file. All other settings must not be changed. 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 30 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Operation 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 31: Mounting Instructions
OUNTING INSTRUCTIONS 7.1 G ENERAL MOUNTING INSTRUCTIONS All MC-HPG-2x0 series devices are mounted from the front, i.e. in a control panel. They are fastened from the rear with the supplied fixing frame and 4 securing nuts. All MC-HPG-2x0 series devices can be operated up to a maximum ambient temperature of 45°C (... -
Page 32: Front Panel Cutout
Device Description MC-HPG-2x0 Mounting instructions 7.3 F RONT PANEL CUTOUT The device requires a mounting cutout of WxH: 198 +0/-1 mm x 142 +0/-1 mm The thickness of the front panel must not exceed 5 mm. 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 33: Mechanical Dimensions
Display PLC MC-HPG-2x0 Device Description MC-HPG-2x0 Mounting instructions 7.4 M ECHANICAL DIMENSIONS 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 34: External Fan
MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Mounting instructions 7.5 E XTERNAL FAN The MC-HPG-2x0 series devices are prepared for the mounting of an external fan. Order designations Manufacturer Papst Type Axial fan, 24V, 40x40x20mm Order No. CageClamp connector Manufacturer WAGO-CONTACT... -
Page 35: Notes On The Touch Screen
Do not expose the front of the device to solvents which may corrode and loosen the plastic frame (frame material: Makrolon 2805, Manufacturer: Bayer AG). 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 36 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Notes on the touch screen 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 37: Display, Backlight, Contrast
The ACT LED is lit (flashing during transfer) with a correct data transfer - Incorrect/invalid IP address set The current IP address is shown during startup at the bottom right of the screen Refer to the XSoft engineering software documentation for other diagnostics options. 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 38 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Display, backlight, contrast 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 39: Maintenance And Repair
Repairs Repairs to the MC-HPG-2x0 should only be carried out by the manufacturer or Moeller GmbH repair centers. In this case, please contact your local MC- Control dealer or the Technical Support at Moeller GmbH. (manufacturer's address Section 14) No liability is accepted for any modifications made to the device that are not described in this document. - Page 40 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Maintenance and repair 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 41: Technical Data
Manual via the software Fuse protection Fuse 1.6 A slow Breaking capacity Max. 30A Type Ethernet Programming interface Connection RJ45 Interfaces: COM1 Type RS232, not isolated Connection CiA, Sub-D 9-pole male CAN Type CAN, not isolated 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 42: Profibusdp
ProfibusDP Type Master/slave to 12MBit (Option) Connection Sub-D 9 pole female Ethernet Type 10BaseT Connection RJ45 Keyboard Type Standard AT (only for service tasks) Connection CompactFlash Slot CompactFlash Type 1 Technology ATA Flash, 5V 04/05 AWB2776-1574GB © by Moeller GmbH... -
Page 43: Disposal
MC-HPG-2x0: EN 50081-2 (Emission) EN 61000-6-2 (Immunity) The following standard was used to assess the electrical safety of the MC-HPG-2x0: EN 60950-1 2002 Manufacturer: Moeller GmbH Manufacturer address: Hein-Moeller-Str. 7-11 D-53115 Bonn Germany 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 44 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Disposal 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 45: Email
Features, Technical data 06-02 / Fis Battery installed when delivered New Pictures MC-HPG-2x0 08-02 / Fis New device MC-HPG-230-DP Moeller GmbH Hein-Moeller-Str. 7-11 D-53115 Bonn Germany +49(0) 228/602-0 +49(0) 228/602-2433 email automation@moeller.net homepage : www.moeller.net 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 46 MC-HPG-2x0 Display PLC Device Description MC-HPG-2x0 Revision history 04/05 AWB2776-1574GB © by Moeller GmbH...
-
Page 47: Alphabetical Index
Reset Cold 27 Explanation of symbols 7 Reset Original 27 Revision history 45 RS232 15 Features 13 Front plate versions 11 Safety instructions for the user 4 Fuse 15 Shutdown behaviour 25 Fuse protection 41 04/05 AWB2776-1574GB © by Moeller GmbH... - Page 48 Device Description MC-HPG-2x0 Alphabetical index Transport 39 Spare battery Start 27 Start messages 25 Startup behaviour 25 Visualization 13 Startup behaviour/startup 28 System supply 41 Warnings 7 Weight 41 Technical data 41 Telefon Touch 13 04/05 AWB2776-1574GB © by Moeller GmbH...
