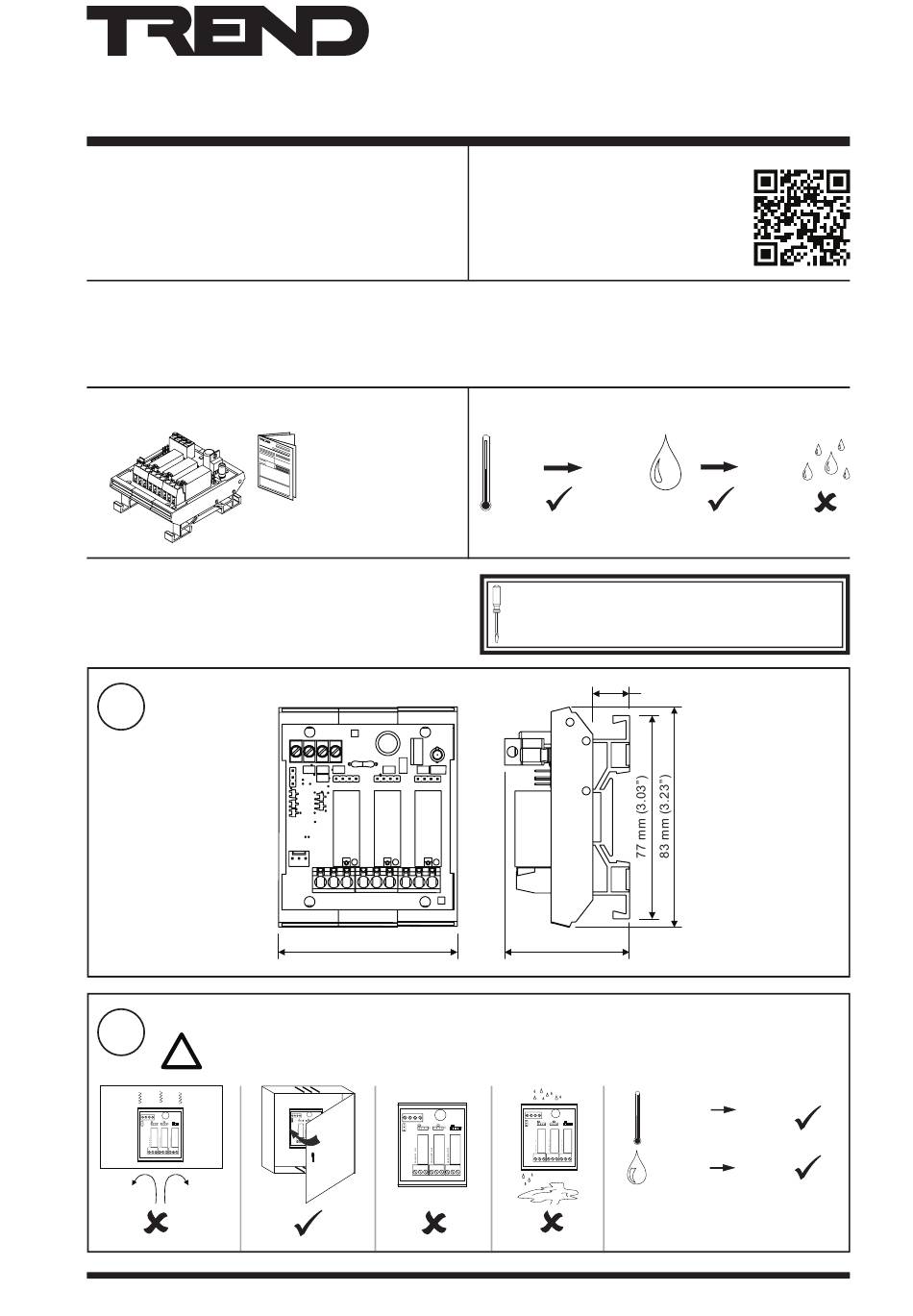

TREND 3RM/24VAC Installation Instructions-Mounting

Important: Retain these instructions
These instructions shall be used by trained service
personnel only.
If the equipment is used in a manner not
specifi ed by these instructions, the protection provided by the
equipment may be impaired.
CONTENTS
1 Unpacking .....................................................................1
2 Storing ...........................................................................1
3 Installation .....................................................................1
1 BOX CONTENTS
3 INSTALLATION
3.1 Installation - Mounting
Dimensions
1
Requirements
2
!
The module must be installed in an enclosure conforming to EN61010-1.
IN 0V 24V
H
T
AUTO ON OFF AUTO ON OFF AUTO ON OFF
NC NO C NC NO C NC NO C
3RM/24VAC Installation Instructions TG200647 Issue 3, 27-Mar-2015.
Three Relay Module (24 Vac/dc)
3RM/24VAC
Installation Instruction
(TG200647)
68 mm (2.68")
IN 0V 24V
IN 0V 24V
H
T
AUTO ON OFF AUTO ON OFF AUTO ON OFF
H
T
AUTO ON OFF AUTO ON OFF AUTO ON OFF
NC NO C NC NO C NC NO C
NC NO C NC NO C NC NO C
Installation Instructions - Mounting
3RM/24VAC
https://partners.trendcontrols.com
3.1 Installation - Mounting ...................................................1
4 Disposal .........................................................................4
2 STORING
-10°C
+70°C
(-14°F)
(+158°F)
It is recommended that the installation should comply
with the local electrical safety installation practices (e.g.
HSE Memorandum of Guidance on Electricity at Work
Regulations 1989, USA National Electric Code).
48 mm (1.89")
IN 0V 24V
H
T
AUTO ON OFF AUTO ON OFF AUTO ON OFF
NC NO C NC NO C NC NO C
H O
2
0 95%RH
H O
2
13 mm (0.51")
+50 °C
-10 °C
(122 °F)
(14 °F)
0 %RH 90 %RH
