TREND 2SRM Installation Instructions

Important: Retain these instructions
1

Unpacking

2

Storage

+70 °C
-10 °C
(158 °F)
(14 °F)
3

Installation

1
Dimensions
IN IN 24
0V
1 2 V
J2 J1
AUTO ON OFF AUTO ON OFF
NC NO C NC NO C
57 mm (2.24")
c
-10 °C
(14 °F)
0 %RH
2SRM (24 Vac/dc) Installation Instructions TG103210 Issue 2 07/07/08

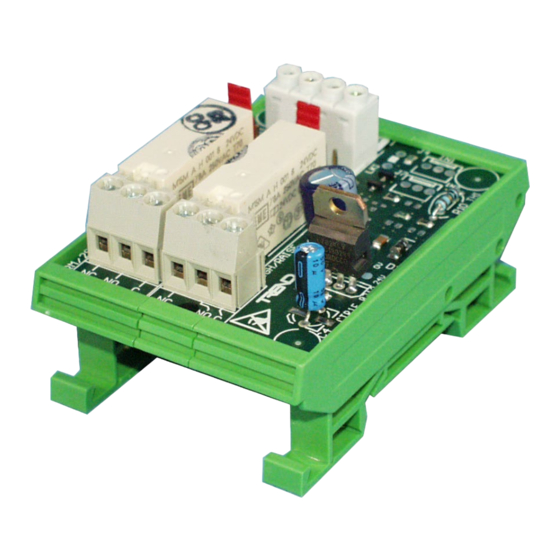

Two Single Relays Module
95 %RH
0 %RH
13 mm
(0.51")
48 mm (1.89")
+50 °C
(122 °F)
90 %RH
Installation Instructions
2SRM (24 Vac/dc)
2SRM (24 Vac/dc)
Installation Instruction
TG103210
It is recommended that the installation
should comply with the HSE
Memorandum of Guidance on Electricity
at Work Regulations 1989.
2
Requirements
a
IN 24
IN 0V
2 V
J2 J1
AUTO ON OFF AUTO ON OFF
NO NC C NO NC C
b
IN 24
IN 0V
2 V
J2 J1
AUTO ON OFF AUTO ON OFF
NO NC C NO NC C
IN 24
IN 0V
2 V
J2 J1
AUTO ON OFF AUTO ON OFF
NO NC C NO NC C
IN 0V IN 24
2 V
J2 J1
AUTO ON OFF AUTO ON OFF
NO NC C NO NC C
1
