Antenna Installation - Tiny Audio C-SMART Installation And User Manual

► The DAB module supports both amplified and nonamplified aerials.
For amplified antennas we support phantom power through the SMB
antenna connector and also 12V power is provided by the DAB
receiver via the 2-pin molex connector.
► Read the manual of the antenna carefully and follow the instructions in
order to find the right place for installation.
► Always test (read next chapter) the DAB functions before finalizing the
installation.

Antenna Installation

An active antenna is included with the Csmart. To achieve the
best performance, it is important that it is installed correctly.

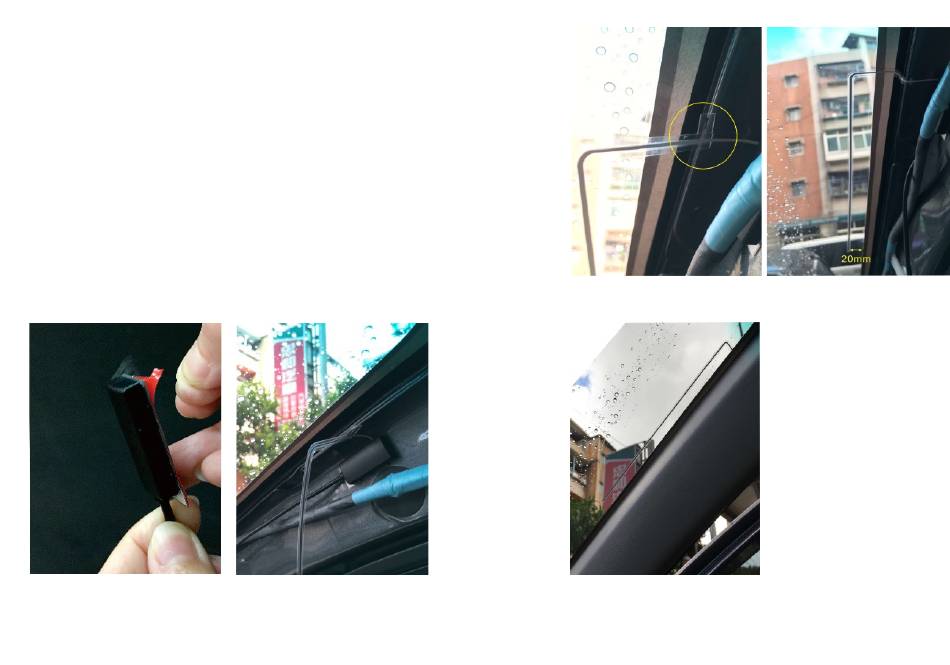

Remove the protective film from
the amplifier.
Attach the amplifier to the A-pillar
4
Remove the protective film
from the antenna.
Finish up the installation.
5
The gap between the car and
antenna should be 20mm.
