LG LS-J0760FL Product Data Book

Room air conditioners general wall mounted-50hz(r410a/r407c)
Hide thumbs

Advertisement

Table of Contents

Room Air Conditioners
General Wall Mounted-50Hz(R410A/R407C)
5RMG0-02A

Advertisement

Table of Contents
loading

Related Manuals for LG LS-J0760FL

Summary of Contents for LG LS-J0760FL

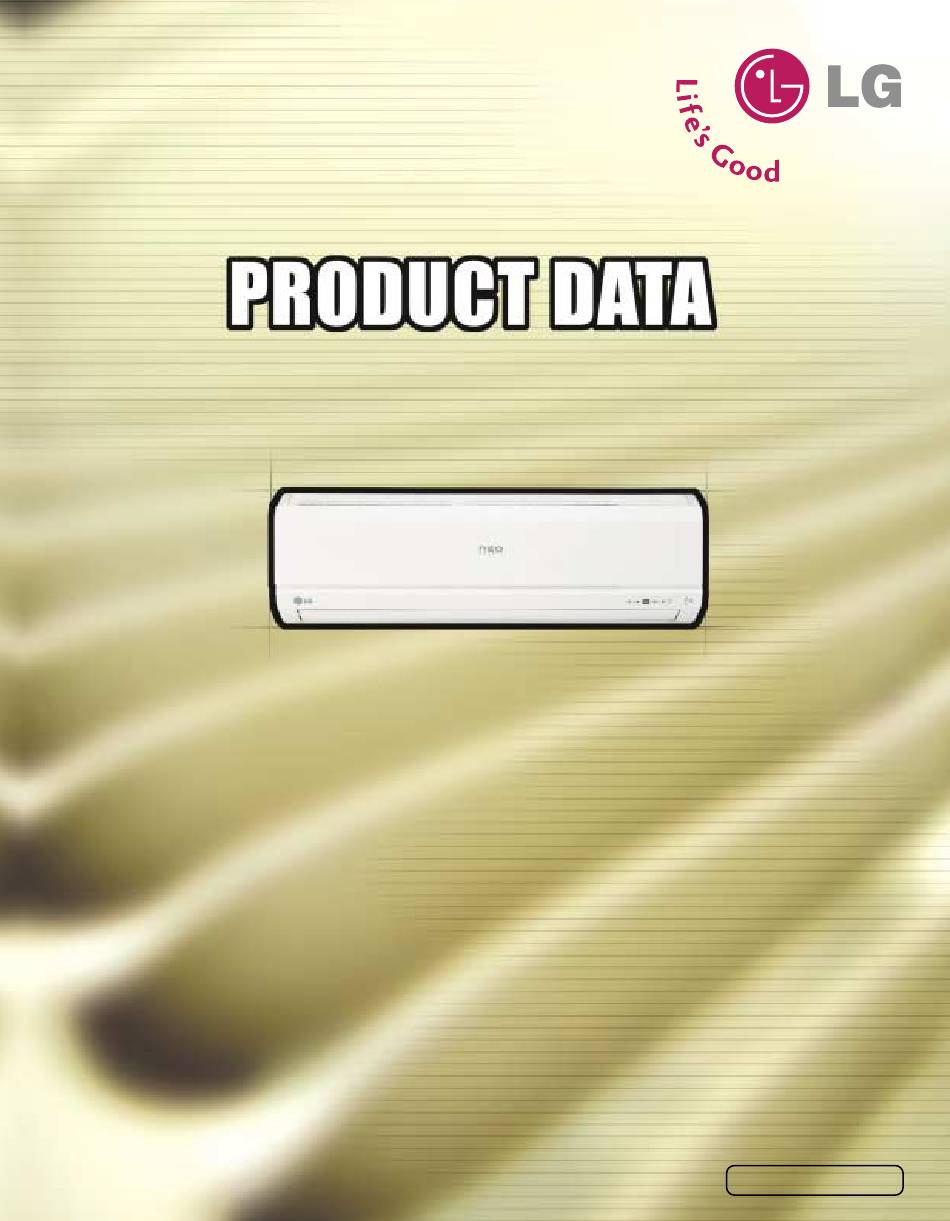

  • Page 1 Room Air Conditioners General Wall Mounted-50Hz(R410A/R407C) 5RMG0-02A...

  • Page 2: Table Of Contents

    General Wall Mounted Table of contents Page 1. Models Line up ..................4 2. Model Number Nomenclature..............6 3. Features & Benefit..................9 4. Specifications ..................19 5. Dimensional Drawings .................39 6. Wiring Diagrams ...................50 7. Refrigerant Cycle Diagram..............56 8. Performance Data .................60 9. Coefficient of Capacity Change ............79 10.
  • Page 3 Test condition of international standard CLASSIFICATION AHAM 9306 5151 210/240 1861.1 DB°C(°F) 27.0 27.0 26.7(80) 26.7(80) 27.0 29.0 Indoor Cooling WB°C(°F) 19.5 19.0 19.4(67) 19.4(67) 19.0 19.0 Capacity DB°C(°F) 35.0 35.0 35.0(95) 35.0(95) 35.0 46.0 Outdoor WB°C(°F) 24.0 24.0 23.9(75) 23.9(75) 24.0 24.0...
  • Page 4 1) General Wall Mounted Type Units : Units with the Simplicity in design. 2) Art Cool Units : A new concept of cooling introduced by LG in the field of Air Conditioning. 3) Inverter Units : These units are capable of saving the Power consumption with the unique inverter technolo-...

  • Page 5: Models Line Up

    1. Models Line up General Wall Mounted Edition Capacity Chassis Type Refrigerant Model R410A LS-J0760FL(ML) R410A LS-J0762RL(PL) R410A LS-J0962FL(ML) R410A LS-J0962RL(PL) R410A LS-L1262FL(ML) R410A LS-L1262RL(PL) R410A LS-K1863FL(ML) R410A LS-K1863RL(PL) R410A LS-K2460FL(ML) R410A LS-K2462RL(PL) R410A AS-H056WLA0[S05AH SW0] R410A AS-C076QLA0[S07AC SQ0] R410A...
  • Page 6 1. Models Line up Edition Capacity Chassis Type Refrigerant Model R410A AS-C186TLM1[S18ACP ST1] R410A AS-H186TMA0 R410A AS-C246TMA0 R410A AS-H246TMA0 R410A AS-C366NLM0[S36ACP SN0] R410A AS-H366NLM0[S36AHP SN0] Edition Capacity Chassis Type Refrigerant Model R410A AS-H0766KA2[G07AH S63] R410A AS-C0764DM0[S07ACP S40] R410A AS-H0764DM0[S07AHP S40] R410A AS-H0966KA2[G09AH S63] R410A...

  • Page 7: Model Number Nomenclature

    2. Model Number Nomenclature • Identification Rule 1: Code Type Code of Model Meaning 1, 2 Type of Airconditioner LS: LG Split Type Airconditioner Chassis Name of tool of Unit Ex. LS-J SJ Chassis 4, 5 Capacity Cooling/Heating Capacity Ex. "09"...
  • Page 8 (Nano)Plasma+Negative ion+A/Clean 4way+(Nano)Plasma F+Negative ion+A/Clean Nano Plasma F+4Way+(A/changeove)+A/clean+Oxygen generator 4way+(Nano)Plasma F+Negative ion+A/Clean+Oxygen generator Dry contact Serial No. LG Model Development Serial No. Note: • Identification Rule 1 is old one. • Identification Rule 2 is new one. 2005 Product Data...
  • Page 9 2. Model Number Nomenclature • Europe Model Number Development sequence Chassis / Tools of unit W : SW chassis (5K) Q : SQ chassis (7,9K) 4: S4 chassis (7,9,12K new) 6 : S6 chassis (7,9K G model) R : SR chassis (9,12K) T : ST chassis (18,24K) 5 : S5 chassis (18, 24K) M : SM chassis (30K)

  • Page 10: Features & Benefit

    3. Features & Benefit NEO-Plasma Air Purifying System LG Electronics’ unique neo-plasma air purifying system, equipped with 12-level bio-enzyme filters, has further enhanced its sterilization power. While air passes each level of filters, the system can more powerful- ly eliminate household's fine dust and molds, ordinary odors, food smells, and cigar smoke, as well as can destroy bacteria's cell walls to completely kill them.
  • Page 11 3. Features & Benefit Plasma The PLASMA Air Purifying System Nano Bio developed uniquely by LG not only Filter Fusion Filter removes microscopic contaminants and dust, but also removes house mites, pollen, and pet fur to prevent Nano bio fusion filters allow their nano-size bio enzymes to directly pene- allergic diseases like asthma.
  • Page 12 3. Features & Benefit Healthy Dehumidification LG Wall Mounted Split models feature a Dehumidification mode to remove uncomfortable humidity from the room without over cooling. Indoor Temperature Distribution Chart Healthy Conventional Dehumidification Since the surrounding temperature is measured after the air from the unit is...
  • Page 13 2. Designed for optimizing compressor vibration Anti Rust Gold Fin™ LG's Heat exchanger surface is coated with an anticorro- sive, gold on aluminum. This ensures their surface always free of corrosion and helps them preform like new one.
  • Page 14 3. Features & Benefit Auto Changeover Low Ambient With heat pump model,cooling and heating operation is Cools the room as is necessary, even in winter. changed automatically on the base of setting temp. - In case you hold a party indoors in winter, you need to operate equipment in the computer server room in long hours, or you cannot open windows for the secu- rity's sake, you can cool the room using the Inverter...
  • Page 15 3. Features & Benefit Optimized Cooling & Heating Air Flow LG Electronics' air conditioner, which adopts the twin air vanes, blows winds horizontally far away in the cooling mode to prevent direct window blowing. And, in the heat- ing mode, the air conditioner pushes winds downwards to provide warm air evenly, thus offering pleasant air.
  • Page 16 A little interior accent for the modern you. The romantic pastel colors, subdued luster,modern texture and the super slim design of LG ARTCOOL Mirror are the answers to your The Jet cool function allows quick cooling. unique mood and personality.
  • Page 17 Your room will shine chicly with a famous painting or a household. beautiful photo (showcased in the product). LG ART7COOL will convert your room into a gallery. Do you like Western paintings, Oriental paintings, or photos? The product features your desired style of famous paintings.
  • Page 18 3. Features & Benefit DC Inverter Economical Energy Saving Recouping the Initial Investment Cost Though the initial purchase price is a little higher, in Unlike ordinary Conventional air conditioners, inverter air case you use an inverter air conditioner in the long conditioners can control the speed of compressors to term, you can continue to reduce electricity cost to adjust cooling and heating.
  • Page 19 3. Features & Benefit Cooling Strong Capable Powerful Cooling & Heating Powerful Heating Capacity (Chilly Area Available) You can change the power by changing the compres- sor frequency. Provides the greatest heating performance in cold areas Operational power with a greater scope - When outdoor temperatures fall to as low as -10°, - When you return home from outside, in case you start you can faster increase the speed of the compres-...

  • Page 20: Specifications

    4.Specifications General Wall Mounted General Wall Mounted (#1) Models Unit LS-J0760FL(ML) LS-J0762RL(PL) LS-J0962FL(ML) LS-J0962RL(PL) Cooling Capacity kcal/h.(W) 1,764(2,051) 1,764(2,051) 2,268(2,637) 2,268(2,637) Btu/h. 7,000 7,000 9,000 9,000 Heating Capacity kcal/h.(W) 1,840(2139) 2,394(2,784) Btu/h. 7,300 9,500 Power Input Cooling Heating Running Current...
  • Page 21 4.Specifications General Wall Mounted Models Unit LS-L1262FL(ML) LS-L1262RL(PL) LS-K1863FL(ML) LS-K1863RL(PL) Cooling Capacity kcal/h.(W) 3,024(3,517) 3,024(3,517) 4,536(5,275) 4,536(5,275) Btu/h. 12,000 12,000 18,000 18,000 Heating Capacity kcal/h.(W) 3,276(3,810) 4,788(5,568) Btu/h. 13,000 19,000 Power Input Cooling 1,200 1,200 1,900 1,900 Heating 1,210 1,950 Running Current Cooling Heating...
  • Page 22 4.Specifications General Wall Mounted Models Unit LS-K2460FL(ML) LS-K2462RL(PL) Cooling Capacity kcal/h.(W) 6,048(7,033) 6,048(7,033) Btu/h. 24,000 24,000 Heating Capacity kcal/h.(W) 6,048(7,033) Btu/h. 24,000 Power Input Cooling 2,400 2,530 Heating 2,515 Running Current Cooling Heating Starting Current Cooling Heating kcal/h.W(W/W) 2.52(2.93) 2.39(2.78) Btu/h.W 10.00 9.49...
  • Page 23 4.Specifications General Wall Mounted Models Unit AS-H056WLA0[S05AH SW0] AS-C076QLA0[S07AC SQ0] AS-C076QLL0[S07ACP SQ0] AS-H076QGA2[G07AH SQ2] Cooling Capacity kcal/h.(W) 1,411(1,640) 1,915(2,227) 1,915(2,227) 1,764(2051) Btu/h. 5,600 7,600 7,600 7,000 Heating Capacity kcal/h.(W) 1,411(1,640) 1,840(2,139) Btu/h. 5,600 7,300 Power Input Cooling Heating Running Current Cooling Heating Starting Current...
  • Page 24 4.Specifications General Wall Mounted Models Unit AS-H076QLA0[S07AH SQ0] AS-H076QLC0 AS-H076QLL0[S07AHP SQ0] AS-C096QLA0[S09AC SQ0] Cooling Capacity kcal/h.(W) 1,966(2,286) 1,966(2,286) 1,966(2,286) 2,369(2,750) Btu/h. 7,800 7,800 7,800 9,400 Heating Capacity kcal/h.(W) 1,966(2,286) 1,966(2,286) 1,966(2,286) Btu/h. 7,800 7,800 7,800 Power Input Cooling Heating Running Current Cooling Heating Starting Current...
  • Page 25 4.Specifications General Wall Mounted Models Unit AS-C096QLL0[S09ACP SQ0] AS-H096QGA2[G09AH SQ2] AS-H096RLA0[S09AH SR0] AS-H096RLC0 Cooling Capacity kcal/h.(W) 2,369(2,750) 2,268(2,637) 2,394(2,784) 2,394(2,784) Btu/h. 9,400 9,000 9,500 9,500 Heating Capacity kcal/h.(W) 2,344(2,725) 2,520(2,931) 2,520(2,931) Btu/h. 9,300 10,000 10,000 Power Input Cooling Heating Running Current Cooling Heating Starting Current...
  • Page 26 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted Models Unit AS-H096RLL0[S09AHP SR0] AS-C126RLA0[S12AC SR0] AS-C126RLM0[S12ACP SR0] AS-H126RGA2[G12AH SR2] Cooling Capacity kcal/h.(W) 2,394(2,784) 3,049(3,550) 3,049(3,550) 3,024(3,517) Btu/h. 9,500 12,100 12,100 12,000 Heating Capacity kcal/h.(W) 2,520(2,931) 3,150(3,663) Btu/h. 10,000 12,500 Power Input Cooling 1,100 1,100...
  • Page 27 4.Specifications General Wall Mounted Models Unit AS-H126RLA0[S12AH SR0] AS-H126RLC0 AS-H126RLM0[S12AHP SR0] AS-C186TLB0[S18AC ST0] Cooling Capacity kcal/h.(W) 3,049(3,550) 3,049(3,550) 3,049(3,550) 4,662(5,422) Btu/h. 12,100 12,100 12,100 18,500 Heating Capacity kcal/h.(W) 3,276(3,810) 3,276(3,810) 3,276(3,810) Btu/h. 13,000 13,000 13,000 Power Input Cooling 1,100 1,100 1,100 1,800 Heating...
  • Page 28 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted Models Unit AS-C186TLA1 AS-C186TLB1[S18AC ST1] AS-H186TLB0[S18AH ST0] AS-H186TLM0[S18AHP ST0] Cooling Capacity kcal/h.(W) 4662(5422) 4,662(5,422) 4,662(5,422) 4,662(5,422) Btu/h. 18,500 18,500 18,500 18,500 Heating Capacity kcal/h.(W) 4,788(5,568) 4,788(5,568) Btu/h. 19,000 19,000 Power Input Cooling 1,690 1,690 1,690...
  • Page 29 4.Specifications General Wall Mounted Models Unit AS-C246TLB0[S24AC ST0] AS-C246TLM0[S24ACP ST0] AS-H246TLB0[S24AH ST0] AS-H246TLM0[S24AHP ST0] Cooling Capacity kcal/h.(W) 5,922(6,887) 5,922(6,887) 5,922(6,887) 5,922(6,887) Btu/h. 23,500 23,500 23,500 23,500 Heating Capacity kcal/h.(W) 5,922(6,887) 5,922(6,887) Btu/h. 23,500 23,500 Power Input Cooling 2,290 2,290 2,290 2,290 Heating 2,450...
  • Page 30 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted Models Unit AS-C306MLB0[S30AC SM0] AS-C306MLM0[S30ACP SM0] AS-H306MLB0[S30AH SM0] AS-H306MLM0[S30AHP SM0] Cooling Capacity kcal/h.(W) 7,061(8,210) 7,061(8,210) 7,061(8,210) 7,061(8,210) Btu/h. 28,000 28,000 28,000 28,000 Heating Capacity kcal/h.(W) 7,313(8,500) 7,313(8,500) Btu/h. 29,000 29,000 Power Input Cooling 3,100 3,100...
  • Page 31 4.Specifications General Wall Mounted Models Unit CS-C306MLB0 CS-H306MLD0 CS-C366NLB0 CS-H366NLD0 Cooling Capacity kcal/h.(W) 6804(7913) 6801(7918) 8,568(9,964) 8,567(9,964) Btu/h. 27,000 27,000 34,000 34,000 Heating Capacity kcal/h.(W) 7,056(8,206) 8,945(10,404) Btu/h. 28,000 35,500 Power Input Cooling 2,800 2,800 4,000 4,000 Heating 2,930 4,000 Running Current Cooling 12.5...
  • Page 32 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted General Wall Mounted (#2) Models Unit AS-C186TLM1[S18ACP ST1] AS-H186TMA0 AS-C246TMA0 Cooling Capacity kcal/h.(W) 4662(5422) 4,662(5,422) 5,922(6,887) Btu/h. 18,500 18,500 23,500 Heating Capacity kcal/h.(W) 4,788(5,568) Btu/h. 19,000 Power Input Cooling 1,690 1,690 2,290 Heating 1,740 Running Current...
  • Page 33 4.Specifications General Wall Mounted Models Unit AS-H246TLA0 AS-C366NLM0[S36ACP SN0] AS-H366NLM0[S36AHP SN0] Cooling Capacity kcal/h.(W) 5,922(6,887) 8,567(9,960) 8,567(9,960) Btu/h. 23,500 34,000 34,000 Heating Capacity kcal/h.(W) 5,922(6,887) 8,819(10,260) Btu/h. 23,500 35,000 Power Input Cooling 2,290 3700 3700 Heating 2,450 3700 Running Current Cooling 10.5 Heating...
  • Page 34 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted General Wall Mounted (#3) Models Unit AS-H0766KA2[G07AH S63] AS-H0764DM0[S07AHP S40] AS-C0764DM0[S07ACP S40] AS-H0966KA2[G09AH S63] Cooling Capacity kcal/h.(W) 1,764(2050) 1,969(2,290) 1969(2290) 2,268(2,640) Btu/h. 7000 7800 7800 9000 Heating Capacity kcal/h.(W) 1,840(2,130) 2,029(2,360) 2,344(2,730) Btu/h.
  • Page 35 4.Specifications General Wall Mounted Models Unit AS-H0964DM0[S09AHP S40] AS-C0964DM0[S09ACP S40] AS-H126RKA2[G12AH SR3] AS-H1264DM0[S12AHP S40] Cooling Capacity kcal/h.(W) 2,394(2,780) 2,394(2780) 3,024(3,520) 3,049(3,550) Btu/h. 9500 9500 12000 12100 Heating Capacity kcal/h.(W) 2,608(3,030) 3,150(3,660) 3,326(3,870) Btu/h. 10350 12500 13200 Power Input Cooling 1250 1100 Heating 1140...
  • Page 36 4.Specifications 4.Specifications General Wall Mounted General Wall Mounted Models Unit AS-C1264DM0[S12ACP S40] AS-H1865DM0[S18AHP S50] AS-H2465DM0[S24AHP S50] Cooling Capacity kcal/h.(W) 3049(3550) 4,662(5,420) 6,048(7,030) Btu/h. 12100 18500 24000 Heating Capacity kcal/h.(W) 4,990(5,810) 6,048(7,030) Btu/h. 19800 24000 Power Input Cooling 1100 1800 2330 Heating 1810 2360...
  • Page 37 General Wall Mounted (#4) Models Unit AS-C0764DB0[S07AC S40] AS-C0964DB0[S09AC S40] AS-C1264DB0[S12AC S40] AS-H146TLM0[S14AHP ST0] Cooling Capacity kcal/h.(W) 1969(2290) 2,394(2780) 3049(3550) 3780(4396) Btu/h. 7,800 9,500 12,100 15,000 Heating Capacity kcal/h.(W) 3780(4396) Btu/h. 15,000 Power Input Cooling 1,100 1,560 Heating 1,370 Running Current Cooling Heating Starting Current...
  • Page 38 Models Unit AS-H186TKA2[G18AH ST3] AS-C1865DM0[S18ACP S50] AS-C1865DB0[S18AC S50] Cooling Capacity kcal/h.(W) 4,660(5,420) 4,660(5,420) 4,660(5,420) Btu/h. 18,500 18,500 18,500 Heating Capacity kcal/h.(W) 4788(5570) Btu/h. 19,000 Power Input Cooling 1,760 1,790 1,790 Heating 1,900 Running Current Cooling Heating Starting Current Cooling Heating kcal/h.W(W/W) 2.65(3.08) 2.60(3.03)
  • Page 39 Models Unit AS-H246TKA2[G24AH ST3] AS-C2465DM0[S24ACP S50] AS-C2465DB0[S24AC S50] Cooling Capacity kcal/h.(W) 5,922(6,890) 6,050(7,030) 6,050(7,030) Btu/h. 23,500 24,000 24,000 Heating Capacity kcal/h.(W) 5,922(6,890) Btu/h. 23,500 Power Input Cooling 2,290 2,500 2,500 Heating 2,450 Running Current Cooling 10.5 10.9 10.9 Heating 11.0 Starting Current Cooling Heating...

  • Page 40: Dimensional Drawings

    5. Dimensional Drawings Indoor Units 1. Indoor Unit General Wall Mounted (5~24k Btu.), SW, SQ, SR, ST Installation plate (Unit : mm) Capacity(Btu.) 7k/9k 9k/12k 18k/24k 1090 2005 Product Data...
  • Page 41 5. Dimensional Drawings Indoor Units General Wall Mounted (7~24k Btu.), S4, S5 Installation plate Model S4 (7k, 9k, 12k Btu Series) S5 (18k, 24 Btu Series) Dimension 1090 2005 Product Data...
  • Page 42 5. Dimensional Drawings Indoor Units General Wall Mounted (30~36k Btu.) SM chassis SN chassis Tubing hole cover Tubing hole cover Tubing hole cover Installation plate Installation plate Tubing hole cover Model SM(30k Btu.) SN(36k Btu.) Dimension 1,259 1,499 2005 Product Data...
  • Page 43 5. Dimensional Drawings Outdoor Units 2. Outdoor Unit • 7~12k Btu Gas side (3-way valve) Liquid side (2-way valve) Chassis unit 2005 Product Data...
  • Page 44 5. Dimensional Drawings Outdoor Units • 9~12k Btu Gas side (3-way valve) Liquid side (2-way valve) MODEL unit 2005 Product Data...
  • Page 45 5. Dimensional Drawings Outdoor Units • 18k Btu Liquid side 2-way valve Gas side 3-way valve Chassis unit 543.6 11.4 72.5 86.4 2005 Product Data...
  • Page 46 5. Dimensional Drawings Outdoor Units • 18~24k Btu Gas side (3-way valve) Liquid side (2-way valve) Chassis 2005 Product Data...
  • Page 47 5. Dimensional Drawings Outdoor Units • 18~24k Btu Gas side Liquid side Chassis 74.5 2005 Product Data...
  • Page 48 5. Dimensional Drawings Outdoor Units • 24~30k Btu Gas side 3-way valve Liquid side 3-way valve Chassis 76.4 2005 Product Data...
  • Page 49 5. Dimensional Drawings Outdoor Units • 36k Btu Gas side 3-way valve Liquid side 3-way valve Chassis 1038 1035 2005 Product Data...
  • Page 50 5. Dimensional Drawings Outdoor Units • 36K Btu. (Unit : mm) 4-ø12Hole (Air intake vent) (Air intake vent) 2005 Product Data...

  • Page 51: Wiring Diagrams

    6. Wiring Diagrams Indoor Units 6.1 Indoor Units General Wall Mounted C/O(5~24k Btu.), SW, SQ, SR, ST WIRING DIAGRAM AC PWB ASM. DC PWB ASM. TRIAC THERMISTOR GN/YL MOTOR STEP MOTOR CN-MOTOR STEP MOTOR SH-CAPA T/BOARD H.V. CLEAN CN-TAB T-BLOCK ASM.
  • Page 52 6. Wiring Diagrams Indoor Units General Wall Mounted C/O (5~24k Btu), S4, S5 WIRING DIAGRAM CONDUCTIVE MAIN PWB ASM. THERMISTOR ENCLOSURE MOTOR ONLY TRIAC OPTION GN/YL PWB ASM. MOTOR STEP CN-MOTOR MOTOR STEP SH-CAPA MOTOR CN-N1 H.V. CLEAN ASM. (PLASMA) FUSE S/W1 RY-COMP...
  • Page 53 6. Wiring Diagrams Indoor Units General Wall Mounted C/O, H/P (30/36k Btu.) WIRING DIAGRAM CN-MOTOR TRIAC MOTOR SH-CAPA. THERMISTOR STEP MOTOR (UP/DOWN) H.V.B ASM CN-POWER STEP MOTOR (L/R) FUSE AC250V/T2A Negative ion LIMITS S/W STEP MOTOR (L/R) OPTION PILLAR CN-DISP 3(L) 4(N) 5 TERMINAL DISPLAY PCB ASM...
  • Page 54 6. Wiring Diagrams Outdoor Units 6.2 Outdoor Units Single Split H/P (5~9k Btu.) Single Split C/O(5~9k Btu.) WIRING DIAGRAM WIRING DIAGRAM CAPACITOR CAPACITOR COMP COMP GN/YL GN/YL MOTOR MOTOR BR(YL) GN/YL BL GN/YL PILLAR PILLAR TERMINAL TERMINAL BL GN/YL GN/YL BLACK GRAY BLACK...
  • Page 55 6. Wiring Diagrams Outdoor Units Single Split C/O (9~12k Btu.) Single Split H/P (9~12k Btu.) WIRING DIAGRAM WIRING DIAGRAM COMP MOTOR COMP C S R MOTOR C S R CAPACITOR BR RD BL RD BL YL RD BL YL RD BL BK(RD) BR RD CAPACITOR...
  • Page 56 6. Wiring Diagrams Outdoor Units Single Split C/O(18~24k Btu.) WIRING DIAGRAM OPTION OPTION COMP. BR(OR) (BR) CAPACITOR TERMINAL 1(L) 2(N) BLOCK MOTOR BR BL TO INDOOR UNIT 3854A20167B WIRING DIAGRAM CAPACITOR COMP GN/YL MOTOR BL GN/YL TERMINAL BLOCK BL GN/YL BLACK TO INDOOR UNIT 3854A20123H...
  • Page 57 6. Wiring Diagrams Outdoor Units Single Split H/P (18~24k Btu.) WIRING DIAGRAM WIRING DIAGRAM COMP MOTOR C S R COMP MOTOR CAPACITOR C S R CAPACITOR BR(OR) (RD) T / B 1 REVERSING (RD) VALVE T / B 1 REVERSING T / B 2 VALVE TERMINAL...
  • Page 58 6. Wiring Diagrams Outdoor Units Single Split C/O(30k Btu.) WIRING DIAGRAM CAPACITOR OUTDOOR PCB COMP CN-FAN RUNNING CAPACITOR CN-COMP2 P2(N) P1(L) COMM POWER RELAY 1(L) 2(N) 3(L) 4(N) TERMINAL BLOCK (COMM) TERMINAL BLOCK1 POWER INPUT TO INDOOR UNIT 3854A20051G Single Split H/P(30k Btu.) WIRING DIAGRAM CAPACITOR OPTION...
  • Page 59 6. Wiring Diagrams Outdoor Units Single Split C/O(36k Btu.) WIRING DIAGRAM CAPACITOR OUTDOOR PCB FAN1 PTCR COMP CN-FAN RUNNING CN-COMP2 CAPACITOR1 CAPACITOR CAPACITOR2 CN-P2(N) P1(L) COMM FAN2 MAGNECTIC CONTACTOR 1(L) 2(N) 3(L) 4(N) TERMINAL BLOCK TERMINAL BLOCK1 POWER INPUT TO INDOOR UNIT 3854A20051H Single Split H/P(36k Btu.) WIRING DIAGRAM...

  • Page 60: Refrigerant Cycle Diagram

    7. Refrigerant Cycle Diagram • Model: Cooling Only INDOOR UNIT OUTDOOR UNIT LIQUID SIDE CAPILLARY TUBE HEAT HEAT EXCHANGE EXCHANGE (EVAPORATOR) (CONDENSER) GAS SIDE COMPRESSOR • Model: Cooling and Heating INDOOR UNIT OUTDOOR UNIT CHECK VALVE LIQUID SIDE (Heating Model only) 3-WAY VALVE CAPILLARY TUBE HEAT...

  • Page 61: Performance Data

    8. Performance Data Cooling 8.1 General Wall Mounted-Cooling LS-J0762FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-J0762RL(PL) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-J0962FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-J0962RL(PL)
  • Page 62 LS-L1262FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-L1262FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-K1863FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-K1863RL(PL) Indoor Air Outdoor Air Temperature : ˚...
  • Page 63 8. Performance Data Cooling LS-K2460FL(ML) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC LS-K2462RL(PL) Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H056WLA0[S05AH SW0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C076QL*0[S07AC SQ0/S07AC SQ0]...
  • Page 64 8. Performance Data Cooling AS-H076QGA2[G07AH SQ2] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H076QL*0[S07AH SQ0/S07AHP SQ0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C096QL*0[S09AC SQ0/S09ACP SQ0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H096QGA2[G09AH SQ2]...
  • Page 65 8. Performance Data Cooling AS-H096RL*0[S09AH SR0/S09AHP SR0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C126RL*0[S12AC SR0/S12ACP SR0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H126RGA2[G12AH SR2] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H126RL*0[S12AH SR0/S12AHP SR0]...
  • Page 66 8. Performance Data Cooling AS-H146TLM0[S14AHP ST0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C186TLB0[S18AC ST0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C186TL*1[S18ACP ST1/S18AC ST0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H186TL*0[S18AH ST1/S18AHP ST0]...
  • Page 67 8. Performance Data Cooling AS-C246TL*0[S24AC ST0/S24ACP ST0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H246TL*0[S24AH ST0/S24AHP ST0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C306MM*0[S30AC SM0/S30CP SM0] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC 10.0...
  • Page 68 8. Performance Data Cooling CS-C306MLB0 Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC 10.0 CS-H306MLB0 Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC 10.0 CS-C366NLB0 Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC 10.5...
  • Page 69 8. Performance Data Cooling AS-H0766KA2[G07AH S63] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H0764DM0[S07AHP S40] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C0764D*0[S07ACP S40/S07AC S40] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H0966KA2[G09AH S63]...
  • Page 70 8. Performance Data Cooling AS-H0964DM0[S09AHP S40] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C0964D*0 Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H126RKA2[G12AH SR3] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H1264DM0[S12AHP S40]...
  • Page 71 8. Performance Data Cooling AS-C1264D*0[S12AC S40/S12ACP S40] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H186TKA2[G18AH ST3] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H1865DM0[S18AHP S50] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C1865D*0[S18AC S50/S18ACP S50]...
  • Page 72 8. Performance Data Cooling AS-H246TKA2[G24AH ST3] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-H2465DM0[S24AHP S50] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC AS-C2465D*0[S24AC S50/S24ACP S50] Indoor Air Outdoor Air Temperature : ˚ CDB Temperature ˚CWB ˚CDB TC Notes :...
  • Page 73 8. Performance Data Heating 8.2 General Wall Mounted-Heating LS-J0762RL(PL) Outdoor WB (˚C) Indoor DB (˚C) LS-J0962RL(PL) Outdoor WB (˚C) Indoor DB (˚C) LS-L1262RL(PL) Outdoor WB (˚C) Indoor DB (˚C) LS-K1863RL(PL) Outdoor WB (˚C) Indoor DB (˚C) Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation. The heating capacity in the "Heating Capacity Table"...
  • Page 74 8. Performance Data Heating LS-K2462RL(PL) Outdoor WB (˚C) Indoor DB (˚C) AS-H056WLA0[S05AH SW0] Outdoor WB (˚C) Indoor DB (˚C) AS-H076QGA2[G07AH SQ2] Outdoor WB (˚C) Indoor DB (˚C) AS-H076QL*0[S07AH SQ0/S07AHP SQ0] Outdoor WB (˚C) Indoor DB (˚C) Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation. The heating capacity in the "Heating Capacity Table"...
  • Page 75 8. Performance Data Heating AS-H096QGA2[G09AH SQ2] Outdoor WB (˚C) Indoor DB (˚C) AS-H096RL*0[S09AH SR0/S09AHP SR0] Outdoor WB (˚C) Indoor DB (˚C) AS-H126RGA2[G12AH SR2] Outdoor WB (˚C) Indoor DB (˚C) AS-H126RL*0[S12AH SR0/S12AHP SR0] Outdoor WB (˚C) Indoor DB (˚C) ^2.6 Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation. The heating capacity in the "Heating Capacity Table"...
  • Page 76 8. Performance Data Heating AS-H146TLM0[S14AHP ST0] Outdoor WB (˚C) Indoor DB (˚C) AS-H186TL*0[S18AH ST0/S18AHP ST0] Outdoor WB (˚C) Indoor DB (˚C) AS-H246TL*0[S24AH ST0/S24AHP ST0] Outdoor WB (˚C) Indoor DB (˚C) AS-H306MM*0[S30AH SM0/S30AHP SM0] Outdoor WB (˚C) Indoor DB (˚C) 10.9 10.5 10.2 Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation.
  • Page 77 8. Performance Data Heating CS-H366NLD0 Outdoor WB (˚C) Indoor DB (˚C) 10.1 10.5 11.1 12.1 13.3 10.2 10.8 11.7 12.9 10.4 11.3 12.5 10.1 10.9 12.0 10.5 11.6 AS-H0766KA2[G07AH S63] Outdoor WB (˚C) Indoor DB (˚C) AS-H0764DM0[S07AHP S40] Outdoor WB (˚C) Indoor DB (˚C) AS-H0966KA2[G09AH S63]...
  • Page 78 8. Performance Data Heating AS-H0964DM0[S09AHP S40] Outdoor WB (˚C) Indoor DB (˚C) AS-H126RKA2[G12AH SR3] Outdoor WB (˚C) Indoor DB (˚C) AS-H1264DM0[S12AHP S40] Outdoor WB (˚C) Indoor DB (˚C) AS-H186TKA2[G18AH ST3] Outdoor WB (˚C) Indoor DB (˚C) Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation. The heating capacity in the "Heating Capacity Table"...
  • Page 79 8. Performance Data Heating AS-H1865DM0[S18AHP S50] Outdoor WB (˚C) Indoor DB (˚C) AS-H246TKA2[G24AH ST3] Outdoor WB (˚C) Indoor DB (˚C) AS-H2465DM0[S24AHP S50] Outdoor WB (˚C) Indoor DB (˚C) Correction Factor for Heating Capacity due to Frost on Heat Exchanger and Defrosting Operation. The heating capacity in the "Heating Capacity Table"...

  • Page 80: Coefficient Of Capacity Change

    9. Coefficient of Capacity Change • Model: 5K~24K Btu Cooling Only The Coefficient of Capacity Change Height Classification Total Pipe Length(m) 12.5 (0.94) (0.93) Outdoor 0.97 0.96 (0.95) (0.94) 0.99 0.98 0.97 (0.96) (0.95) Indoor 0.99 0.98 (0.97) (0.96) 0.99 0.98 (0.97) (0.96)
  • Page 81 9. Coefficient of Capacity Change • Model: 18K~24K Btu Heat Pump The Coefficient of Capacity Change Height Classification Total Pipe Length(m) 12.5 0.94 0.93 Outdoor 0.97 0.96 0.95 0.94 0.99 0.98 0.97 0.96 0.95 Indoor 0.99 0.98 0.97 0.96 0.99 0.98 0.97 0.96...

  • Page 82: Operation Limits

    10. Operation Limits Item Range 54(129.2) Inlet air temperature (Cooling) 43(109.4) Middle East model 21(69.8) Standard operation -10(14) Operation with the optional low ambient kit 15(59) 24(75.2) * Note: If the ambient temperature goes below 5°C(41°F), the capacity drops down Indoor air temperature °C W.B.(°F) even if the low ambient kit is installed.

  • Page 83: Air Velocity And Temperature Distributions(Reference Data)

    11. Air Velocity and Temperature Distributions(Reference Data) General Wall Mouted 7k Btu. Cooling Heating Discharge angle:45° Discharge angle:50° Air velocity [m/s] Air velocity [m/s] 2.7m 2.7m 0.75 0.75 Temperature [˚C] Temperature [˚C] 2.7m 2.7m General Wall Mouted 9k Btu. Cooling Heating Discharge angle:45°...
  • Page 84 11. Air Velocity and Temperature Distributions(Reference Data) General Wall Mouted 12k Btu. Cooling Heating Discharge angle:45° Discharge angle:50° Air velocity [m/s] Air velocity [m/s] 2.7m 2.7m 1.25 1.25 0.75 0.75 Temperature [˚C] Temperature [˚C] 2.7m 2.7m General Wall Mouted 18k Btu. Cooling Heating Discharge angle:45°...

  • Page 85: Function Of Remote Controller

    12.Function of Remote Controller Type 1 (Wireless LCD) The remote control transmits the signals to the system. Signal transmitter START/STOP BUTTON Operation starts when this button is pressed and stops when the button is pressed again. Operation mode selection button Used to select the operation mode.
  • Page 86 12.Function of Remote Controller Type 2 (Wireless LCD) Signal transmitter START/STOP BUTTON Operation starts when this button is pressed and stops when the button is pressed again. OPERATION MODE SELECTION BUTTON Used to select the operation mode. ROOM TEMPERATURE SETTING BUTTONS Used to select the room temperature.
  • Page 87 12.Function of Remote Controller Type 3. (Wireless Simple) The remote control transmits the signals to the system. OPERATION DISPLAY Displays the operation conditions. CHAOS SWING BUTTON TEMP. Used to stop or start louver movement and set the desired up/down airflow direction. TIME OPERATION MODE SELECTION BUTTON Used to select the operation mode.
  • Page 88 12.Function of Remote Controller Type 4. (Wireless Simple) The remote control transmits the signals to the system. OPERATION DISPLAY Displays the operation conditions. CHAOS SWING BUTTON TEMP. Used to stop or start louver movement and set the desired up/down airflow direction. TIME OPERATION MODE SELECTION BUTTON...
  • Page 89 EN ISO 9001 BS EN ISO 9001 TÜV TYPE ANSI/ASQC Q9001 Rheinland APPROVED P/No.: 3828A20801D Product Safety KS A 9001 For continual product development, LG reserves the right to change specifications without notice ©LG Electronics INC. Printed in Korea. April/2005...
