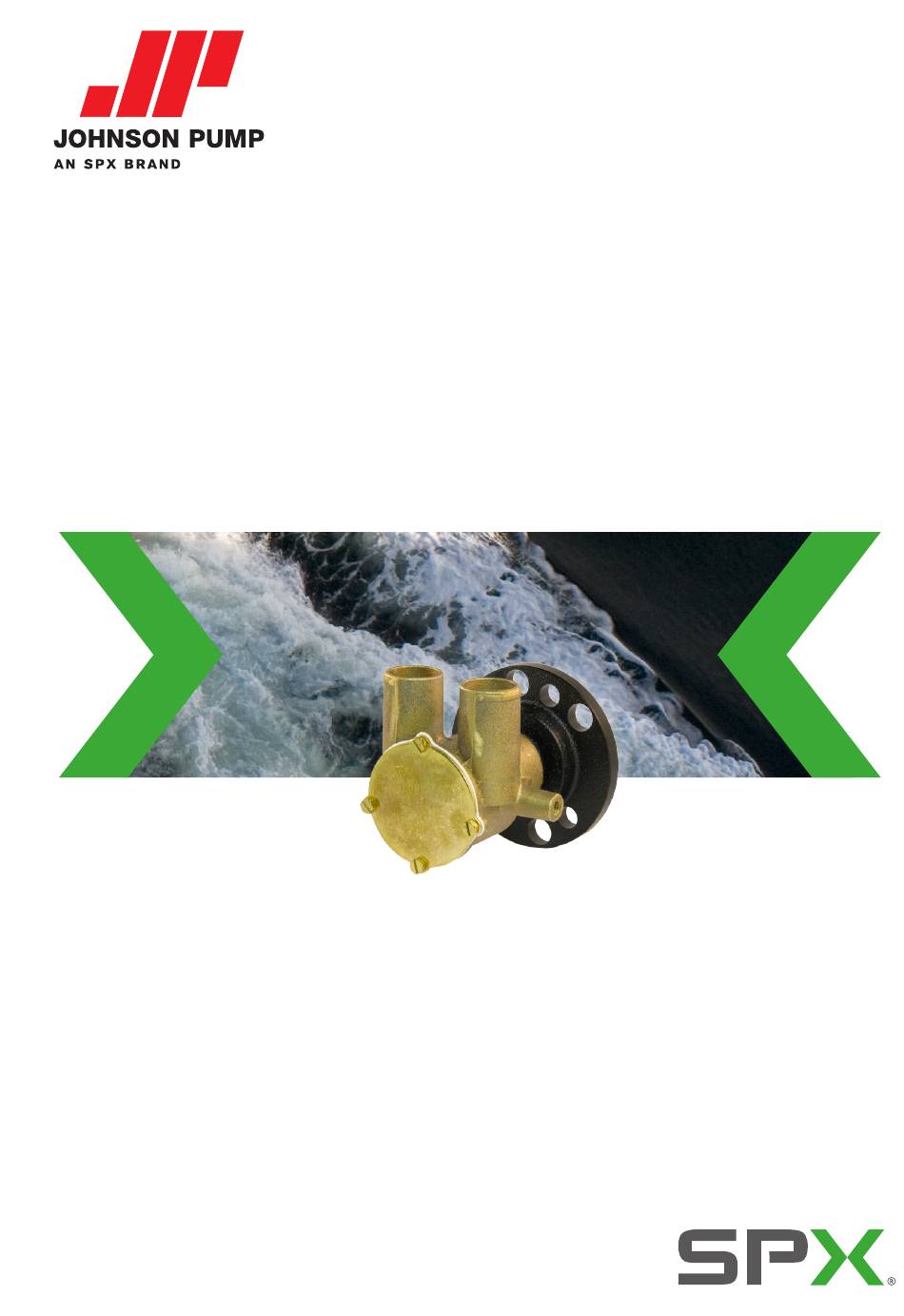

- Page 1 Instruction Manual Flexible Impeller Pumps bronze, high speed F6B-9 10-24805-01 Read and understand this manual prior to operating or servicing this product. IB-519/R01 (1011)
- Page 2 INDEX English ............................For more information about our worldwide locations, approvals, certifications, and local representatives, please visit www.johnson-pump.com. SPX Corporation reserves the right to incorporate our latest design and material changes without notice or obligation. Design features, materials of construction and dimensional data, as described in this bulletin, are provided for your information only and should not be relied upon unless confirmed in writing.
- Page 3 Self-priming, flexible impeller pump of bronze, high speed Typical applications Engine cooling Design features Body: Bronze Impeller: EPDM Shaft: Stainless steel The shaft is mounted with two permanently lubricated ball bearings Seal: Lip seal Cam: Full Connection: ø 31,8 mm / 1¼" Performance curve 50 kPa 100 kPa...
- Page 4 Service instructions Description Art.no Body F6B-9 1/1-CAM 01-24713-1 Endcover F5B/F6B-9 01-45312-1 Impeller 08-812B-1 Gasket F5B/F6B-9 01-45315 Carrier complete 04-46408-01 Carrier complete 04-46408-02 Lip seal 16x28x7 DPSM 0.2233.001 Ball bearing 6203 2 RS1 ST 0.3431.742...
- Page 5 Disassembly 1. Remove the endcover and the gasket. 2. Pull out the impeller using two screw drivers or other suitable implements. 3. Remove the lip seal. 4. Remove the shaft with ball bearings by pressing on the shaft end from the impeller side.
- Page 6 ø 33,3 (2x) ø 31,8 (2x) Märkning på lock. Mark on endcover. 19,1 16,5 92,2 Original instructions...
