QUICK GUIDE for multiGuard® DIN9 3G
1. Prepare a SIM card so that the PIN code is 1234 or is deactivated. Mount the card in the unit. The
unit now has password 1234 or runs without a password. The card is mounted as shown below.
2. Connect inputs, outputs and power cable (230V/12-24V AC/DC). If necessary a rechargeable 9V
battery.
3. Turn on the power. A diode is lit. After approx. 60 secs. the diode flashes approx. every 2 secs. and
the unit is ready.
DIP-switch for analog input
1 ON:
0-10 VDC
2 ON:
0/4-20 mA
3 ON:
PT-100
4 ON:
Profort temperature sensor
All OFF:
digital input
Ver. 4.03
Installation

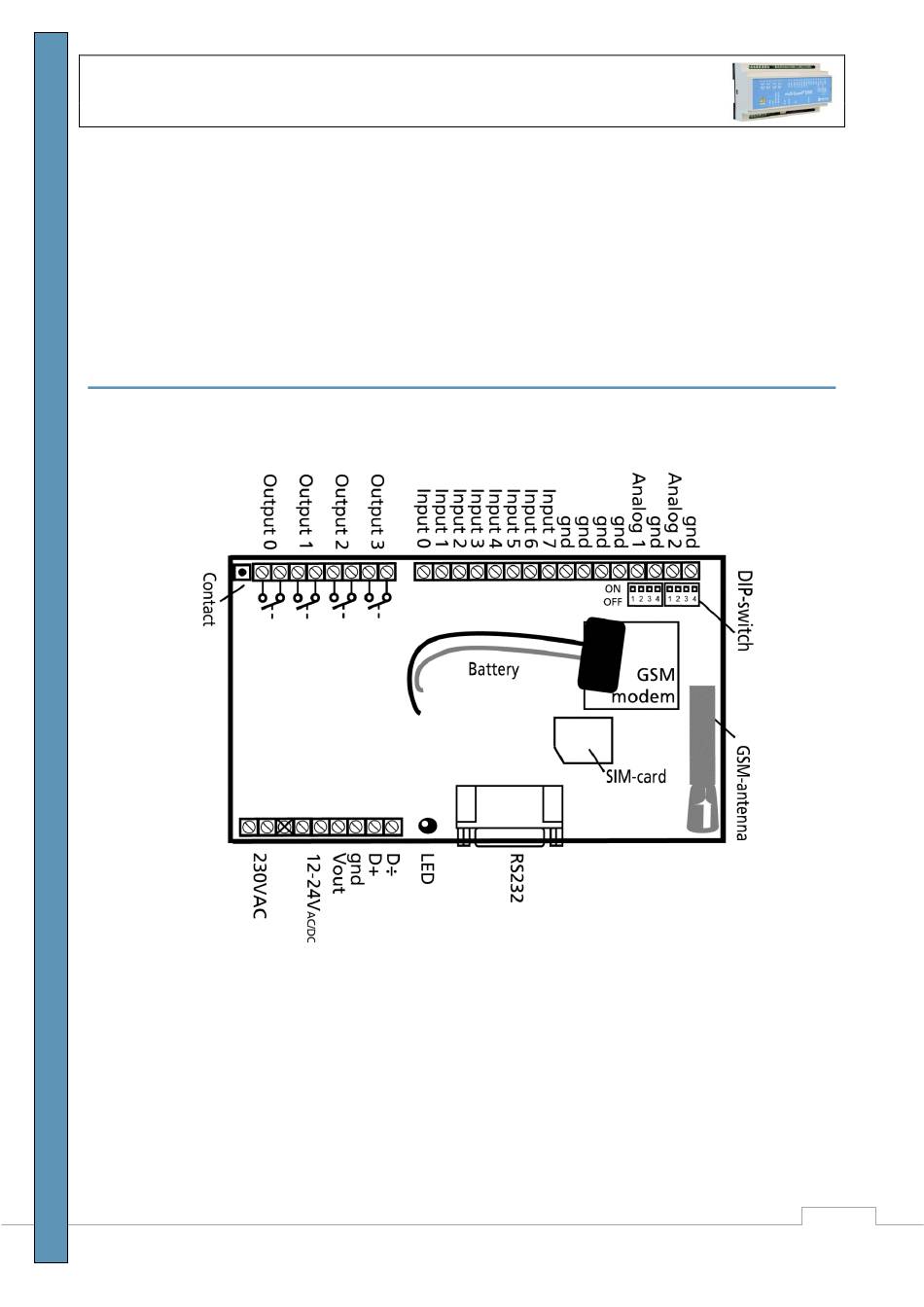

multiGuard DIN9 interior
Voltage
Output:
Input, digital: max. 24 VDC
Input, analog: max. 0-10 VDC
www.profort.com
AC max. 230 VAC, 6A
DC max. 30 VDC, 6A
max. power 2 mA
Only connect voltage when the
DIP-switch 1 is on, and 2-4 are
off
Pg.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the multiGuard DIN9 3G and is the answer not in the manual?

Questions and answers

Related Manuals for Profort multiGuard DIN9 3G

Summary of Contents for Profort multiGuard DIN9 3G

  • Page 1 0/4-20 mA DC max. 30 VDC, 6A 3 ON: PT-100 Input, digital: max. 24 VDC 4 ON: Profort temperature sensor max. power 2 mA All OFF: digital input Input, analog: max. 0-10 VDC Only connect voltage when the DIP-switch 1 is on, and 2-4 are www.profort.com...
  • Page 2 3. Create a new unit in the list and choose multiGuard DIN9 as unit. When you press SAVE the portal sends a text message to the unit, which connects it to the Profort server via GPRS/Internet on the SIM-card. The USERNAME of the unit will now be its telephone number (to be used, if controlling the unit via the Profort app).
  • Page 3 0-10 V (DIP-switch 1=ON) 0 10 0-20 mA. (DIP-switch 2=ON) 0 20 4-20 mA. (DIP-switch 2=ON) -5 20 PT100. (DIP-switch 3=ON) -309 115 Profort PTC. (DIP-switch 4=ON) -132 63 1234 V1 M 5 30 Add 2 alarm points The unit sends alarm e.g. when temperature passes 5 and 30 degrees C.
  • Page 4 ‘TEXT’ is sent (‘1234’ omitted in macros). temperature Additional help: see the manual on the CD or on www.profort Control with call from telephone Call the unit. Press 1234 (password) when the connection is established, and await two ‘beeps’. Press the desired code and hang up.
  • Page 5 3. If button is pressed down after 7 secs., an additional “beep” will be heard after 14 secs. The ‘sabotage’ alarm is hereby activated. See more in the manual or log on Internet management via www.profort.com www.profort.com Ver. 4.03...

  • Page 6: Voice Message

    #3 for input 3 3 secs. #96: sabotage 3 secs. #4 for input 4 3 secs. #97: connecting 3 secs. #5 for input 5 3 secs. #98: disconnecting secs. #6 for input 6 3 secs. #7 for input 7 3 secs. www.profort.com...

  • Page 7: Specifications

    Voice memory 16 messages of 3 secs. each Antenna 1 internal antenna for GSM modem. Possibility of adding external antenna (Profort-no. 369003) with 2,5 m cable and 5 m extension (Profort no. 301110) or 10 m extension (Profort no. 301111) www.profort.com...
  • Page 8 12 VDC power supply (inclusive)  3,6 V Li-ion back-up battery (inclusive)  Design box for wall mount  Plug for external IR-transmitter IP-65 box for multiGuard® DIN4/6/9-series  Waterproof box  DIN-rail for 4/6/9 modules  3 PG inputs www.profort.com...
