QUICK GUIDE for multiGuard® DIN9 3G
1. Prepare a SIM card so that the PIN code is 1234 or is deactivated. Mount the card in the unit. The
unit now has password 1234 or runs without a password. The card is mounted as shown below.
2. Connect inputs, outputs and power cable (230V/12-24V AC/DC). If necessary a rechargeable 9V
battery.
3. Turn on the power. A diode is lit. After approx. 20 sec. the diode flashes approx. every 2 sec. and the
unit is ready.
DIP-switch for analog input
1 ON:
0-10 VDC
2 ON:
0/4-20 mA
3 ON:
PT-100
4 ON:
Profort temperature sensor
All OFF:
digital input
Ver. 4.01
Installation

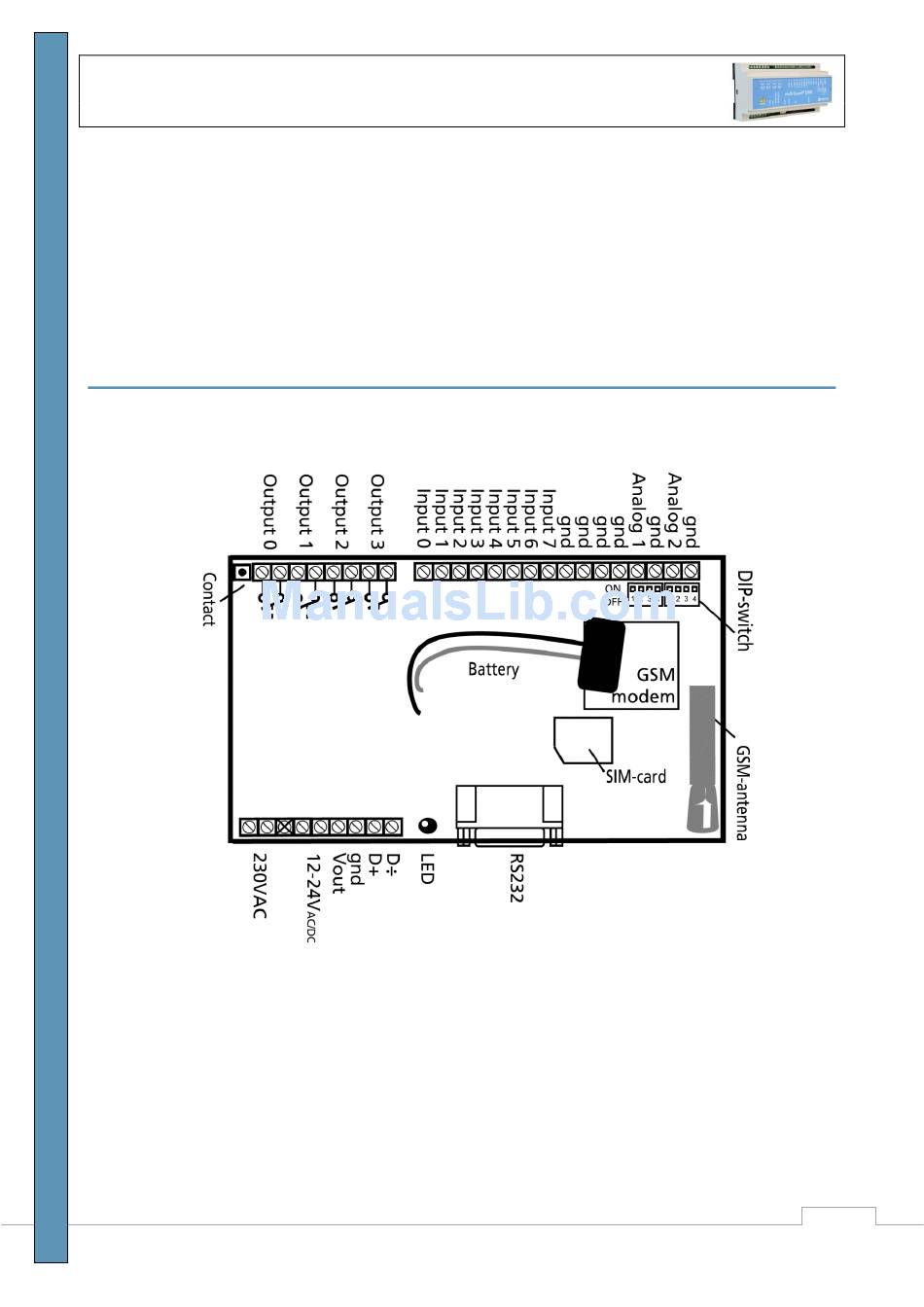

multiGuard DIN9 interior
Voltage
Output:
Input, digital: max. 24 VDC
Input, analog: max. 0-10 VDC
www.profort.com
AC max. 230 VAC, 6A
DC max. 30 VDC, 6A
max. power 2 mA
Only connect voltage when the
DIP-switch 1 is on, and 2-4 are
off
Pg.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the MultiGuard and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Profort MultiGuard

Summary of Contents for Profort MultiGuard

  • Page 1 QUICK GUIDE for multiGuard® DIN9 3G Installation 1. Prepare a SIM card so that the PIN code is 1234 or is deactivated. Mount the card in the unit. The unit now has password 1234 or runs without a password. The card is mounted as shown below.
  • Page 2 USB-port and wait until driver is installed. You can find driver under ‘Download’ on www.profort.com. 2. Install the Profort PC program on a computer with Windows. Download the program from www.profort.com. Start the program and enter the product key specified on the webpage.
  • Page 3 0-10 V (DIP-switch 1=ON) 0 10 0-20 mA. (DIP-switch 2=ON) 0 20 4-20 mA. (DIP-switch 2=ON) -5 20 PT100. (DIP-switch 3=ON) -309 115 Profort PTC. (DIP-switch 4=ON) -132 63 1234 V1 M 5 30 Add 2: Alarm The unit sends alarm e.g. when temperature points passes 5 and 30 degrees C.
  • Page 4 ‘TEXT’ is sent (‘1234’ omitted in macros). temperature Additional help: see the manual on the CD or on www.profort Control with call from telephone Call the unit. Press 1234 (password) when the connection is established, and await two ‘beeps’. Press the desired code and hang up.
  • Page 5 3. If button is pressed down after 7 secs., an additional “beep” will be heard after 14 secs. The ‘sabotage’ alarm is hereby activated. See more in the manual or log on Internet management via www.profort.com www.profort.com Ver. 4.01...

  • Page 6: Voice Message

    #3 for input 3 6 sec. #96: sabotage 3 sec. #4 for input 4 6 sec. #97: connecting 3 sec. #5 for input 5 6 sec. #98: disconnecting sec. #6 for input 6 6 sec. #7 for input 7 6 sec. www.profort.com...

  • Page 7: Specifications

    Min. 18V max 30 V (24V DC) Inputs, analog 0-10V DC 0/4-24mA PT-100 Profort temperature sensor (007995) Serial connections RS232 for setup or connection to e.g. PLC Modbus for external units, e.g. energy meters Counter Max. 20Hz. Max. 1 mio. counts...
  • Page 8 12 VDC power supply (inclusive)  3,6 V Li-ion back-up battery (inclusive)  Design box for wall mount  Plug for external IR-transmitter IP-65 box for multiGuard® DIN4/6/9-series  Waterproof box  DIN-rail for 4/6/9 modules  3 PG inputs...
