INSTALLATION INSTRUCTIONS
CRANK STYLE
MICHEL'S INDUSTRIES, LTD.
P.O. BOX 119
ST. GREGOR, SK. S0K 3X0
PH:306.366.2184 FX:306.366.2145
EM: sales@michels.ca WWW.michels.ca
Advertisement
Related Manuals for Michel's Siderolling Tarp
Summary of Contents for Michel's Siderolling Tarp
-
Page 1: Installation Instructions

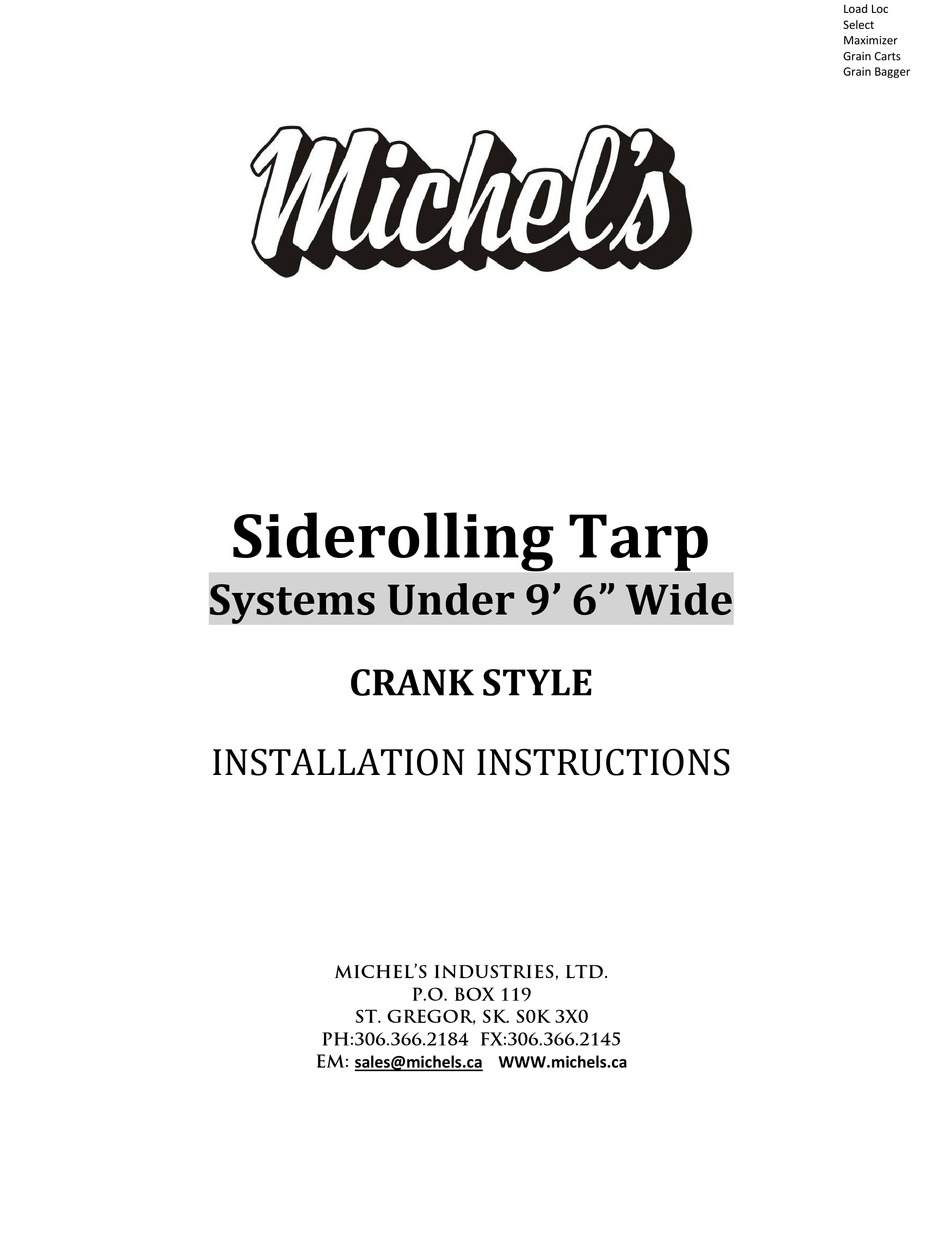

Load Loc Select Maximizer Grain Carts Grain Bagger Siderolling Tarp Systems Under 9’ 6” Wide INSTALLATION INSTRUCTIONS CRANK STYLE MICHEL’S INDUSTRIES, LTD. P.O. BOX 119 ST. GREGOR, SK. S0K 3X0 PH:306.366.2184 FX:306.366.2145 EM: sales@michels.ca WWW.michels.ca... - Page 2 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 This page intentionally left blank Michel’s Industries, Ltd., PH: 306.366.2184...
- Page 3 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 PLEASE READ ENTIRE INSTRUCTIONS BEFORE BEGINNING Note: THESE INSTRUCTIONS ARE FOR A STANDARD ROLLING TARP THAT LOCKS CLOSED ON THE DRIVER'S SIDE. IF ELECTRIC DRIVE, DO THE FOLLOWING FIRST AND THEN PROCEED TO THE ELECTRIC INSTALLATION INTRUCTIONS Step 1: Front Hood Installation (See Figure 1)
- Page 4 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Option 2 of 2: Farm Rear Box Hoods (See Figure 2) Procedure: Temporarily place the rear hood on the rear ledge of the box with its flange (D) inside the box. Place two bent angles (E) into the tubular supports (F), which are welded to the underside of the rear hood.
- Page 5 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Step 4: Optional Hoop Installation Please proceed to the Option which best suits your application. If order does not include hoops please proceed to step 5. Hoop Holder Spacer Installation (See Figure 4) Optional: Use the Hoop Holder Spacers if the top sill on the unit is less than 2 inches deep and does not have the adequate room to mount the hoops properly, as described in the below steps.
- Page 6 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Option 2 of 2: Aluminum Hoops with Dimple (Typically used with fiberglass center rod in tarp) (Figure 7, 8) Procedure: Hoops (J) are provided according to the length of the trailer. Equally space the hoop holders (G) along the length of the trailer and locate the top edge of the hoop holder 1inch down from the top edge of the inside trailer wall.
- Page 7 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Note: In most cases the filler plate will have to be cut shorter depending on the length of the trailer. Do not leave a space between the holdbacks and the filler plate. Figure 9 Note: When installing holdbacks on a unit with a side wall as shown in Figure 9A mount a spacer behind the flat to prevent...
- Page 8 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Step 7: Tarp Stop Installation Please proceed to the Option which best suits your application. Option 1 of 2: Round Tarp Stop (See Figure 11) Procedure: Raise the roll-tube and place it on the top passenger side of the bows and end caps making sure that the roll tube spline is at the rear of the trailer.
- Page 9 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Figure 13 Optional Figure 12 Optional Figure 14 Optional Step 8: Spring Lock Bracket Installation (See Figure 15) NOTE: If it’s a silage end gate the spring lock brackets get mounted on the side of the box to allow the end gate to open and close.
- Page 10 Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Optional: Universal Crank Lock Bracket Procedure: (See Figure 16-17) Assemble the spring lock bracket shown below. Bolt the vertical supports (A) to the middle supports (B), (If Crank Style) Bolt steel retainers (C) and plastic spring retainers (D) with a 3/8"x1-1/2" hex bolts, flat washer and nylon nut. Bolt the horizontal supports (E) to the mounting brackets (F) and the middle supports (B) with 3/8"...
-
Page 11: Step 10: Tension Control Adjustment
Michel’s Industries, Ltd. Generic Siderolling Instructions Rev: Feb 22/17 Step 10: Tension Control Adjustment Option 1 of 2: Beveled Cable Pulley Installation (See Figures 19-21) Note: When rolling the tarp to the open position, tension must be kept on the opposite end of the crank to keep the tarp rolling evenly. - Page 12 WARRANTY: Michel's Industries warrants their products for a period of one year from date of purchase. Any parts returned to Michel's Industries LTD. will be shipped prepaid and will be returned F.O.B. St. Gregor, Sk. Canada. We will not assume responsibility for shipping, labor or travel expenses.
