HOW TO USE THESE INSTRUCTIONS
Please read these instructions carefully to familiarize yourself with the required tools, materials, and installation sequences.
Follow the sections that pertain to your particular installation. This will help you avoid costly mistakes. In addition to proper
installation, read all operating and safety instructions.
All information in these instructions is based upon the latest product information available at the time of publication. Kohler
India reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
These instructions contain important care, cleaning, and warranty information - please leave instruction for the consumer
SUPPLIED PARTS
1. 1156383.............................................................Strainer Assy
2. 1047521 .........................................................Plastic Anchors
3. 1042536 ......................................................................Screws
TOOLS AND MATERIALS REQUIRED (NOT SUPPLIED)
10"(254MM) adjustable wrench
Metal file (file cut)
Tape measure
Tubing cutter
ROUGHING-IN
* Fixture dimensions are nominal and confirm to tolerances by ASME Standard A112. 19.2M.
1106206-IN01
Level
Hacksaw
Putty knife
K-5016IN-ER
3/4" SPUD
288mm
368mm
410mm
166mm
2" N.P .S.
TAP
422mm
ROUGH IN DIMENSIONS
4. 18376-AA...................................................Urinal Spud Assy
5. 18766-AA .................................................Urinal Outlet Assy
6. 52046-AA..........................................................Hanger Assy
Screwdriver
Straight pipe coupling
Connection packing
346mm
165mm
518mm
805mm
TO FLOOR
*590mm
-1-
DEXTER

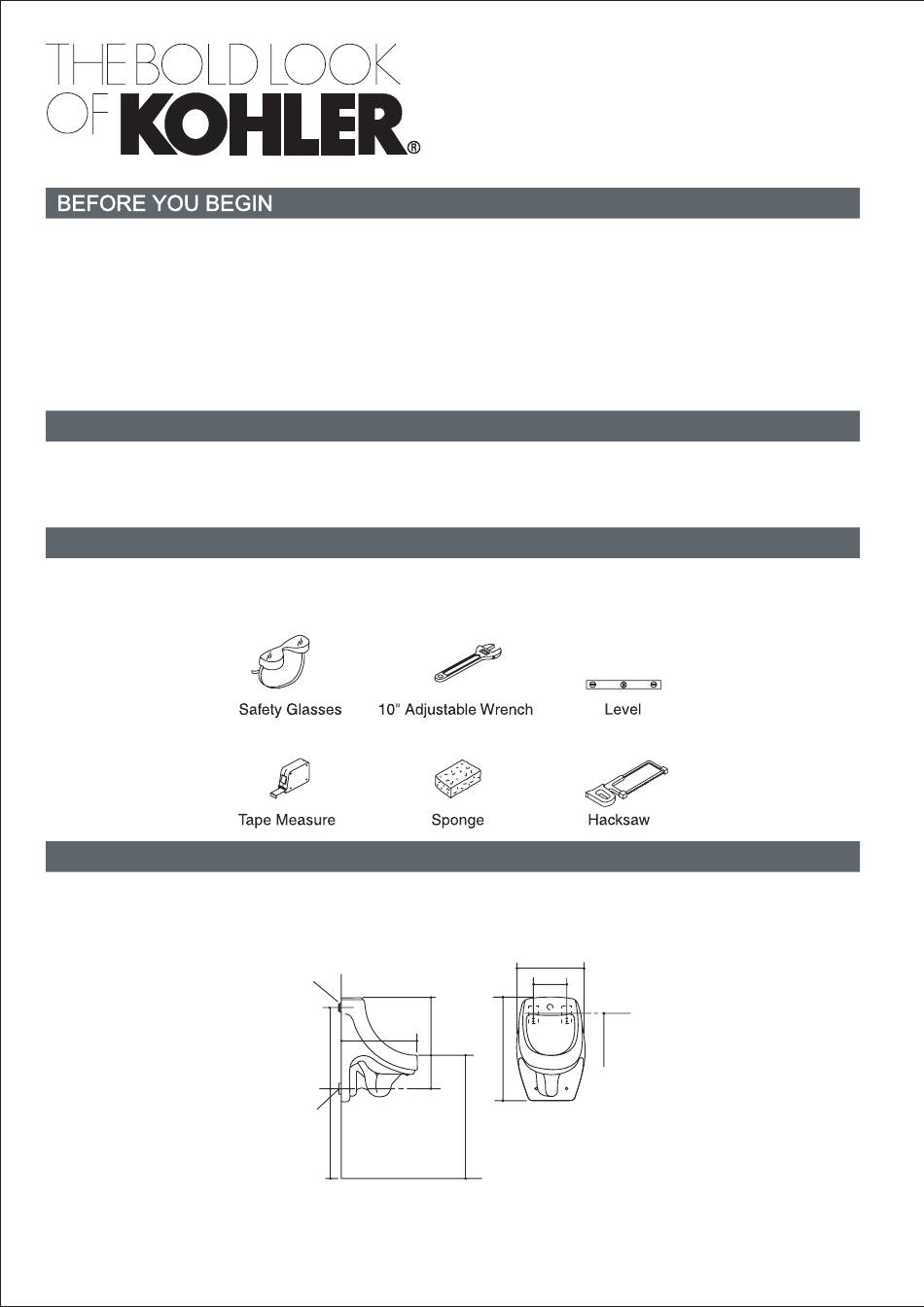

INSTALLATION INSTRUCTIONS
REAR INLET URINAL
K-5017 IN - ER
