Draper LMP400PD User Manual

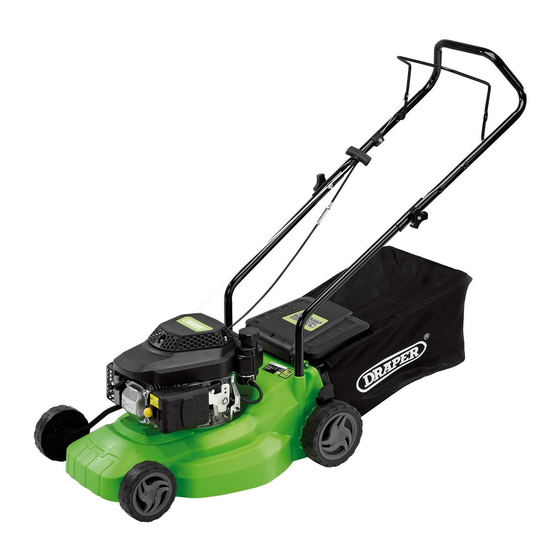

99cc 400mm petrol mower
Hide thumbs
Table of Contents

Advertisement

Quick Links

PETROL
MOWER
02580
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LMP400PD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper LMP400PD

Summary of Contents for Draper LMP400PD

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.

  • Page 3: Table Of Contents

    CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS .........................3-4 3. GUARANTEE 3.1 GUARANTEE ....................... 5 4. INTRODUCTION 4.1 SCOPE......................... 6 4.2 SPECIFICATION ......................6 4.3 HANDLING AND STORAGE ..................
  • Page 4 CONTENTS 10. MAINTENANCE 10.1 SPARK PLUG......................17 10.2 LUBRICATION INSTRUCTIONS ................17 10.3 CLEANING ......................... 17 10.4 ENGINE AIR CLEANER..................... 17 10.5 CLEAN AIR FILTER ....................17 10.6 CUTTING BLADE MAINTENANCE ................18 10.7 CUTTING BLADE....................... 18 10.8 BLADE MOUNTING TORQUE................... 19 10.9 FUEL AND LUBRICATION..................

  • Page 5: Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 6: Introduction

    For the cutting of grass lawns. Suitable for medium/large garden lawns up to 500 – 600M . Any other application is considered misuse. 4.2 SPECIFICATION Stock No........................... 02580 Part No..........................LMP400PD Displacement ..........................99cc Engine Horse Power ........................ 2.4hp Drive type .........................Hand push Desk material ......................... Plastic Speed (no load) ........................

  • Page 7: Health And Safety Information

    HEALTH AND SAFETY INFORMATION LAWN MOWER SAFETY WARNINGS LAWN MOWERS ADDITIONAL SAFETY Warning: Keep bystanders away. The engine shall be stopped before carrying out adjustment, cleaning or maintenance. Read user instructions before operating this machine. The lawn mower shall not be operated without either the entire grass catcher or the guard in place. Caution: Do not touch rotating blade.

  • Page 8: Operation

    HEALTH AND SAFETY INFORMATION - On multi-bladed machines, take care as rotating one blade can cause other blades to rotate. Operation. - Do not operate the engine in a confined space where dangerous carbon monoxide fumes can collect. - Mow only in daylight or in good artificial light. - Avoid operating the equipment in wet grass, where feasible.

  • Page 9: Maintenance And Storage

    HEALTH AND SAFETY INFORMATION shut-off valve, turn the fuel off at the conclusion of mowing. - Go slow when using a trailing seat. Maintenance and storage. - Keep all nuts, bolts and screws tight to be sure the equipment is in safe working condition. - Never store the equipment with petrol in the tank inside a building where fumes can reach an open flame or spark.

  • Page 10: Health And Safety Information Concerning The Use Of Fuels

    HEALTH AND SAFETY INFORMATION HEALTH AND SAFETY INFORMATION CONCERNING THE USE OF FUELS Fuels are inflammable and explosive. Reduce the risk of explosion and fire by: – Turning off and cooling the motor down before filling the tank with fuel. –...

  • Page 11: Technical Description

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Emergency stop handle. Spark plug. Finger nuts. Deck. Fuel tank. Silencer (muffler). Fuel tank cap. Cutting height adjustment. Oil sump cap/dipstick. Grass catcher. Air filter. Pull start handle. - 11 -...

  • Page 12: Unpacking And Checking

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.

  • Page 13: Assembling The Lawn Mower

    ASSEMBLING THE LAWN MOWER FOLDING HANDLE (FIG.1) Position the lower handle bars adjacent to the mounting bracket. FIG.1 ADJUSTMENT STRUCTURE (FIG.2) The adjustment structure is for adjusting operation height/angle of the main handle to suit the users comfort. Select the most comfortable fixing angle for your particular height (upper handle needs to be fitted to check handle height comfort).

  • Page 14: Mounting And Dismounting The Grass Bag

    ASSEMBLING THE LAWN MOWER MOUNTING AND DISMOUNTING THE GRASS BAG (FIGS 5 & 6) To fit: Raise the rear cover and hitch the grass bag on rear of mower. Lower the sprung plastic rear flap to secure the grass bag in position.

  • Page 15: Lawn Mower Instruction

    LAWN MOWER INSTRUCTION BEFORE STARTING This machine is not 2 stroke - fuel & oil must not be mixed. This lawn mower is fitted with a air cooled 4 stroke petrol engine. Engine oil should be a high grade ISO VG 100 (SAE 30/10W-40). Important: The engine is supplied without any oil and must be filled before attempting to start.

  • Page 16: Operation Procedures

    LAWN MOWER INSTRUCTION OPERATION PROCEDURES During operation, tightly hold the emergency stop handle with both hands. Note: During operation, when the emergency stop handle is released, the engine will stop and thus stopping the lawn mower from operating. TO STOP ENGINE Caution: The blade continues to rotate for a few seconds after the engine is shut off.

  • Page 17: Maintenance

    10. MAINTENANCE 10.1 SPARK PLUG Use only original replacement spark plug. For best results, replace the spark plug every 100 hours of use. 10.2 LUBRICATION INSTRUCTIONS CAUTION: DISCONNECT SPARK PLUG BEFORE SERVICING. Wheels Lubricate the ball bearings in each wheel at least once a season with a light oil.

  • Page 18: Cutting Blade Maintenance

    10. MAINTENANCE 10.6 CUTTING BLADE MAINTENANCE (FIG 18) Caution: Be sure to disconnect and ground the spark plug wire before working on the cutting blade to prevent accidental engine starting. Protect hands by using heavy gloves or a rag to grasp the cutting blades. Remove the hex bolt and washer which hold the blade and blade adapter to the engine crankshaft.

  • Page 19: Blade Mounting Torque

    10. MAINTENANCE 10.8 BLADE MOUNTING TORQUE Centre Bolt 40Nm.min, 54Nm.max. To insure safe operation of your unit, ALL nuts and bolts must be checked periodically for correct tightness. After prolonged use, especially in sandy soil conditions, the blade will become worn and lose some of the original shape. Cutting efficiently will be reduced and the blade should be replaced.

  • Page 20: Troubleshooting

    11. TROUBLESHOOTING 1.1 TROUBLESHOOTING Problem. Probable Cause. Remedy Suggested Engine fails to Throttle choke not in the Move throttle choke to correct start. correct position for the position. prevailing conditions. Fill tank with fuel. Fuel tank is empty. Clean air cleaner element. Air cleaner element is dirty.

  • Page 21: Explanation Of Symbols

    12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS When mowing, please wear the glasses and ear Read operator’s manual. plugs to defend the operator himself. When repairing, please Pay more attention to the remove the spark plug, operator’s hands and feet then repair it according to to avoid injury.

  • Page 22: Disposal

    13. DISPOSAL 13.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 23 NOTES - 23 -...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
