** After purchase, please check the battery and charge the battery before use.
** Please refer to the FAQ section on the Aurender homepage for any information you do not nd here.

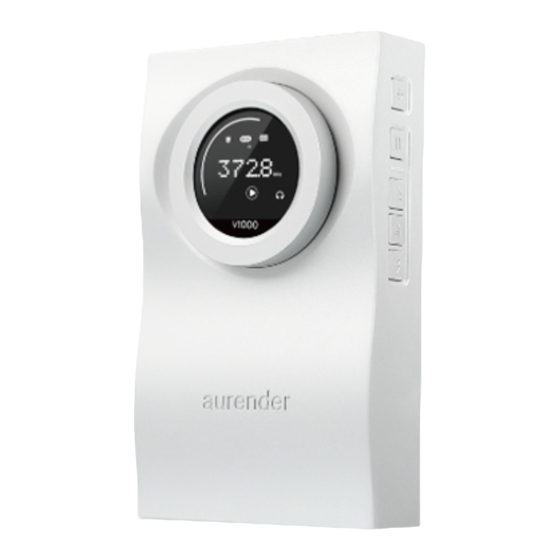

Product Description

Portable DAC & Headphone Ampli er
- The Aurender FLOW is a portable High Fidelity Headphone Amp.
- Capable of playing up to 32bit/384KHz PCM and DSD128 (DoP).
Portable Storage Device Function
-The USB2.0 and USB3.0 ports enable fast data transfers. In addition to video, audio,
image les, the FLOW can also be used to store business les, presentations, back-up and
other data.
-Can be used as a storage device with desktop PCs, laptops, notebooks and is
compatible with a variety of OS systems.
https://www.aurender.com/page/manual-flow
2/12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLOW V1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aurender FLOW V1000

Summary of Contents for Aurender FLOW V1000

  • Page 1: Product Description

    ** After purchase, please check the battery and charge the battery before use. ** Please refer to the FAQ section on the Aurender homepage for any information you do not nd here. Product Description Portable DAC & Headphone Ampli er - The Aurender FLOW is a portable High Fidelity Headphone Amp.
  • Page 2 7/27/2018 AURENDER - Reference Music System -You can play music stored in FLOW's mSATA driver from PC or Mac * You need to format the mSATA disk after you install. Please refer to the OS (Windows, Mac) manual for formatting mSATA. The procedure is the same as formatting HDDs.
  • Page 3 Android For some Android devices with its various version of software, FLOW V1000 could not operate normally. O cially  the Android devices will not be supported by FLOW V1000. Next click shows the Charging mode CHG+ : Always charge CHG- : Always no charge CHGA- : Charge Automatic.
  • Page 4 7/27/2018 AURENDER - Reference Music System mSATA Setting mST : Next click shows the status of mSATA drive installed. mST- : mSATA not installed mST+ : mSATA installed * You can set mSATA to not being used even though mSATA drive is installed.
  • Page 5 7/27/2018 AURENDER - Reference Music System dsd2 : BW=60 kHz in DSD dsd3 : BW=70 kHz in DSD To select the Headphone Output or Line Out. VAR : Headphone Output with volume control feature 2V : Fix the output voltage 2V rms ...
  • Page 6 7/27/2018 AURENDER - Reference Music System Display The display shows the volume level, audio le data, battery and other information.    On when USB Host is connected   On when optical connection is connected   On when the le played is DSD, it will show also the bit rate of DSD 64 or 128   Battery gauge meter.

  • Page 7: Operation

    7/27/2018 AURENDER - Reference Music System   Displays various information such as sampling rate, volume level and the menu mode   Changes according to the volume level Operation Using the USB Input (PCs and other devices with USB Audio) The USB A type cable provided with the FLOW should be connected to the USB Audio output of the musical source. ...
  • Page 8 7/27/2018 AURENDER - Reference Music System *FYI, the SAMSUNG mSATA is an example of the mSATA drive which is compatible with the FLOW *Please follow the instructions below when installing a new mSATA SSD. Remove the 4 screws on the rear panel of the main case.
  • Page 9 7/27/2018 AURENDER - Reference Music System The FLOW driver for PCs with Windows OS can be downloaded from the Aurender website at (www.aurender.com). This USB Audio Driver enables the PCs with Windows OS to be connected to and used with the Aurender FLOW.

  • Page 10: Battery Charging

    7/27/2018 AURENDER - Reference Music System Installing drivers for Mac     Mac does not require installing of drivers  Battery Charging It is strongly recommended that only the provided battery charger be used.  Should another charger type have to be used, the output voltage must be 5V/2A.
  • Page 11 7/27/2018 AURENDER - Reference Music System Audio Output Termnial 1/4 inch(6.35mm) Headphone Jack Max Audio Output Level 5.1Vrms mSATA Slot For Optional mSATA storage (User installable) THD+N Max -114dB IMD(SMPTE) Max -112dB Dynamic Range Max 122dB Output Power 600 ohm -> 43mW 300 ohm ->...
