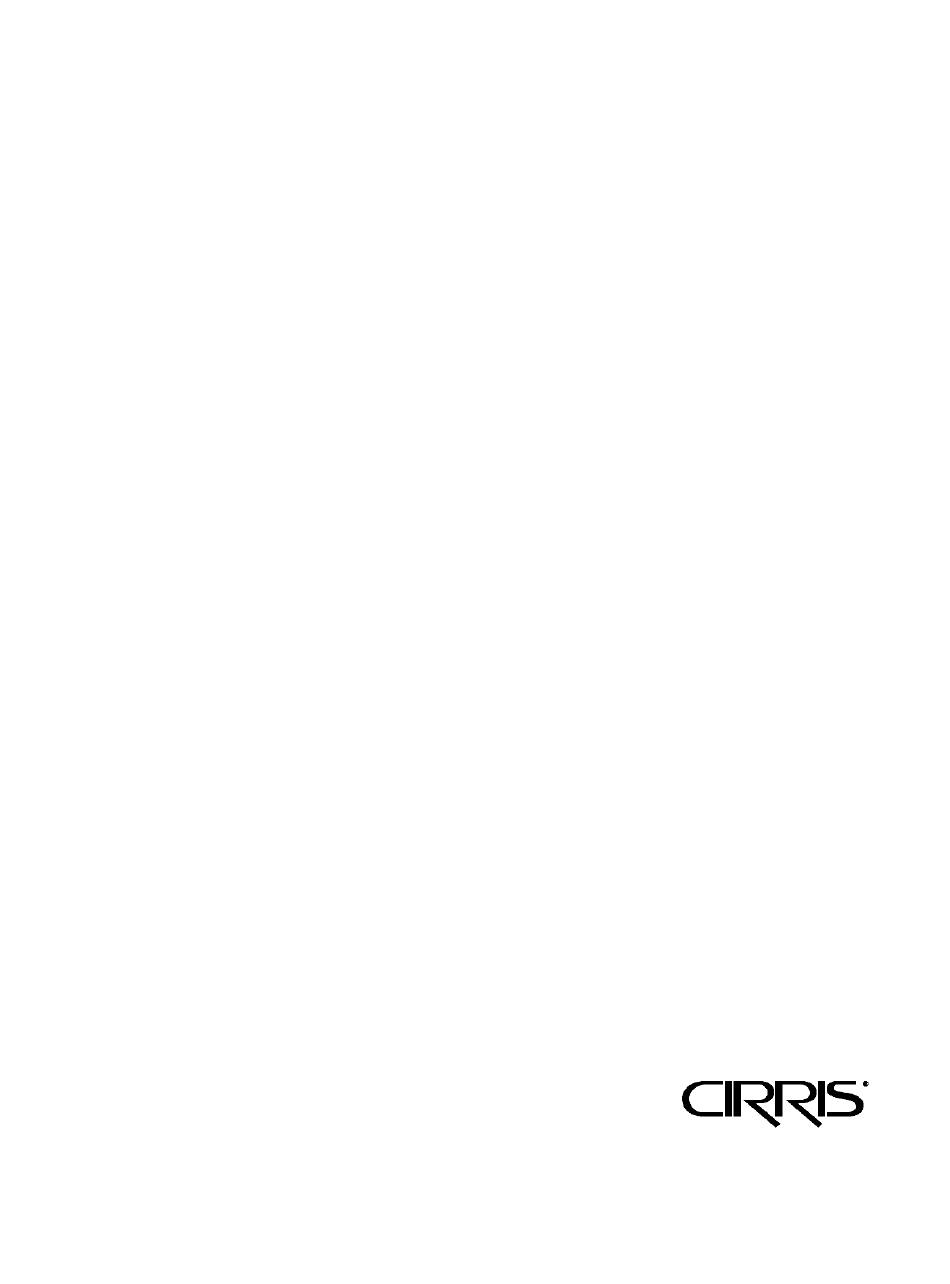

- Page 1 Signature 1100R+ Performance Verification Manual Version 2012.3.0 June 25, 2013 (ISO 9001 Certified)
- Page 2 Signature 1100R+ Performance Verification Manual Version 2012.3.0 Copyright 2004 by Cirris Systems Corporation All Rights Reserved Cirris Systems Corporation 1991 W. Parkway Boulevard Salt Lake City, Utah 84119...
-
Page 3: Table Of Contents
Table of Contents Introduction ___________________________________________________________ 1 Disclaimer __________________________________________________________________ 1 Parts List ___________________________________________________________________ 1 Setting Up _____________________________________________________________ 2 Performance Verification Certificate and Data Sheet _______________________________ 2 Install Add-on Scanners _______________________________________________________ 2 Plug in the Tester ____________________________________________________________ 2 Signal Routing Sytem Test ________________________________________________ 3 Resistance Measurement System Test ______________________________________ 5 Resistance Threshold System Test __________________________________________ 7 500k Threshold Test __________________________________________________________ 7... -
Page 4: Introduction
You should run performance verification on your 1100R+ tester at least once a year, and any time you suspect that the tester is not operating properly. If any step in the performance verification procedure fails, send the tester back to Cirris for repair. No external adjustments can be made to fix the tester. -
Page 5: Setting Up
Setting Up Performance Verification Certificate and Data Sheet The Easy Touch Performance Verification Certificate and the Easy Touch Verification Data Sheet are at the end of this manual. You can record verification data on these documents for your records. If you choose to use these documents, make photocopies to maintain master copies for future use. -
Page 6: Signal Routing Sytem Test
Signal Routing Sytem Test 1. From the tester’s Main Menu, press Set Up Test Program, Create New Test, and then press Set Learn Settings. Set the Learn Settings to the following values: Learn Settings Setting Value .1 Ω Connection Resistance 5M Ω... - Page 7 4. Remove the Zero Ohm Adapter and place it in the J3-J4 position as shown. 5. From the Main Menu, press Set Up Test Program, Create New Test, and then press LEARN. The tester will learn the cable and display the CABLE LEARNED screen.
-
Page 8: Resistance Measurement System Test
Resistance Measurement System Test 1. From the Main Menu, press Set Up Test Program, and then Create New Test. 2. Press Set Learn Settings and set the Learn Settings to the following values: Learn Settings Setting Value .1 Ω Connection Resistance 5M Ω... - Page 9 5. Write the displayed resistance value on the Displayed Value blank found on the data sheet. Compare the resistance value displayed by the tester with the Resistor Value shown in the table on the data sheet. This value is also shown in the table below. •...
-
Page 10: Resistance Threshold System Test
Resistance Threshold System Test 500k Threshold Test 1. From the Main Menu, press Set Up Test Program and then Create New Test. 2. Press Set Learn Settings and set the Learn Settings to the following values: Learn Settings Setting Value 100k Ω... -
Page 11: 1M Threshold Test
1M Threshold Test 1. From the Main Menu, press Set Up Test Program and then Create New Test. 2. Press Set Learn Settings and set the Learn Settings to the following values: Learn Settings Setting Value 500k Ω Connection Resistance 1M Ω... -
Page 12: Threshold Test
5M Threshold Test 1. From the Main Menu, press Set Up Test Program and then Create New Test. 2. Press Set Learn Settings and set the Learn Settings to the following values: Learn Settings Setting Value 1M Ω Connection Resistance 5M Ω... -
Page 13: Capacitance Measurement System Test
Capacitance Measurement System Test 1. Install the Capacitance/4-Wire adapter in the J1-J2 position as shown here. 2. From the Main Menu, press Set Up Test Program and then Create New Test. Set the Learn Settings to the following values: Learn Settings Setting Value 1 Ω... - Page 14 5. At the CABLE LEARNED screen, press Verify Test. Verify the tester reports five connections. • 1 J1A001 J1A002 J1A003 J1A004 • 2 J1A005 J1A006 • 3 J1A007 J1A008 • 4 J1A009 J1A010 • 5 J1A011 J1A012 Check off Pass or Fail for each connection on the verification sheet under Capacitance Measurement Test.
-
Page 15: 4-Wire Measurement System Test
4-Wire Measurement System Test 1. Install the Capacitance/4-Wire adapter in the J1-J2 position on the tester as shown. 2. At the Main Menu, press Set Up Test Program, press the down button, and then press Load 4W Cal Test. The tester will display TEST RETRIEVED. 3. -
Page 16: Appendix
Appendix The following information can be used a guide for setting up a formal quality system in your organization. Quality Standards These standards are quality system requirements for organizations that perform quality tests and use calibrated equipment. Establishing a quality system according to quality standards ensures that tests are done competently and lends credibility to the organization. - Page 17 “asset numbers”, “NIST trace numbers”, “ID numbers”, and report numbers. For more information regarding the discontinued use of NIST numbers, contact Cirris for a copy of the position paper from the National Conference of Standards Laboratories.
- Page 18 1100R+ Performance Verification Certificate Name and Address of Organization: Certificate Number: Performed by: Verification Date: Due Date: Applicable Quality Standard(s): Procedure: 1100R+ Performance Verification Manual Version ___________ Temperature: Relative Humidity: Tester Serial Number: Instruments used: Serial Number Cal. Date Date Zero Ohm Adapter Resistor Leak Adapter Capacitance/Fourwire Adapter...
- Page 19 1100R+ Verification Data Sheet Date: ___________________ Tester Serial Number: _______________________ Tests Performed By: ___________________________________ Signal Routing System J Position Correct Displayed Pass Fail for Adapter Signature Signature J1-J2 7F5527-6M020 J3-J4 94C424-6M020 J5-J6 5CC1A1-6M020 J7-J8 D3A34A-6M020 J9-J10 51A15E-6M020 J11-J12 C50EFB-6M020 J13-J14 E93078-6M020 J15-J16 719A99-6M020...
- Page 20 Resistance Threshold System • 500k Ω Test Correct Displayed Pass Fail Signature Signature EB4F69-6H6E0 High Resistance Error Pass Fail between: J1B016 and J1A016 • 1M Ω Test Correct Displayed Pass Fail Signature Signature 75698A-6K6H0 High Resistance Error Pass Fail between: J1A022 and J1A023 •...
- Page 21 Capacitance Measurement System Correct Displayed Pass Fail Signature Signature 3F6323-MULTI Connection List Pass Fail 1 J1A001 J1A002 J1A003 J1A004 2 J1A005 J1A006 3 J1A007 J1A008 4 J1A009 J1A010 5 J1A011 J1A012 Correct Minimum Maximum Displayed Pass Fail Capacitance Capacitance Capacitance Value 1.41 µF 1.27 µF...
