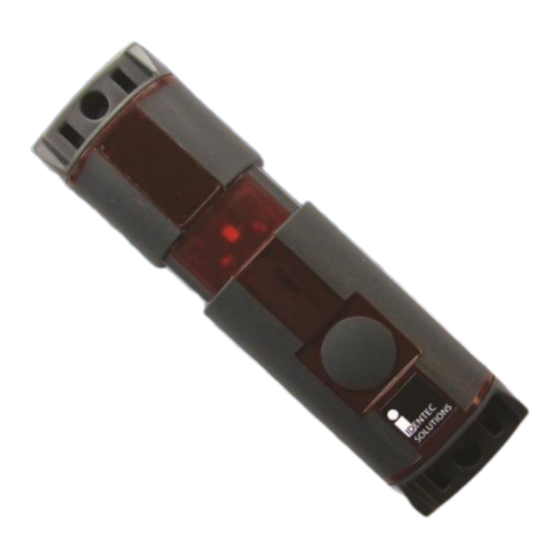

- Page 1 ILR 350 Series i-B350L S Installation and Operation Manual (preliminary)
- Page 2 Proprietary Notice This document contains confidential information proprietary to IDENTEC SOLUTIONS and may not be used or disclosed to other parties in whole or in part without prior written authorization from IDENTEC SOLUTIONS. Disclaimer and Limitation of Liability IDENTEC SOLUTIONS AG and its affiliates, subsidiaries, officers, directors, employees and agents do not make any express or implied warranties or representations with respect to such information including, without limitation, warranties as to non-infringement, reliability, suitability for a particular purpose and accuracy.
- Page 3 The user(s) of these products are cautioned to only use accessories and peripherals approved, in advance, by IDENTEC SOLUTIONS. The use of accessories and peripherals, other than those approved by IDENTEC SOLUTIONS, or any changes or modifications not expressly approved by the party responsible for compliance could void the users’...
-
Page 4: Table Of Contents
Contents INTRODUCTION ......................REPARATIONS ........ECOMMENDED ROCEDURE ......... . COPE OF THIS OCUMENT ............ESPONSIBILITY .......... . SSOCIATED OCUMENTS —V ..... . COPE OF ELIVERY ISUAL NSPECTION SAFETY PRECAUTIONS ......... TAG MOUNTING TECHNIQUES ..................5 .................... -
Page 5: Introduction
An additional performance check of the tags and a system test can now be done Scope of this Document This document is the users’ manual of the models i-B350 S and i-B350L S. This document is intended only for mechanical installation rsp. everyday use. -
Page 6: Safety Precautions
Safety Precautions Important Safety Note The devices described in this manual are for exclusive operation by trained employees. Only qualified personnel that know the potential dangers involved should perform the installation, settings, maintenance and repair of the units used. Operational Safety The correct and safe use of these systems assumes that operating and service personnel follow the safety measures described in the manual alongside the generally acceptable safety procedures. - Page 7 Spare Parts We recommend that only original products, spare and replacement parts authorized by IDENTEC SOLUTIONS be used for installation, service and repair. Otherwise IDENTEC SOLUTIONS does not accept any responsibility for materials used, work carried out or possible consequences.
-
Page 8: Tag Mounting Techniques
Tag Mounting Techniques Dimensional Drawing All dimensions in mm. Cable Straps The Tag can be mounted either with cable straps using the 2 slits at each end or using rivets or screws as described in the following 2 subchapters. Slits for mounting with cable straps VISIBILITY DELIVERED. -
Page 9: Rivets
Rivets 4 × 20 mm or 4 × 25 mm blind rivet (length depending on thickness of mounting plate) Bushing with 6/4.5 mm (15/64‖, 11/64‖) outer/inner diameter, 14.5 mm (37/54‖) length Important Information A temperature of at least +10 °C (+50 °F) must be maintained during riveting to prevent the casing from cracking. -
Page 10: Screws
Screws e.g. M4/#8 cylinder head or lenticular head screws e.g. 5/32‖ hexagonal locknut with 5/32‖ washer 5/32‖ hexagonal nut, but together with spring washer or 5/32‖ Nordlock washer Important Information Only screws with cylindrical heads are suitable for mounting the tag. We do not advise using counter- sunk screws. - Page 11 Configuration of the tag The i-B350L S is configured using the i-PROG M350L programming device. Important Note Do not open the housing! Configuration is done using the built-in air interface of the i-B350L S. In addition to the Broadcast mode the i-B350L S offers the following special functions that can be configured: ...
-
Page 12: Ping Rate
Ping Rate Note: This settings can be found in the ILR Tag Configuration software tool in the edit block ―Broadcast‖ Broadcast Interval: 0 = no broadcast messages are sent, value > 0 = Broadcast interval in seconds. This can be set in steps of 0.5 sec, from 0.5 to 300 seconds. ... -
Page 13: Information On
Push Button | User Data => max. 43 Bytes of user data Push Button | User Data | Marker => max. 32 Bytes of user data Information on Burst Settings The parameter ―Time between Bursts (Marker)‖ is not simply a delay time. It is in fact a timeslot. In this timeslot the tag chooses a random moment to do a single burst. -
Page 14: Maintenance
Parts or main components returned for repair or exchange must be handled with great care. PC cards must be returned in the appropriate ESD-protecting packaging material. All returns should include an error description and a short application overview and be sent to the local distributor or to: IDENTEC SOLUTIONS AG Service Department Millenium Park 2... -
Page 15: Technical Data
Technical Data Operating Data Operating frequency ILR-RFID 868 MHz (EU) or 920 MHz (NA), further frequencies on request Maximum transmission power < 1mW (EU / NA) Compatibility i-PORT M 350, i-CARD CF-350 Standards/Certification FCC Part 15 (US), ETSI EN 300 220 (EU) Communication Data Long-Range RFID (ILR, Beacon Technology) Read range broadcast Up to 500 m (1600 feet) free air*...
