- Page 1 User's Manual Energy Meter with Limiter Model KLW202 WOZNIAK RC TECH www.wozniakrctech.com form: 2017/04/001#0 Rev. 2.0...
-
Page 2: Table Of Contents
Table of Contents 1.Safety Precautions.....................2 2.Introduction.......................3 3.Specifications......................4 4.Getting started......................5 5.Menu..........................6 6.Limiter........................7 7.Warranty........................7 Copyright © 2017 by Klaudiusz Woźniak Vcc. All rights reserved. No part of this manual may be reproduced or transmitted in any form or by an means, analog, digital, electronic or mechanical, including imaging, photocopying and recording, for any purpose other than the purchaser's personal use without the written permission of Klaudiusz Woźniak Vcc. -
Page 3: Introduction
2. Introduction Energy Meter and Limiter KLW202 was designed for R/C boats with special needs such as high current consumption, water resistance. During production we use potting process, a complete electronic assembly is filled in a vacuum with a solid compound. The device maintains high measurement accuracy even after sinking. -
Page 4: Specifications
3. Specifications Specifications table: Current: 0 – 100 A ,200 A (CONTINUOUS) (PEAK) Battery voltage: 0 – 45 VDC Supply voltage: 4,5 – 6 VDC Supply current: 70 mA max Measured energy: 0 - 38000 Wh Energy resolution: 0,1 Wh Energy accuracy +/- 1 % for current above 5 A Sampling frequency... -
Page 5: Getting Started

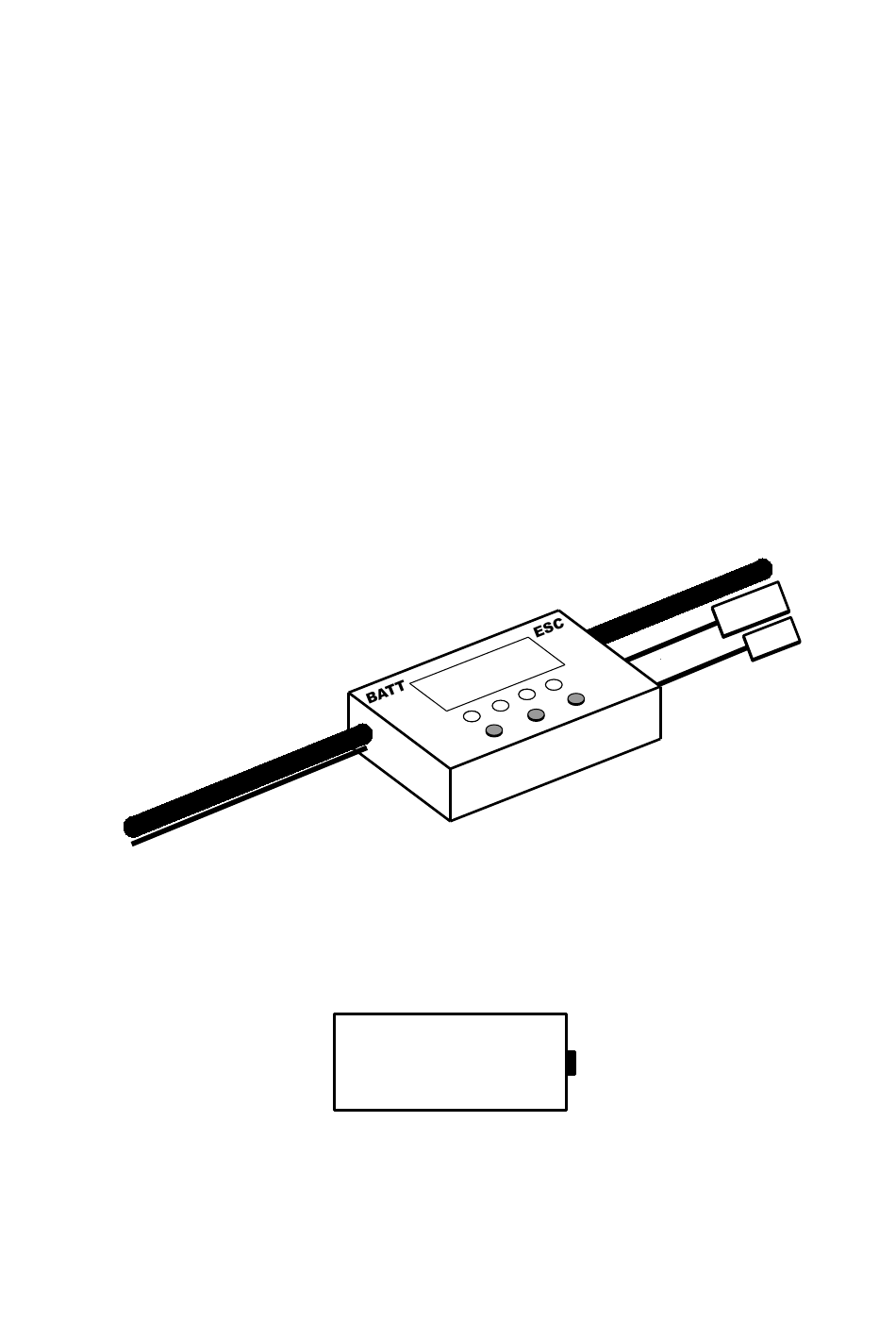

4. Getting started 4.1. Making connections The current is measured by BLACK cable, current flow from -ESC to -BATT cable. ● Connect this cable between battery negative and ESC negative terminal. The voltage is measured by RED +BATT cable. In the absence of ESC power (the kill ●... -
Page 6: Menu
5. Menu Push button The LED is on Hold button The LED flashes Software version Last result Energy[Wh] Energy [Wh] Start current Set start current SHIFT/+ threshold threshold MODE/- SHIFT/+ MODE/- Energy limit[Wh] Set energy limit SHIFT/+ no. 1 MODE/- Choose energy limit Set energy limit... -
Page 7: Limiter
. To select the automatic mode set "---", the pulse width will be measured with KLW202 turn on. The transmitter must be switched on in advance and the throttle set to minimum. To select the manual mode, enter... -
Page 8: Warranty
7. Warranty This device is covered by a 24-month manufacturer's warranty. At the time of any problems with proper functioning, first contact the store where the product was purchased, showing the purchase receipt, accurately describing the symptoms noted. The defects discovered during the guarantee period will be free of charge removed within 14 working days from the date of delivery to the manufacturer and the warranty period is extended by the repair duration.
