AUTOMOTIVE PRODUCTS, INC.
ITEM
QUANTITY
1
1
2
1
3
1
4
4
5
4
6
4
7
4
8
4
9
4
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING

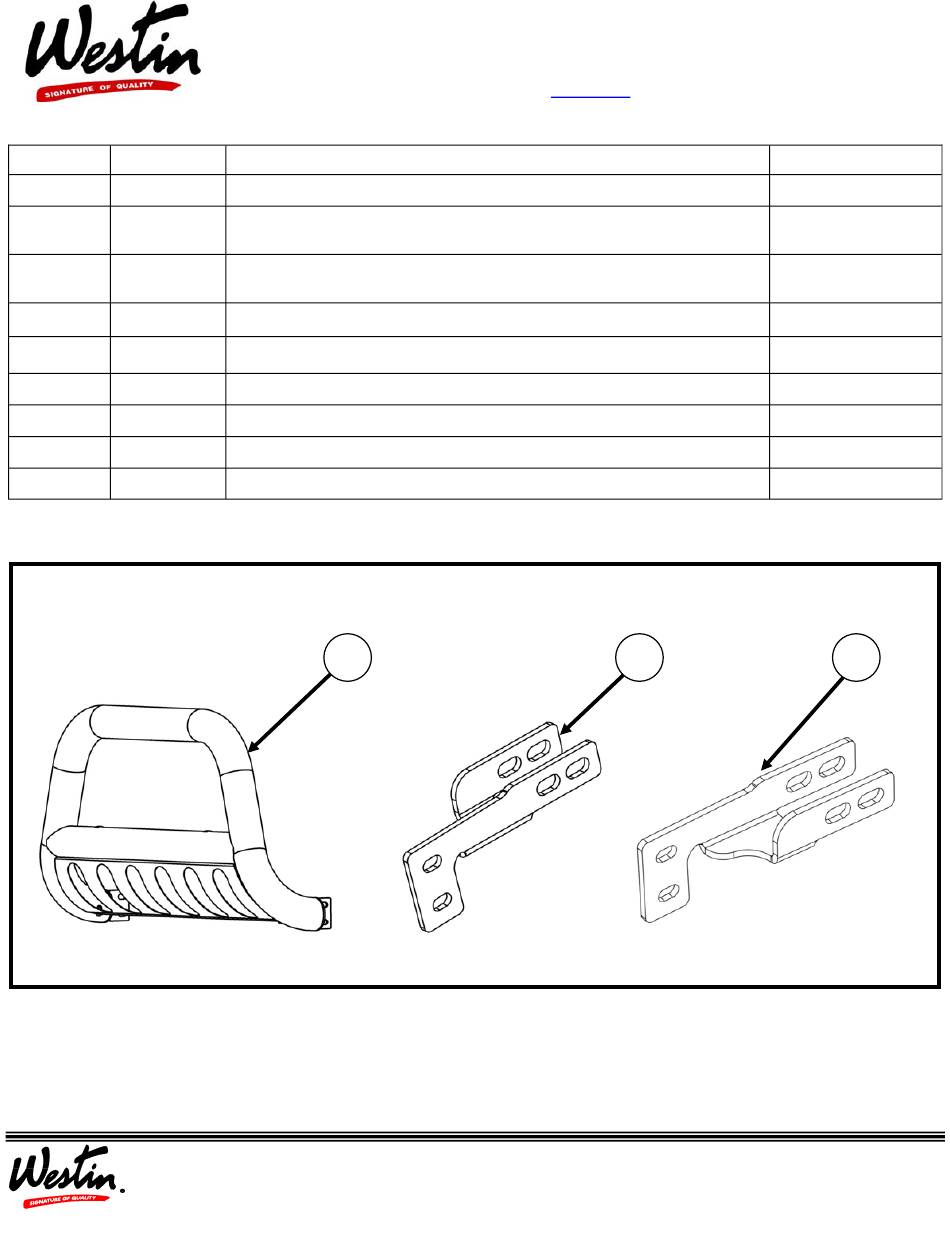

INSTALLATION INSTRUCTIONS
APPLICATION: 2015 CHEVY COLORADO/GMC CANYON
BULL BAR/SKID PLATE ASSEMBLY
DRIVER(LEFT) MOUNTING BRACKET
PASSENGER(RIGHT) MOUNTING BRACKET
M12-1.75X80 HEX HEAD CAP SCREW, CLASS 8.8 (YELLOW ZINC)
M12 FLAT WASHER, 24MM OD X 2.5MM THICK (YELLOW ZINC)
M12 SERRATED FLANGE NUT, CLASS 8 (YELLOW ZINC)
M10-1.50X30 HEX HEAD CAP SCREW (STAINLESS STEEL)
M10 BELLVILLE WASHERS (STAINLESS STEEL)
M10-1.50 SERRATED FLANGE NUT (STAINLESS STEEL)
1
APP PART# 31-5120
3"
BULL BAR
DESCRIPTION
1
TOOLS NEEDED
18MM SOCKET
18MM WRENCH
15MM WRENCH
16MM SOCKET
TORQUE WRENCH
2
RATCHET
3
Advertisement
Related Manuals for Westin 31-5120
Summary of Contents for Westin 31-5120
- Page 1 INSTALLATION INSTRUCTIONS APPLICATION: 2015 CHEVY COLORADO/GMC CANYON APP PART# 31-5120 3” BULL BAR AUTOMOTIVE PRODUCTS, INC. ITEM QUANTITY DESCRIPTION TOOLS NEEDED BULL BAR/SKID PLATE ASSEMBLY 18MM SOCKET DRIVER(LEFT) MOUNTING BRACKET 18MM WRENCH PASSENGER(RIGHT) MOUNTING BRACKET 15MM WRENCH M12-1.75X80 HEX HEAD CAP SCREW, CLASS 8.8 (YELLOW ZINC) 16MM SOCKET M12 FLAT WASHER, 24MM OD X 2.5MM THICK (YELLOW ZINC)
- Page 2 PROCEDURE NOTE: It may be necessary to remove/relocate the front license plate and license plate bracket. It is not required, but strongly rec- ommended. If local/state law requires a front license plate, license plate relocation kit is available. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instructions before attempting installation.
- Page 3 Vehicles without tow hooks: Cut out the indented area in both sides of the plastic bumper to clear the brackets as pictured in Figures 4 & 5, or cut along the rectangular cut line molded into the pocket. Select the driver side mounting bracket. Insert the bracket through the opening in the bumper and up to the tow hook mounting holes (FIG 6).
- Page 4 Bull bar hardware assembly Fig. 7 Final assembly on vehicle Fig. 8...
-
Page 5: Care Instructions
INSTALLATION COMPLETE CARE INSTRUCTIONS REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES. STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.
