AUTOMOTIVE PRODUCTS
ITEM
QUANTITY
1
1
2,3
2
4,5
2
6
2
7
2
8
2
9
2
10
4
11
2
12
2
13
2
14
2
15
2
16
2
17
2
18
2
19
1
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
32-3880 / 32-3885
ITEM 2
CARE INSTRUCTIONS
REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.
STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.
GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER.
INSTALLATION INSTRUCTIONS

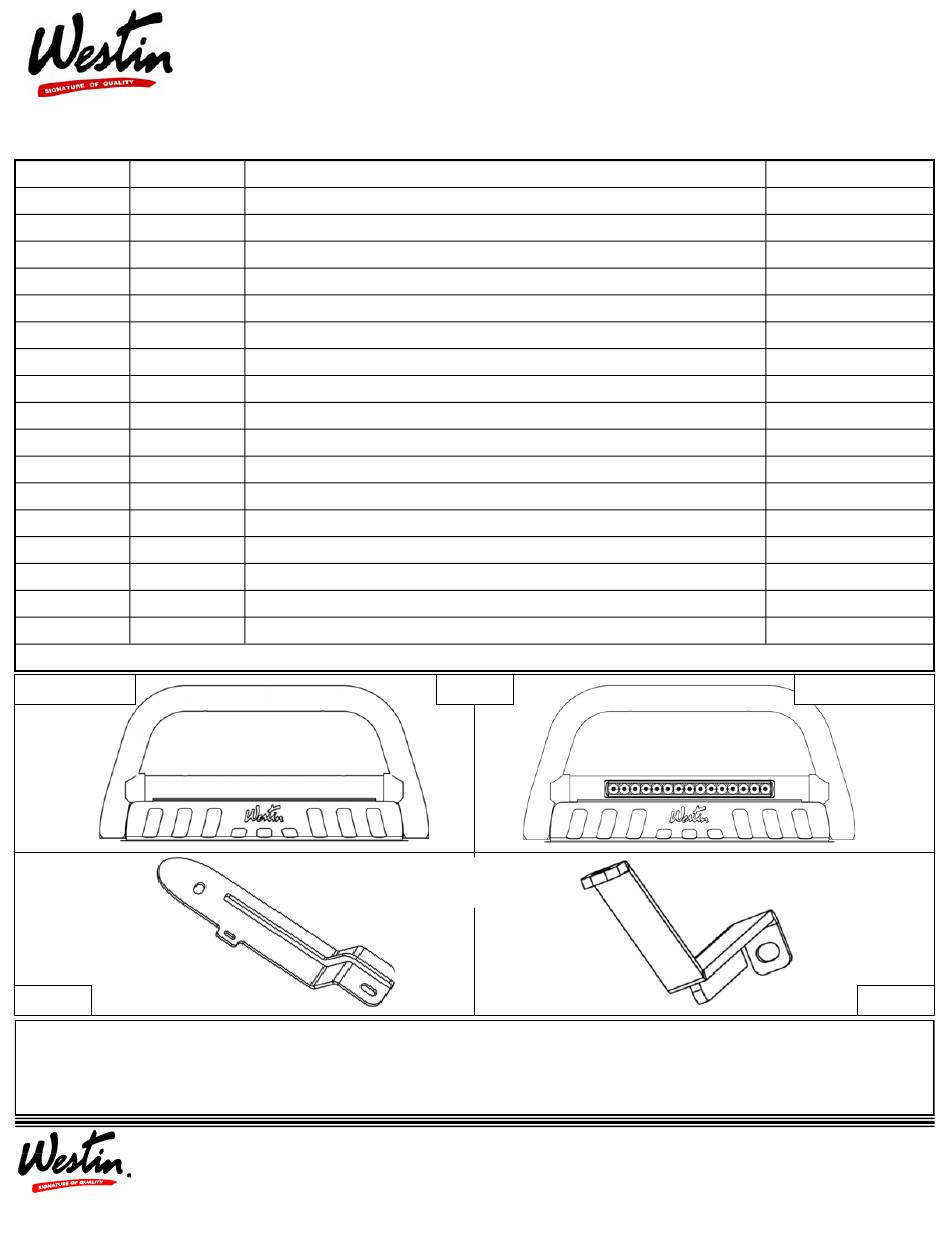

ULTIMATE BULL BAR
APPLICATION:
2016-2017 Toyota Tacoma
PART NUMBER:
32-3880, 32-3885, 32-3880L, 32-3885L
DESCRIPTION
ULTIMATE BULL BAR
MOUNT BRACKET, DRIVER(2) AND PASSENGER(3)
STRAP, DRIVER(4) AND PASSENGER(5)
M12 HEX HEAD CAP SCREW (YELLOW ZINC)
M12 FLAT WASHER (YELLOW ZINC)
M12 SPLIT LOCK WASHER (YELLOW ZINC)
1/4-20" BUTTON HEAD BOLT (YELLOW ZINC)
1/4" FLAT WASHER (YELLOW ZINC)
1/4-20" HEX LOCK NUT (YELLOW ZINC)
M10 BOLT PLATE (YELLOW ZINC)
M10 HEX NUT (YELLOW ZINC)
M10 FLAT WASHER (YELLOW ZINC)
M10 LOCK WASHER (YELLOW ZINC)
3/8-16" HEX SOCKET BUTTON HEAD SCREW (BLACK ZINC)
3/8 FLAT WASHER (BLACK ZINC)
3/8 SPLIT LOCK WASHER (BLACK ZINC)
LED WIRING HARNESS (09-12000-1)
ITEM 1
DRIVER SIDE ITEMS SHOWN,
PASSENGER SIDE ITEMS OPPOSITES
1
TOOLS NEEDED
3/16 ALLEN KEY
17MM WRENCH
19MM WRENCH
7/16 WRENCH
17MM SOCKET
19MM SOCKET
7/16 SOCKET
13MM SOCKET
RATCHET
TORQUE WRENCH
32-3880L / 32-3885L
ITEM 4
Advertisement
Related Manuals for Westin 32-3880
Summary of Contents for Westin 32-3880
- Page 1 INSTALLATION INSTRUCTIONS ULTIMATE BULL BAR APPLICATION: 2016-2017 Toyota Tacoma AUTOMOTIVE PRODUCTS PART NUMBER: 32-3880, 32-3885, 32-3880L, 32-3885L ITEM QUANTITY DESCRIPTION TOOLS NEEDED ULTIMATE BULL BAR 3/16 ALLEN KEY MOUNT BRACKET, DRIVER(2) AND PASSENGER(3) 17MM WRENCH STRAP, DRIVER(4) AND PASSENGER(5) 19MM WRENCH...
- Page 2 PROCEDURE 1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and understand all instructions before attempting installation. Failure to identify damage before installation could lead to a rejection of any claim. 2.
- Page 3 7. Loosely secure the mount brackets onto the mount location using the factory hardware located at the mounting location. See Figure 7. 8. With assistance locate and lift the bull bar assembly and loosely secure onto the previously installed mount brackets using (2) M12 hex head cap screws, (2) M12 flat washers, and (2) M12 split lock washers.
- Page 4 WIRING INSTRUCTIONS FOR 32-3885L: WESTIN recommends using a professional for this installation. CAUTION: 1. Disconnect ground connection from battery (-) to avoid accidental short circuits before attempting to connect electrical wires. 2. When running wires, avoid areas of excessive heat, vibration, pinch or rotation when securing harness to vehicle.
