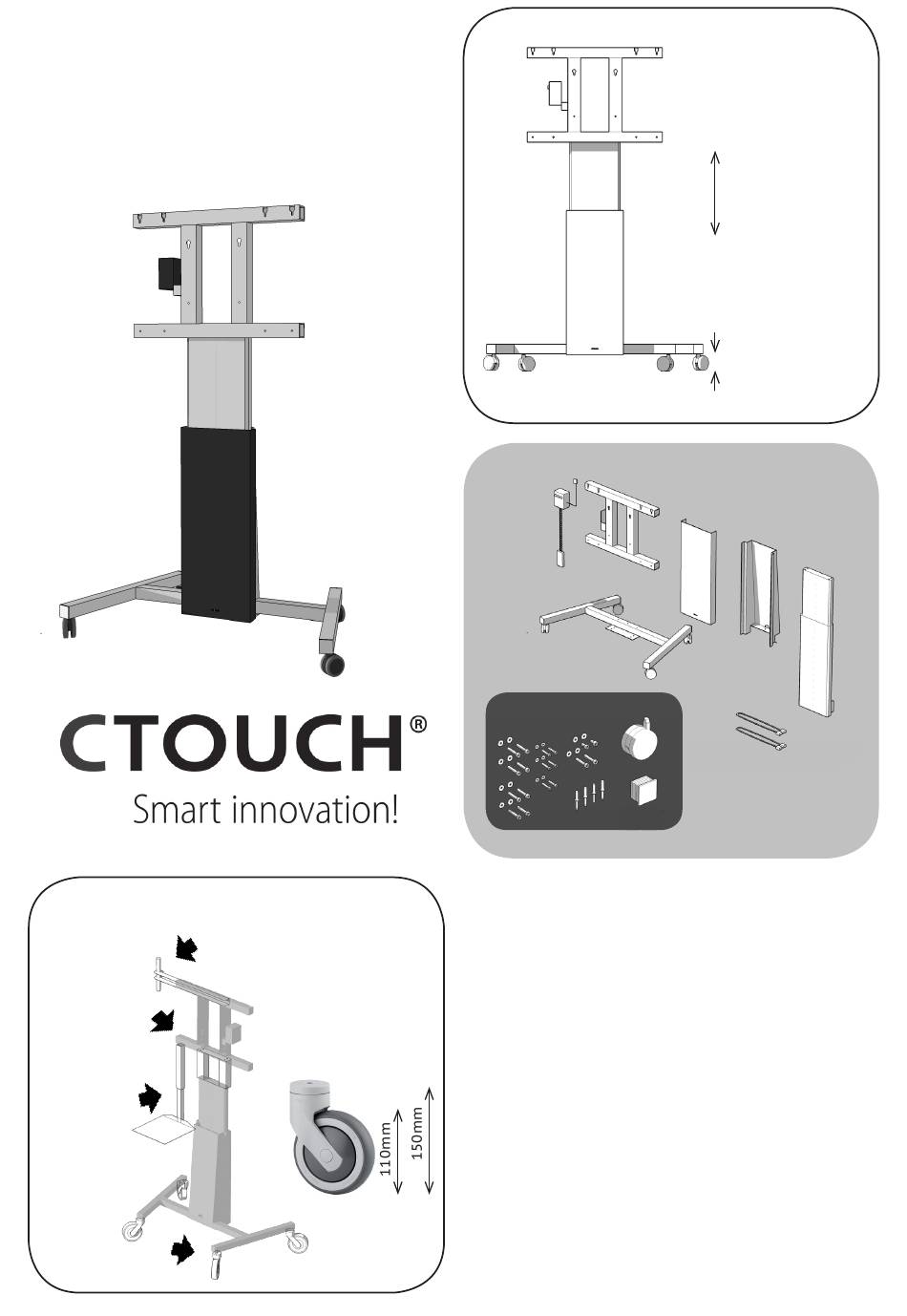

CTOUCH Wallom Mobile lift
Installation manual
Optional accessories:
For advanced use of your mobile lift solution
1. Pushrod
2. Extender
3. Tray
4. Wheels
Parts:
B
A
G
C
Mounting kit:
Parts:
A - Power supply
B - Interface
C - Base
D - Frontplate
E - Column
F - Electric lift
G - Remote
H - Powercable EU / UK
Changes or modifications void any warranty and exclude any liability.
This user manual includes detailed instructions for your product.
Figures and illustrations in this user manual are provided for reference
only and may differ from actual equipment appearance. Equipment
design and specifications may be changed without notice.
CTOUCHDSA151124
Vesa:
600x600mm
400x400mm
200x200mm
Height adjustable
500mm. stroke
length,centre
position monitor
1000mm - 1500mm
optional:
bigger wheels
80mm
D
E
F
H
Mounting kit:
4x M8x16
4x M8x65
7x M8x70
4x M6x8
19x M8 ring
4 x M6 ring
1x Cable holder
4x End caps
4x Wheels
4x Wheel bolts
WWW.CTOUCH.EU
Advertisement
Related Manuals for Ctouch Wallom mobile lift
Summary of Contents for Ctouch Wallom mobile lift
-
Page 1: Installation Manual
CTOUCH Wallom Mobile lift Installation manual Vesa: 600x600mm 400x400mm 200x200mm Height adjustable 500mm. stroke length,centre position monitor 1000mm - 1500mm optional: bigger wheels 80mm Parts: Mounting kit: Optional accessories: Parts: Mounting kit: For advanced use of your mobile lift solution... - Page 2 Then place the monitor on the interface (B) and fix the top screws. Fasten the lower and top bolts and the lift is ready to use. monitor M8x16 + ring 5mm. 2 x M8x16 2 x M8x65 4 x M8ring WWW.CTOUCH.EU CTOUCHDSA151124...
