CTOUCH Wallom WS
Installation manual
Optional accessories:
PC tray
Fits most mini PCs or
other small format
players
Parts:
A
B
Mounting kit:
Parts:
A - Nylon block
B - Interface Bracket
C - Wall bracket
Changes or modifications void any warranty and exclude any liability.
This user manual includes detailed instructions for your product.
Figures and illustrations in this user manual are provided for reference
only and may differ from actual equipment appearance. Equipment
design and specifications may be changed without notice.
Wall Slider
C
Mounting kit:
1 x M6x35mm
1 x M6 nut
1 x M6 ring
2 x M8x16mm
2 x M8 nut
2 x M8 ring
WWW.CTOUCH.EU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ctouch Wallom WS
Summary of Contents for Ctouch Wallom WS
-
Page 1: Installation Manual

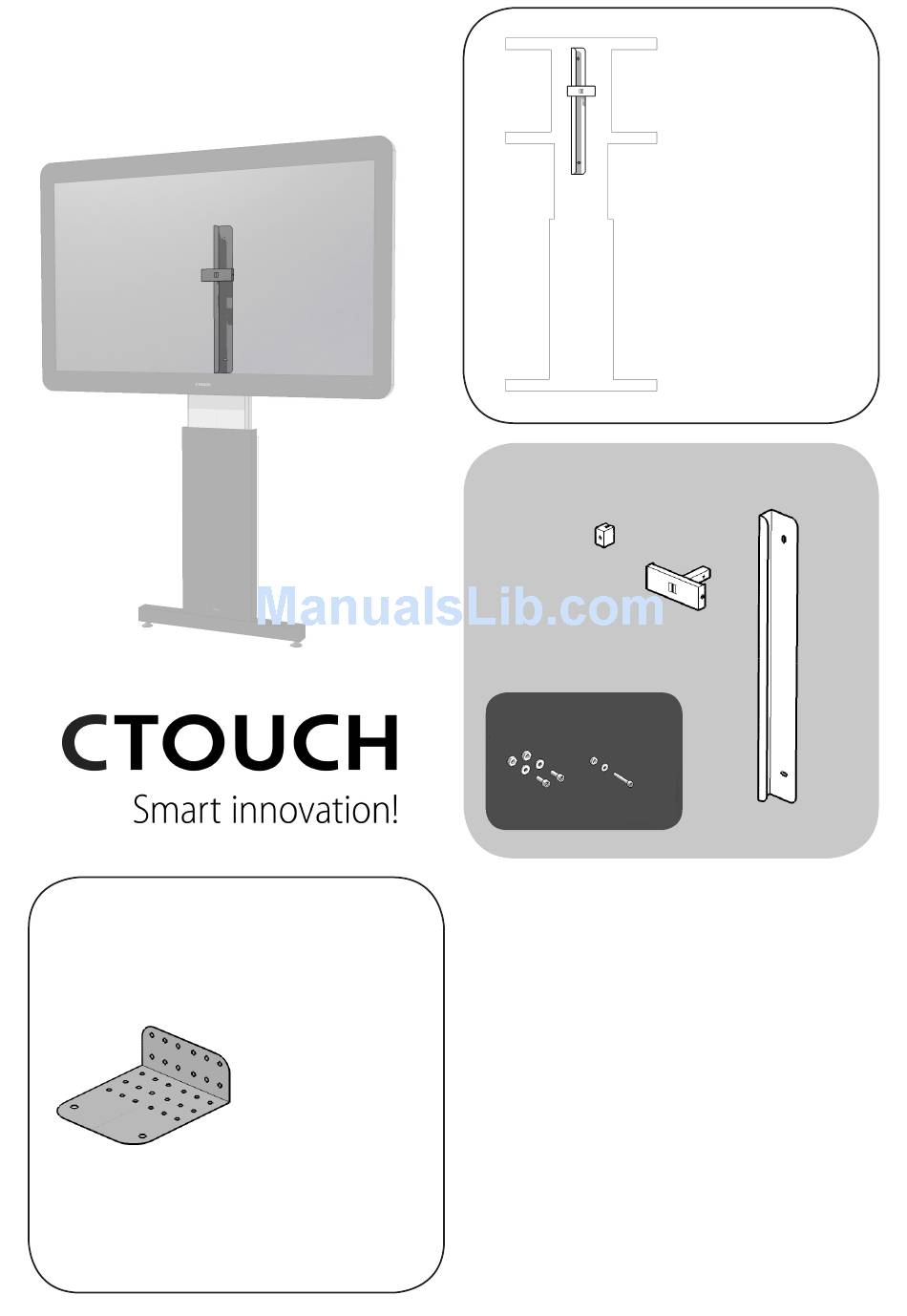

CTOUCH Wallom WS Installation manual Wall Slider Parts: Mounting kit: Optional accessories: Parts: Mounting kit: A - Nylon block 1 x M6x35mm B - Interface Bracket 1 x M6 nut C - Wall bracket 1 x M6 ring 2 x M8x16mm... - Page 2 Drill a minimum of two holes in the wall and secure the Wall bracket (C) using mounting material Mounting pattern for Wallom Wall Slider 67mm 83mm Mounting pattern for Wallom Wall Lift 150mm Horizontal cross section Bring your own mounting material, depending on wall type. WWW.CTOUCH.EU...
