Summary of Contents for Rosenberger PIM

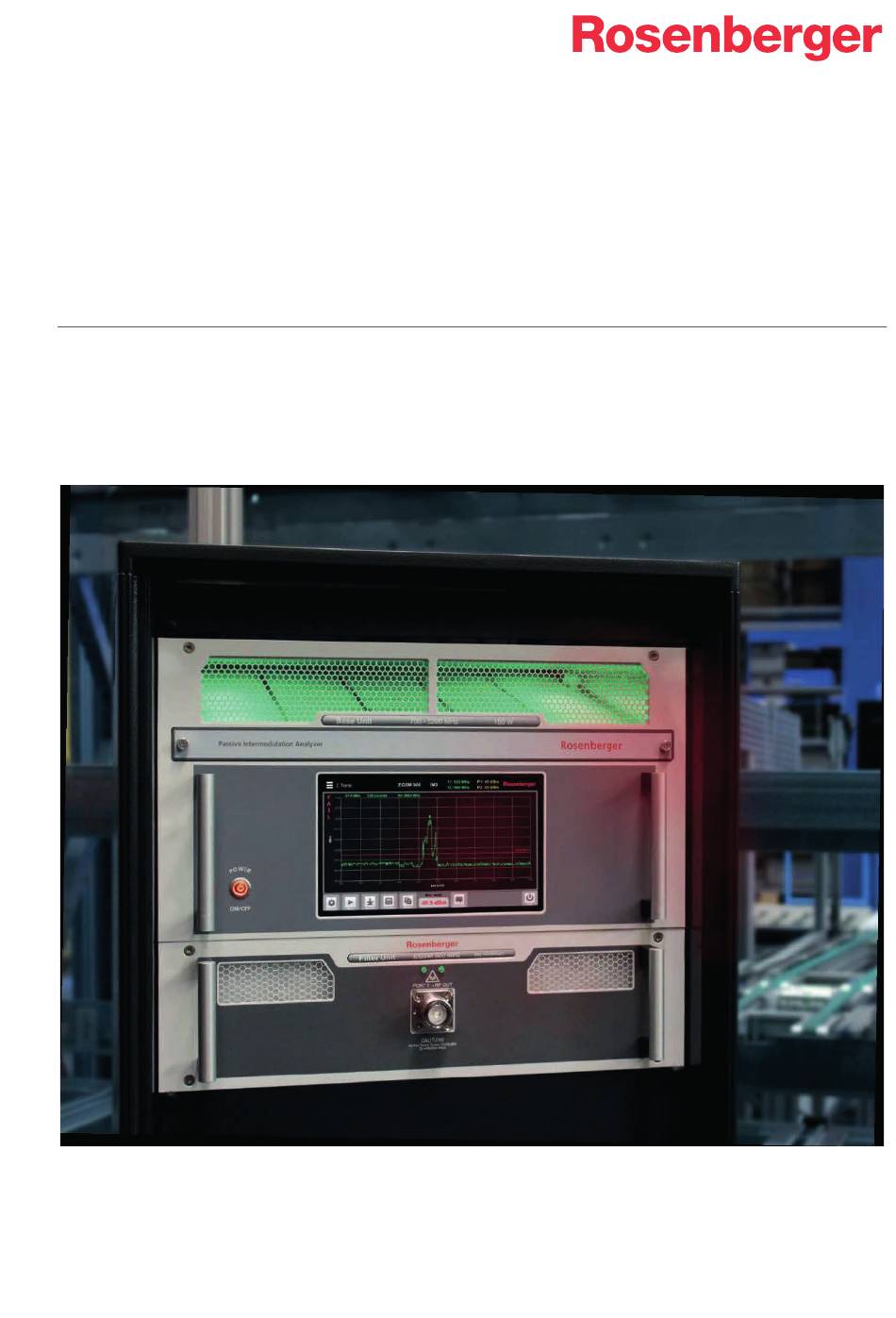

  • Page 1 PIM Rack Analyzer User Manual...

  • Page 2: Table Of Contents

    Manual Table of Contents General Information and Safety Instructions ..................3 Package Contents ............................8 PIM Rack Analyzer Product Description ....................9 Overview ..............................9 Filter ................................. 12 Setting Up the Device ..........................13 Switch Matrix Installation and Cabling of First Filter Unit ................ 14 Cabling of Additional Filter........................
  • Page 3 Main Features ............................. 53 11.1.2 Product Description ..........................53 11.1.3 General ............................... 54 11.1.4 RF PIM Analyzer (Base Unit) -150W Option ..................54 11.1.5 CPRI PIM Analyzer (SW Option) ......................54 11.1.6 RF Isolation Measurement ......................... 55 11.1.7 RF VSWR / Return Loss........................55 11.1.8...

  • Page 4: General Information And Safety Instructions

    If personal safety gear is required in order to use the Rosenberger PIM Rack Analyzer, this will be indicated at the appropriate place in the product documentation. Keep the basic safety instructions and the product documentation in a safe place and pass them on to any subsequent users.
  • Page 5 PIM Rack Analyzer Manual • Never switch output power on (in manual mode or remote mode) without a load or terminated OUT connected to the test port. • Unless otherwise specified, the following requirements apply to this product: IP protection 2X, pollution severity 2, overvoltage category 2, max.
  • Page 6 • Operation of the PIM Rack Analyzer can produce electromagnetic radiation. Ensure that the radiation levels do not exceed the limits stipulated by national regulations. Persons with pacemakers and pregnant women are especially at risk.
  • Page 7 Adjustments, replacement of parts, maintenance and repairs may only be performed by electrical experts authorized by Rosenberger. Only original parts can be used for replacing safety parts (e.g. power switches, power transformers, fuses). A safety test must always be performed after safety parts have been replaced (visual inspection, PG conductor test, insulation resistance measurement, leakage current measurement, functional test).

  • Page 8: Package Contents

    Before doing anything else, please check that all parts are contained in your shipment. If anything is missing, contact Rosenberger. See the information below for a description of the contents of the main unit packaging. The filter unit comes in a separate box.

  • Page 9: Pim Rack Analyzer Product Description

    Manual 3 PIM Rack Analyzer Product Description Dear customer, thank you for purchasing the Rosenberger PIM Rack Analyzer. The PIM Rack Analyzer al- lows you to perform PIM and VSWER_Distance_to_Fault (DTF) measurements. The plug-and-play filter units and the broadband base units from 700-2200 MHz and 2100-2700 MHz ensure maximum flexibility.
  • Page 10 PIM Rack Analyzer Manual Front Air dust filter Type/Model Handles Ventilation inlet On/Off Touch- pushbutton display © Rosenberger 2018 - Page 10 of 66 www.rosenberger.com/pia...
  • Page 11 PIM Rack Analyzer Manual Back LAN 1 Gbit/s Amplifier outputs RF receiver inputs TX1 TX2 FWD REFL Power socket with main switch USB remote con- 10 MHz trol reference input Safety port © Rosenberger 2018 - Page 11 of 66...

  • Page 12: Filter

    PIM Rack Analyzer Manual 3.2 Filter Filter units are available with preassembled 7-16 (4.3-10 on request). Front Ventilation inlet Type/Model air dust filter Handles Test port Back Bus in RF in- & outputs REFL Bus out Termination switch Ventilation outlet ©...

  • Page 13: Setting Up The Device

    Always ensure that the device is stable and that the environmental conditions – listed under Chapter 1 – Section: Operating conditions and operating positions – are acceptable before starting to use the PIM Rack Analyzer. Please disconnect the unit from the power supply before reconfiguring the RF ca- bling of the switch matrix.

  • Page 14: Switch Matrix Installation And Cabling Of First Filter Unit

    PIM Rack Analyzer Manual 4.1 Switch Matrix Installation and Cabling of First Filter Unit 1. Mount the switch matrix on the back of the base unit (IM-R-BU-xxx). Hand-tighten the knurled screws. Switch matrix © Rosenberger 2018 - Page 14 of 66...
  • Page 15 PIM Rack Analyzer Manual 2. 11-way switch matrix only: Mount the cables W125, W126, W127 on PIM RX (X to X), TX1 (X to X) and TX2 (X to X). 3. Mount cable W122 between REFL and REFL-Com, W121 between FWD and FWD-Com and W120 between RX and RX-C (make sure that the longer end of cable W120 is mounted on the RX connector).
  • Page 16 PIM Rack Analyzer Manual 4. Mount cables W123 and W124 between the amplifier outputs and relay common (TX1 and TX1- C, Tx2 and TX2-C). W124 W123 TX2 – TX2-C TX1 – TX1-C © Rosenberger 2018 - Page 16 of 66...
  • Page 17 5. Mount cable LY8-C039-xxx for each path (xxx corresponds to the length; two different lengths depending on the distance between base unit and filter) PIM RX (on switch matrix) to RF out PIM (on filter unit) TX1 (on MPX) to RF in TX1 (on filter unit)
  • Page 18 PIM Rack Analyzer Manual 6. Take two L71-A0036-xxx cables (xxx corresponds to the length; two different lengths depending on the distance between base unit and filter) and mount them from FWD to FWD and from REFL to REFL. Please make sure that the position on the switch matrix is the same for all paths. E.g.
  • Page 19 PIM Rack Analyzer Manual 7. Take the LD5-101-0550-E-C cable and plug it into “Bus out” (green) on the switch matrix and “Bus in” (blue) on the filter. LD5-101-0550-E-C Bus out LD5-101-0550-E-C Bus in If you are not connecting another filter, change the position of the termination switch to ON.

  • Page 20: Cabling Of Additional Filter

    4.2 Cabling of Additional Filter 1. Mount cable LY8-C039-xxx for each path. PIM RX (on MPX) to RF out PIM (on filter unit) TX1 (on MPX) to RF in TX1 (on filter unit) TX2 (on MPX) to RF in TX2 (on filter unit)
  • Page 21 PIM Rack Analyzer Manual 2. Take two L71-A0036-xxx cables and mount them from FWD to FWD and from REFL to REFL. Please make sure that the position on the switch matrix is the same for all paths. E.g. both cables must be in position 2.
  • Page 22 PIM Rack Analyzer Manual 3. Take the LD5-101-0350-E-C cable and plug it into “Bus out” on the previous filter and “Bus in” on the current filter. LD5-101-0350-E-C Bus out LD5-101-0350-E-C Bus in © Rosenberger 2018 - Page 22 of 66...
  • Page 23 PIM Rack Analyzer Manual 4. If you are not connecting another filter, change the position of the termination switch to ON and change the switch on the previous filter to OFF. After checking all connections for correctness and torque, connect the unit to the power supply again.

  • Page 24: Software Setup

    PIM Rack Analyzer Manual 4.3 Software Setup Open the main menu and “Filter Connections” Select the connected Select the cables used for each path (see cable filter unit for each connection dialog) switch matrix position © Rosenberger 2018 - Page 24 of 66...
  • Page 25 PIM Rack Analyzer Manual Either select one of the predefined and standard-accessory cables or 3. Optional: Copy the same 2. Select a custom- selection for the remaining paths of this defined *.s2p file or filter. use a single attenuation value...

  • Page 26: Measurement Settings

    PIM Rack Analyzer Manual 5 Measurement Settings 5.1 Main Menu The main menu can be accessed from every screen with the button in the upper left corner. It allows you to switch between all the different measurement types and settings.

  • Page 27: Manual Mode

    Power f Power setting for CW carrier 2 On | Off f Enable or disable carrier 2 Path RX Choose between PIM or FWD monitor path Frequency RX Set frequency where RX is listening IM order + Use Choose between IM...

  • Page 28: Tone

    PIM Rack Analyzer Manual 5.3 2 Tone Measuring PIM under dynamic stress (e.g. tap with a tool to simulate tower movements during wind). Two fixed-frequency CW carriers stimulate PIM at the DUT while the PIM level is recorded over time and displayed.

  • Page 29: Sweep

    Measuring PIM with swept carrier frequencies. Allows detection of multiple PIM sources in the signal path. An unsteady graph would indicate that more than one PIM source is present because all reflected PIM waves would interfere posi- tively and negatively over frequency.

  • Page 30: Vswr \ Rl

    PIM Rack Analyzer Manual 5.5 VSWR \ RL Measures if components in the signal path are impedance-matched or not. High RL or VSWR values mean that signals are reflected back instead of pass- ing the mismatched component. Group Parameter Description...

  • Page 31: Dtf

    Measuring the distance to the PIM fault and return loss fault position. The graph plots the PIM and RL values over distance, so even multiple sources can be detected and the level measured. The velocity factor has to be known for accu- rate display scaling.

  • Page 32: Isolation

    Measuring the isolation between separate RF paths (e.g. decoupling of two an- tennas or separate polarizations). For this purpose, a signal is transmitted from the PIM measuring port (7-16 or 4.3-10) and the leakage is received at the N- connector.

  • Page 33: Power Sweep

    Manual 5.8 Power Sweep Measuring PIM as a function of power to the DUT. Because PIM is an extremely nonlinear effect with many causes, it is hard to predict the power level at which PIM will start to rise. PIM sources or measurement headroom can be identified in this manner.

  • Page 34: Spectrum Analyzer

    Measuring the uplink spectrum prior to PIM measurements is useful to detect if interferences (e.g. mobile devices transmitting unintentionally) are disturbing the PIM measurement. The RF power density on the graph shows if there are static signals which must be ignored on PIM measurements.

  • Page 35: Common Settings

    It is advisable to keep loss. on the screen “Check RL before PIM measurements” activated – it protects the unit from excessive VSWR and device damage caused by hot plugging.

  • Page 36: Filter / Band Selection

    PIM Rack Analyzer Manual Filter / Band Selection Selected filter unit Selec- band Filter units with multi-band support: Additional band is selected here. Standard filter unit: Band is automatically selected. © Rosenberger 2018 - Page 36 of 66 www.rosenberger.com/pia...

  • Page 37: Measurement Screen

    Report: Create measurement report Comment: Add a comment to the measurement performed (appears in history and report) Exit: Exit PIM Analyzer application Each measurement trace is kept for fourteen days (default) with a measurement comment and date/time. The time span can be changed in the Common Settings screen.

  • Page 38: History

    PIM Rack Analyzer Manual 6.3.1 History Check entries to compare several measurement traces or reload them to add them to a report. The history is synchronized with the tablet during connection – old measurements can be viewed and reports can be created offline using the tablet only.

  • Page 39: Report Generation

    A report is not only a collection of measurements – it contains a complete set of documentation to provide evidence of the PIM performance of a “device under test”. It includes test parameters, comments, pass/fail check and title sheet with company logo, operator name, equipment serial and so on. By default, similar measurements relating to one section are grouped into a graph on one page to save paper and increase comparability;...
  • Page 40 PIM Rack Analyzer Manual The “Report” button can be found on every measurement screen. After a measurement has been performed, you can tap on it to display a sidebar menu. A report is divided into Add this measurement to Show all the saved meas-...
  • Page 41 PIM Rack Analyzer Manual In the “Manage Report” screen all your saved measurements can be seen and arranged for the report. Additionally you can set common attributes of your report. Create PDF: The configured report is saved as a pdf file in the default folder automatically. You can copy the file to a USB stick or different location by hitting “Share”...

  • Page 42: Creating A Single

    PIM Rack Analyzer Manual 6.4.2 Creating a Single-Page Report Export current measure- Export current measurement values ment into a single-page into a CSV text file. Storage path can PDF. Storage path can be be set in “Report Settings” via “Man- set in “Report Settings”...

  • Page 43: Zeroing Pim

    New Zero Point” and apply the settings. After that, connect the DTF zeroing adapter and a low PIM load at the desired zero point. To start zeroing PIM, click on “Zero PIM” at the bottom of the DTF measurement screen.

  • Page 44: Zeroing Return Loss

    PIM Rack Analyzer Manual 6.5.1 Zeroing Return Loss Return loss is zeroed without a load / adapter at the end of the cable. “Return Loss Location” must be checked in the DTF settings screen. Also make sure that “Output Power RL” is set to 23 dBm.

  • Page 45: Setting The Velocity Factor Of The Signal Path (+Application Note Dtf)

    PIM Rack Analyzer Manual 6.5.2 Setting the velocity factor of the signal path (+Application Note DTF) In order to increase the accuracy of distance measurements, the velocity factor of the signal path can be set up in sections. Enter the cable length and select a predefined cable from the table (or a custom-defined fac- tor) and hit “Add new cable”...

  • Page 46: Device Info

    PIM Rack Analyzer Manual 6.6 Device Info The “Device Info” screen shows useful information about your PIM Rack Analyzer device, e.g. manufacturing and calibration dates of the filters and base unit. © Rosenberger 2018 - Page 46 of 66 www.rosenberger.com/pia...

  • Page 47: Defining Own Buttons For Section Names

    5. Close the .csv file and save the entered data. 6. Open the PIM Analyzer application and go to the report section. Now you can start to add measurement data to the new sectors by selecting “create new” in the sector section and selecting one of the pre-defined buttons.

  • Page 48: Updating The Pim Analyzer Software

    6.8 Updating the PIM Analyzer Software To benefit from the latest improvements and to ensure reliable and secure operation of the PIM Rack Ana- lyzer it is important to keep the software up to date. The following steps describe how to install software up- dates for the PIM Analyzer software: 1.

  • Page 49: Remote Control

    We apologize and ask for your understanding. 8 Maintenance of the Device 8.1 Handling Only use the PIM Rack Analyzer in line with the intended purpose and comply with this documentation to prevent damage. 8.2 Cleaning Prior to cleaning the product, disconnect it completely from the power supply (e.g.

  • Page 50: Measurement Examples

    5. Perform a sweep measurement to evaluate whether the PIM depends on frequency i. If no PIM is present, perform a 2 Tone measurement with a tap test ii. If PIM is present, perform a DTF measurement to measure the distance to the static PIM in meters.

  • Page 51: Troubleshooting

    10.1 Reporting Software Problems to Rosenberger If you experience any problems relating to the use of the PIM Analyzer software, in order to make sure we can analyze the problem quickly and provide an effective solution, please follow these steps to provide relat-...

  • Page 52: Technical Specifications

    Broadband RX & TX base model 698-2200 MHz with outstanding PIM performance (typ. <-130 dBm) • Continuous wave signal (no pulse), conformity with IEC 62037 – 1, full power to PIM source • Up to 11 filters connected to one base unit (optional 6-way / 11-way switch matrix) •...

  • Page 53: General

    <- 131 dBm (> 174 dBc @2x +43 dBm) typ. PIM vs. distance Accuracy / resolution < 0.3 m , all bands Depends on number of PIM sources and accuracy of cable velocity factor Range Down to -120 dBm PIM, 0 – 150 m Frequency range (seamless) 698 …...

  • Page 54: Rf Isolation Measurement

    PIM Rack Analyzer Manual 11.1.6 RF Isolation Measurement Frequency Downlink frequency band of filter unit RF output +23 – 46 dBm RF input +27 dBm max. operating +30 dBm max. no damage +50 VDC max. no damage Isolation 0 – 60 dB Accuracy 1.5 dB...

  • Page 55: User Interfaces

    PIM Rack Analyzer Manual 11.1.10 User Interfaces Keyboard/USB memory 2 × USB A connector (one each on front and back panel) Remote control 1 × LAN, 1 × Micro-USB B connector Reference 1 × BNC 10 MHz CPRI 2 × SFP built in on request, LC duplex on front panel...

  • Page 56: Compatibility / Supported Base Unit

    PIM Rack Analyzer Manual 11.2.4 Compatibility / Supported Base Unit The filter unit must correspond to the frequency range of the base units. Base unit 0722 Filter units 07, 08, …, 21 Base unit 2127 Filter units 21, …, 26 11.2.5 IM-R-FI-07/B12-14-R (LTE700 L+U)

  • Page 57: Im-R-Fi-08/B5-R (Amps850)

    PIM Rack Analyzer Manual 11.2.8 IM-R-FI-08/B5-R (AMPS850) ETSI band Transmit path Range 869 – 894 MHz Receive path Range 824 – 851 MHz Residual PIM < -128 dBm (< -171 dBc), referred to 2 × +43 dBm Weight 13 kg 11.2.9 IM-R-FI-09/B8-R (EGSM900)

  • Page 58: Im-R-Fi-18/B3-R (Dcs1800)

    PIM Rack Analyzer Manual 11.2.11 IM-R-FI-18/B3-R (DCS1800) ETSI band Transmit path Range 1805 – 1880 MHz Receive path Range 1710 – 1785 MHz Residual PIM < -128 dBm (< -171 dBc), referred to 2 × +43 dBm Weight 11.5 kg 11.2.12...

  • Page 59: Im-R-Fi-26/B7-R (Lte Ii 2600)

    UMTS (ETSI band 1) 23/B30: (ETSI band 30) 26/B7: W UMTS II / LTE II (ETSI band 7) Reflected PIM measurements (1 port) Transmitted and dual-port measurements (2 ports) (on request) IM-R-HWO-xxxx Hardware option xxxx: ExtCtrl External control interface to enable/disable...

  • Page 60: Order Number Example

    PIM Rack Analyzer Manual 11.4 Order Number Example IM-R-BU-0722-150W Base unit with broadband amplifier 700-2700 MHz, receiv- er, fiber CPRI unit IM-R-MPX-6way Single battery pack IM-R-FI-07/B28-R Filter unit for APT700 (ETSI band 28) IM-R-FI-19/B2+4-R Filter unit for EGSM900 (ETSI band 2+4)

  • Page 61: Ce Declaration Of Conformity

    PIM Rack Analyzer Manual 12 CE Declaration of Conformity Fridolfing, August 21st, 2007, update Place and date: Rosenberger Hochfrequenztechnik GmbH & Co. KG Manufacturer: Hauptstraße 1, 83413 Fridolfing, Germany Address: declare under our sole responsibility that the product Intermodulation test set...

  • Page 62: Accessories

    PIM Rack Analyzer Manual 13 Accessories IM-R-MPX-6way or -11way Switch matrix with support for a maximum of 6 or 11 filters IM-R-ACSRY-Fil-BU or -FI Set of dust air filter mats for base/filter unit IM-R-HWO-ExtCtrl External control / signaling interface 13.1 Filter Units Rosenberger no.

  • Page 63: Other Accessories

    • xx: 07 LTE700; 08 DigDiv|AMPS; 09 EGSM; 18 DCS; 19 PCS/AWS; • 21 UMTS; 26 LTE2600; other frequencies on re- quest 60Z150-001 Low PIM termination (19” rack type, 3 HU) Low PIM ter- 60Z150-012 Low PIM termination (benchtop type) minations...

  • Page 64: Support And Sales Locations

    IM-Cable-4310m-4310m-3000 Test cable 4.3/10 male / 4.3/10 male 3.0 m 14 Support and Sales Locations 14.1 Europe, Middle East, Africa Rosenberger Hochfrequenztechnik GmbH & Co. KG Hauptstraße 1 83413 Fridolfing, Germany Phone +49 8684 18-0 +49 8684 18-1499 info@rosenberger.de...

  • Page 65: Asia Pacific

    PIM Rack Analyzer Manual 14.4 Asia Pacific Rosenberger Asia Pacific Electronic Co., Ltd. No. 3, Anxiang Road, Block B Tianzhu Airport Industrial Zone Beijing, 101300, PR China Phone +86 10 80 48 1995 +86 10 80 48 2438 info@rosenbergerap.com www.rosenbergerap.com 14.5 India...
  • Page 66 Certified to ISO/TS 16949 · DIN EN 9100 · ISO 9001 · ISO 14001 Order no. 394581 IM-R-ACSRY-OM-en 8/2018 Rosenberger ® is a registered trademark of Rosenberger Hochfrequenztechnik GmbH & Co. KG. All rights reserved. © Rosenberger 2018 - Page 66 of 66 www.rosenberger.com/pia...
