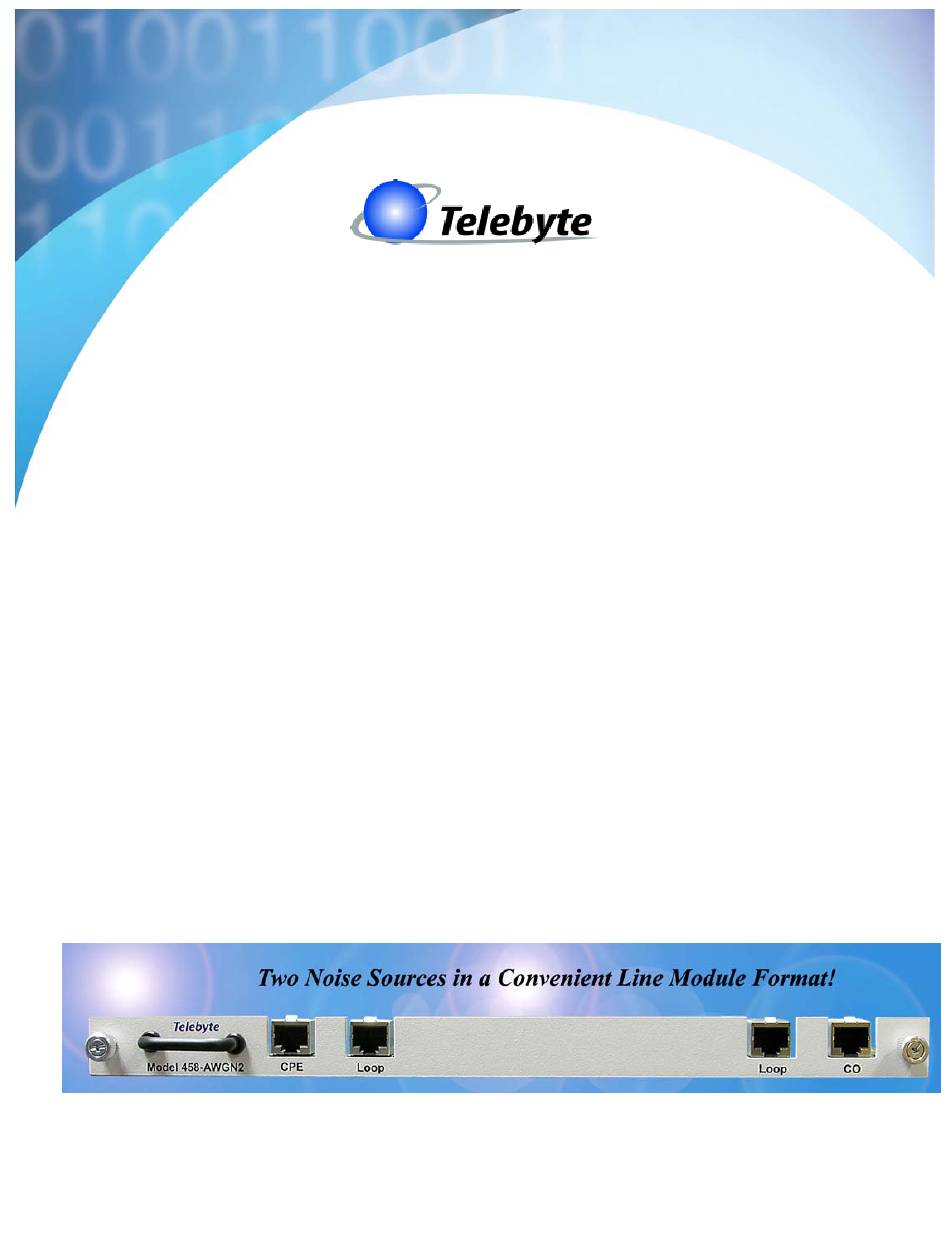

- Page 1 “Results You Can Count On” Model 458-AWGN2 Dual Output AWGN Generator Line Module Rev. - Date of Publication: 04/15/11...
- Page 2 Thank you for your purchase of the Telebyte Model 458-AWGN2 Dual Output AWGN Generator Line Module. This product is designed to inject Additive White Gaussian Noise (AWGN) on the CO and/or CPE side of a loop simulator installed in one of Telebyte’s chassis or onto real cable.
- Page 3 TELEBYTE, INC. warrants its broadband simulation equipment to be free from defects in material and workmanship, under normal and proper use and in its unmodified condition, for 12-months, starting on the date it is delivered for use. TELEBYTE’S sole obligation under this warranty shall be to furnish parts and labor for the repair or replacement of products found by TELEBYTE to be defective in material or workmanship during the warranty period.
- Page 4 Equipment Returns Out of warranty equipment may be returned, prepaid, to the Hauppauge, N.Y. customer service facility. Return shipping charges will be billed to the customer. The repaired unit will have a 90-day warranty. In those cases where "no trouble" is found, a reduced charge will be billed to cover handling, testing, and packaging.
-
Page 5: Table Of Contents
Table of Contents 1.0 Introduction ..........................1-1 2.0 Specifications ..........................2-1 2.1 458-AWGN2 ..........................2-1 2.2 458-3SLB ............................. 2-1 2.3 458-CC-16/458-CM ........................2-2 3.0 Control ............................3-1 3.1.1 RS-232 (Serial Port) Remote Commands ................. 3-1 3.1.2 GPIB Remote Command ......................3-2 Graphical User Interface ...................... -
Page 6: Introduction
1.0 Introduction The Model 458-AWGN2 is the ideal solution for injecting Additive White Gaussian Noise (AWGN) for ADSL, ADSL2, ADSL2+, and VDSL2 chip/modem/DSLAM testing applications. The user may add AWGN on the CO and/or CPE side, depending on their application. The 458-AWGN2 allows for common or independent noise levels on both sides. -
Page 7: Specifications
Storage: 0 to 95% relative humidity (non-condensing) Remote Control Connectors RS-232: DB9 female (DCE); GPIB:IEEE488 24-pin connector. Ethernet: RJ-45 Plug-In Compatibility Accepts one, two or three 458 Line Modules or one 458-RT Model 458-AWGN2 Dual Output AWGN Generator Line Module Page 2-1... -
Page 8: 458-Cc-16/458-Cm
Specifications are subject to change without notice. Made in USA. Detailed information about the operation of the 458-3SLB and 458-CC-16/458-CM can be found in the reference manuals for those products. Model 458-AWGN2 Dual Output AWGN Generator Line Module Page 2-2... -
Page 9: Control
Commands, our GUI interface or the LCD display on the front panel of our 458-3SLB or 458- Only information specific to the 458-AWGN2 is provided in this section. Refer to the 458- 3SLB or 458-CC-16/458-CM manuals for additional control information. - Page 10 Read Noise Mode/Level Command Values: READCARD:LENGTH:M:NOISE:CO or READCARD:LENGTH:M:NOISE:CPE Where, M = Module (slot) number 01 – 16 (458-CM), 01-03 (458-3SLB) Example: READCARD:LENGTH:02:NOISE:CO = Read CO noise level of module in slot 2 Model 458-AWGN2 Dual Output AWGN Generator Line Module Page 3-2...
-
Page 11: Graphical User Interface
1 top, slot 2 middle, slot 3 bottom). Step Two Use Up arrow to select the CO or CPE noise. Adjust the noise level using LEFT and RIGHT arrow buttons. Model 458-AWGN2 Dual Output AWGN Generator Line Module Page 3-3...
