Summary of Contents for GE GW12XDBB

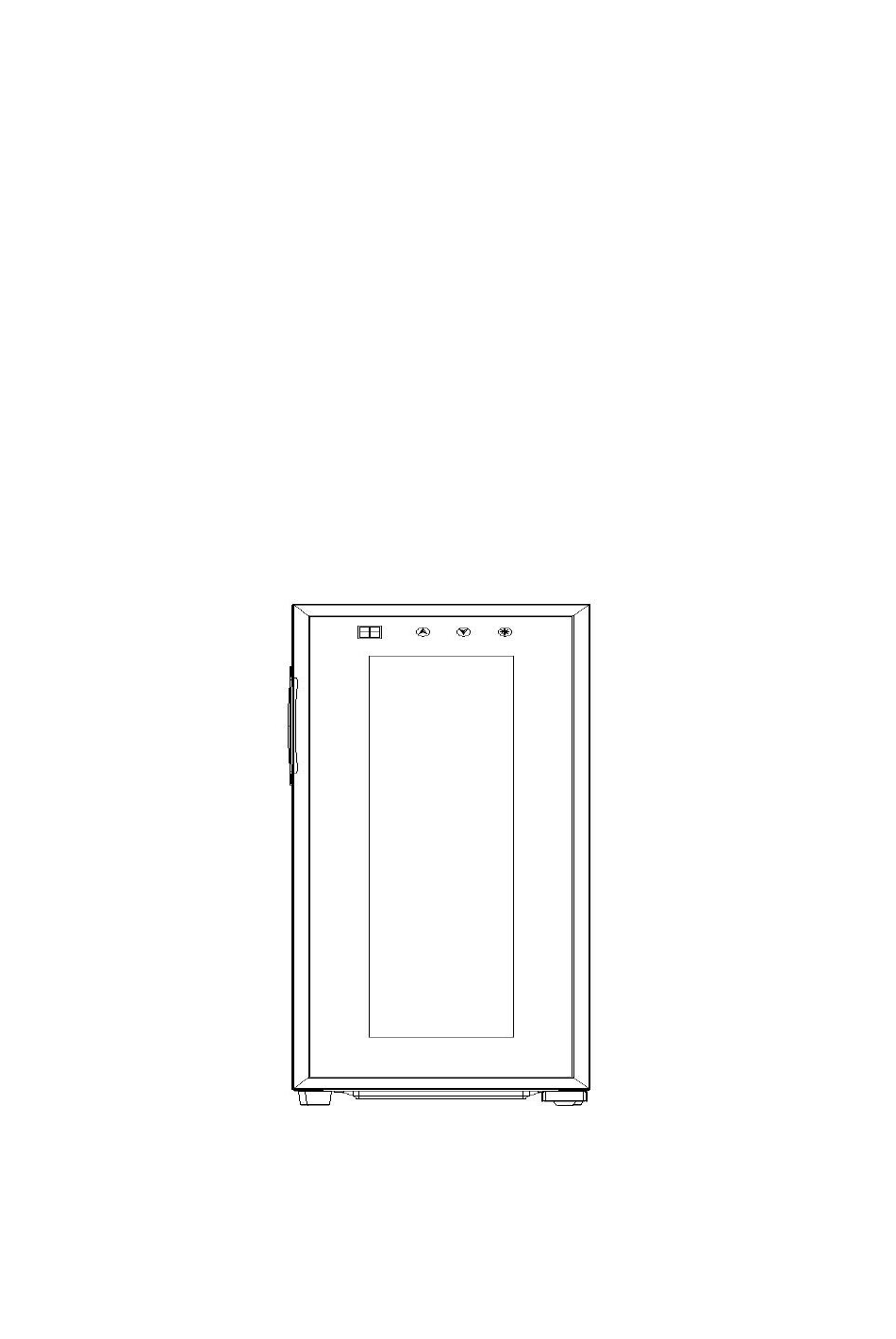

- Page 1 SERVICE MANUAL MODEL NUMBERS : GW8XDBB, GW12XDBB...
-
Page 2: Specification
Please read carefully and follow all safety rules and operating instructions. Catalog 1-----------------------cover 2-----------------------specification 3-----------------------wiring diagram and electrical parts 4---------------------- disassemble diagram and part list KWS-8E 5---------------------- disassemble diagram and part list KWS-12E 6--------------------- Trouble shooting guide 7----------------------Maintenance Specification:... - Page 3 KWS-8E KWS-12E...
- Page 4 Product Specification for wine cooler: Factory No. KWS-8E KWS-12E Model No. KWS-8E KWS-12E Type Thermoelectric wine cooler Capacity Performance Climate Class SN,N SN.N Power V/Hz 120V/60Hz 120V/60Hz Energy Kwh/24h 0.5(15℃) 0.55(15℃) Consumption Noise Level dB(A) Features Temp.Range(ºC) 7-18 7-18 Defrosting Auto Auto No.
-
Page 5: Wiring Diagram
Back to top Wiring diagram back to top... - Page 6 Disassemble diagram and part list KWS-8E ASSEMBLY PARTS LIST Unit price Part name Drawing No Remarks Door KWS-8E.02-00 Shelf KWS-6E.01-05 Cold fan bracket TY01-026 Light cover TY01-005 Light PCB DQ06-001 Foaming cabinet KWS-8E.01-00 Plastic bolt TY01-022 Power PCB Dq04-001 Hot fan DQ01-003 2000r/min Rear board...
- Page 7 Lower hinge TY02-016 Lower hinge cover TY1-025 Cold fan bracket TY01-028 Cold fan DQ01-002 KWS-12E ASSEMBLY PART LIST Part name Unit price Drawing No Remarks Door KWS-12E.02-00 Shelf KWS-6E.01-05 Cold fan bracket TY01-026 Light cover TY01-005 Light PCB DQ06-001 Foaming cabinet KWS-12E.01-00 Plastic bolt TY01-022...
-
Page 8: Spare Parts
Cold fan bracket TY01-028 Cold fan DQ01-002 Back to top Spare parts KWS-8E 1% Free of charge standard parts Unit price Part name Q'ty Drawing No Remarks TY02-016 Lower hinge TY01-025 Hinge cover DQ05-002 Display PCB DQ04-001 Power PCB DQ01-002 Cold fan DQ01-003 Hot fan... -
Page 9: Troubleshooting Guide
Back to top Trouble shooting guide PROBLEM POSSIBLE CAUSE Wine refrigerator do not operate. Not plugged in using different voltage. The circuit breaker tripped or a blown fuse. Wine refrigerator is not cold enough. Check the temperature control setting. External environment may require a higher setting. The door is open too often.
