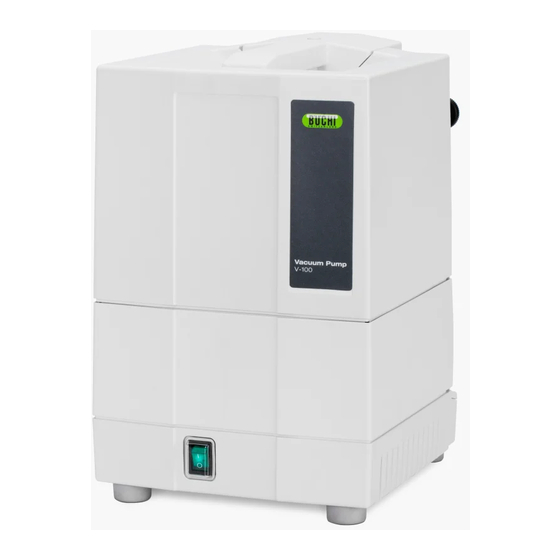

Vacuum Pump V-100
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Buchi V-100

Summary of Contents for Buchi V-100

  • Page 1 Vacuum Pump V-100 Operation Manual...
  • Page 2 CH-9230 Flawil 1 E-Mail: quality@buchi.com BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experi- ence, especially with respect to structure, illustrations and technical detail. This manual is copyrighted. Information from it may not be reproduced, distributed, or used for competi- tive purposes, nor made available to third parties.

  • Page 3: Table Of Contents

    Connecting a secondary cooling cold trap.................. 26 Electrical connections ........................ 27 Fitting and connecting the Interface I-100 .................. 28 5.9.1 Fitting an interface unit to the Vacuum Pump V-100 .............  28 5.9.2 Connecting interface unit to Vacuum Pump V-100 .............. 29 Operation Manual Vacuum Pump V-100...
  • Page 4 Contents BÜCHI Labortechnik AG Operation.......................... 30 Operating V-100 with Interface I-100.................... 30 Operating V-100 without Interface I-100....................  30 Cleaning and servicing ..................... 31 Cleaning.............................  31 7.1.1 Important considerations when cleaning................ 31 7.1.2 Cleaning the pump.........................  31 7.1.3 After working with strong acids .................... 31 7.1.4...

  • Page 5: About This Document

    They are an integral part of the product and contain important information that is nec- essary for safe operation and maintenance. These operating instructions apply to all variants of the Vacuum Pump V-100 and are intended primarily for laboratory staff.

  • Page 6: Mandatory Directive Symbols

    These operating instructions were originally produced in German and have been translated into several other languages. The translations are available on the en- closed CD or can be obtained as a PDF file via http://www.buchi.com. Trademarks Product names and registered or unregistered trademarks that are used in this in- struction manual are used only for identification and remain the property of the owner in each case.

  • Page 7: Safety

    Safety Intended use The Vacuum Pump V-100 has been designed and built as an item of laboratory equipment. Its intended use is the evacuation of laboratory apparatus. This is done by means of a PTFE-membrane pump – with or without regulation by a vacuum con- troller.

  • Page 8: Residual Risks

    — Safety-related incidents that occur while using the device should be reported to the manufacturer (quality@buchi.com). BUCHI service technicians Service technicians authorized by BUCHI have attended special training courses and are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair measures.
  • Page 9 Technical modifications to the device or accessories should only be carried out with the prior written approval of BÜCHI Labortechnik AG and only by authorized BUCHI technicians. BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized modifications. Operation Manual Vacuum Pump V-100...

  • Page 10: Product Description

    The Vacuum Pump V-100 is intended for evacuating laboratory apparatus to a termi- nal vacuum of 10 mbar (± 2 mbar). Once switched on, the V-100 runs in continuous mode unless it is connected to the Interface I-100 unit. In unregulated continuous mode, the pump runs at a maximum speed of 1280 rpm and generates a terminal vacuum of 10 mbar (± 2 mbar).

  • Page 11: Rear View

    BÜCHI Labortechnik AG Product description | 3 3.2.2 Rear view Fig. 2: Rear view of V-100 1 Knurled-head screws 4 Pump intake (vacuum) 2 Pump outlet 5 Mini-DIN connection 3 Type plate 6 Power supply connection 7 Lashing eye (for securing against...

  • Page 12: Internal View

    3 | Product description BÜCHI Labortechnik AG 3.2.3 Internal view Fig. 3: Internal view of V-100 showing pump head and pump-head connection piece 1 Torx key (TX10) 3 Torx key (TX25) 2 Pump top cover 4 Pump outlet 5 Pump-head metal cover...

  • Page 13: Typical Application

    BÜCHI Labortechnik AG Product description | 3 3.2.4 Typical application The V-100 is used for evacuating laboratory apparatus such as tubes, flasks and other apparatus. Recirculating Chiller F-100 Fig. 4: Typical application for the V-100 in a laboratory 1 Recirculating Chiller F-100...

  • Page 14: Type Plate

    3 | Product description BÜCHI Labortechnik AG 3.2.5 Type plate The type plate is on the rear of the Vacuum Pump V-100. BUCHI Operations India Pvt Ltd 394230 Surat / India Type: V-100 1000000000 Volt: 100 – 240 VAC Frequ.: 50/60 Hz...

  • Page 15: Technical Data

    Ambient temperature 5 - 40 °C Maximum relative humidity 80 % for temperatures up to 31 °C decreasing linearly to 50 % at 40 °C The Vacuum Pump V-100 may only be used in indoor areas. 3.4.3 Materials Component Material...

  • Page 16: Transport And Storage

    Make sure that the ambient conditions are complied with (see Chapter 3.4 "Tech- nical data", page 15). Wherever possible, store the device in its original packaging. After storage, check the device, all seals and tubing for damage and replace if necessary. 16/52 Operation Manual Vacuum Pump V-100...

  • Page 17: Removing Transit Fixings

    1 Transit fixings 2 GL14 cap nuts Before the V-100 is set up and put into service, the transit fixings (red) have to be re- moved. On the rear of the V-100, unscrew the GL14 cap nuts (2) from the pump intake and pump outlet.

  • Page 18: Installation

    Operate the pump inside a fume hood. CAUTION Health risks when handling corrosive substances. When working with strong acids or caustic solutions, always wear personal protec- tive equipment (safety goggles, protective clothing, protective gloves). 18/52 Operation Manual Vacuum Pump V-100...

  • Page 19: Installation Site

    BÜCHI Labortechnik AG Installation | 5 Installation site Before setting up the V-100 and putting it into service, remove the transit fixings (red) on the rear of the device (see Chapter 4.3 "Removing transit fixings", page 17). IMPORTANT Risk of property damage from falling equipment (e.g. in an earthquake) Secure the Vacuum Pump against falling by means of the lashing eye on the rear of the device (see Chapter 3.2.2 "Rear view", page 11).
  • Page 20 5 | Installation BÜCHI Labortechnik AG The V-100 is connected by a vacuum tubing to the laboratory apparatus to be evacu- ated. The vacuum tubing leads via a GL14 connection from the pump intake (2) to the outlet of the laboratory device concerned.

  • Page 21: Connecting The Silencer

    BÜCHI Labortechnik AG Installation | 5 Connecting the silencer Fig. 8: Silencer on pump outlet of V-100 1 GL14 cap nut 3 Silencer 2 Flow direction marker 4 Silencer outlet The silencer can be connected directly to the pump or to the outlet of the secondary condenser.
  • Page 22 5 | Installation BÜCHI Labortechnik AG Slide forwards the GL14 cap nut on the silencer inlet and screw it onto the thread of the condenser outlet. 22/52 Operation Manual Vacuum Pump V-100...

  • Page 23: Connecting A Woulff Bottle

    5 Woulff bottle glass component 10 Woulff bottle holder The Woulff bottle is connected to the pump intake on the rear of the V-100. Tools required: Torx key (fitted in pump top cover) Fix the mounting rail (9) for the holder below the pump intake (6) using the screw (8).

  • Page 24: Connecting A Secondary Condenser

    5 | Installation BÜCHI Labortechnik AG Connecting a secondary condenser Fig. 11: Connecting secondary condenser to V-100 1 Secondary condenser 3 Holder 2 Pump outlet 4 Screw NOTE Connecting a secondary condenser is advised particularly in cases where the pump outlet cannot be connected to a fume hood or the solvent concentration in the vapor is too high.
  • Page 25 BÜCHI Labortechnik AG Installation | 5 Fitting secondary condenser into the holder and connecting up Fig. 12: V-100 with secondary condenser connected 1 Connection piece 4 Secondary condenser outlet 2 GL14 cap nut 5 Ball joint clamp 3 Pump outlet 6 Receiving flask Push secondary condenser together with connection piece (1) and GL14 cap nut (2) fully home into holder from above.

  • Page 26: Connecting A Secondary Cooling Cold Trap

    5 | Installation BÜCHI Labortechnik AG Connecting a secondary cooling cold trap Fig. 13: Cold trap for V-100 1 Cover 5 Secondary cooling cold trap outlet 2 Secondary cooling cold trap 6 Ball joint clamp 3 Secondary cooling cold trap inlet with...

  • Page 27: Electrical Connections

    Make sure that the available power supply matches the rating indicated on the type plate. Join the mini-DIN socket (1) of the V-100 to the mini-DIN socket (3) of the Inter- face I-100 with a communication cable. Plug the mains power cord supplied into the power supply socket (4) on the V-100.

  • Page 28: Fitting And Connecting The Interface I-100

    5 | Installation BÜCHI Labortechnik AG Fitting and connecting the Interface I-100 5.9.1 Fitting an interface unit to the Vacuum Pump V-100 Fitting the holder Fig. 15: Fitting the holder for the Interface I-100 1 Screw 3 Rubber plug (in thread for screw)

  • Page 29: Connecting Interface Unit To Vacuum Pump V-100

    5.9.2 Connecting interface unit to Vacuum Pump V-100 The V-100 is connected to the Interface I-100 by means of a communication cable (mini-DIN socket on rear of vacuum pump – see illustration in Chapter 5.8 "Electrical connections", page 27) and a tubing (from top outlet of Woulff bottle – see illustration in Chapter 5.5 "Connecting a Woulff bottle", page 23).

  • Page 30: Operation

    6 | Operation BÜCHI Labortechnik AG Operation Operating V-100 with Interface I-100 The Vacuum Pump V-100 can be controlled by an Interface I-100. Control encom- passes the following parameters and functions: — Setting the required vacuum — Timer Details of controlling the V-100 and the other laboratory equipment involved in evacu- ation can be found in the operating instructions for the Interface I-100.

  • Page 31: Cleaning And Servicing

    Any servicing and repair work which involves opening up more than the pump top cover may only be carried out by authorized service technicians. Use only genuine BUCHI consumables and spare parts in order to ensure correct operation of the device and preserve the warranty.

  • Page 32: Cleaning The Housing

    Refit the pump top cover. 7.1.7 Cleaning valve heads Dirt contamination of the valve heads is evidenced by the V-100 failing to achieve the terminal vacuum of 10 mbar (± 2 mbar) even though components are intact and con- nections air-tight. To clean them, proceed as follows:...

  • Page 33: Cleaning Non-Return Valve

    7.1.8 Cleaning non-return valve The V-100 operates with a total of four non-return valves. There is one valve with an O-ring in the connection on each of the two ports on each pump head. To clean the valves, the pump heads have to be dismantled as follows: Remove the pump top cover and dismantle the pump heads (see Chapter 7.2.2...
  • Page 34 Risk of pump damage and loss of warranty entitlement. Unauthorized opening up of the lower part of the pump may permanently impair the function of the pump. Only allow authorized BUCHI service technicians to open up the lower part of the pump. 34/52...

  • Page 35: Dismantling And Reassembling Pump Head

    1 Rubber surrounds Precondition: R Pump has been shut down. Unscrew the two knurled-head screws on the rear of the V-100 and remove the pump top cover. Remove the rubber surrounds (1) from the pump intake and pump outlet. Removing pump-head connection piece Fig. 19: Pump-head connection piece with union nuts between the two pump heads...
  • Page 36 Unscrew the four Allen-head screws (1) and remove the metal cover (2). Remove the pump head (3). Dismantling the pump head Fig. 21: View of completely dismantled pump head 1 Membrane 4 Elbow connection 2 O-rings 5 Straight connection 3 GL14 cap nut 6 Non-return valves 36/52 Operation Manual Vacuum Pump V-100...
  • Page 37 GL14 cap nuts between the two pump heads. Refit the rubber surrounds on the pump intake and pump outlet inside the housing. Refit the pump top cover and fix in place with the knurled-head screws. Operation Manual Vacuum Pump V-100 37/52...

  • Page 38: Replacing The Membrane

    BÜCHI Labortechnik AG 7.2.3 Replacing the membrane The membranes of the V-100 are located on the left and right behind the pump head. Fig. 22: Membrane 1 Membrane To remove the membrane you require a clamp (see Chapter 10.2 "Spare parts and accessories", page 46).

  • Page 39: Replacing Valve

    See also the schematic diagram on the inside of the housing above the pump intake and pump outlet. Refit the connections to the pump head. Operation Manual Vacuum Pump V-100 39/52...

  • Page 40: Replacing Tubing

    GL14 cap nuts are in proper contact with the pump-head connec- tion piece and are not damaged. Fit the connections together with the pump-head connection piece on the pump heads. Refit the pump top cover and fix in place. 40/52 Operation Manual Vacuum Pump V-100...

  • Page 41: Help With Faults

    "Replacing valve", page 39). Pump fails to start. Switch on pump top Check seating of pump top cover not closing. cover and correct if neces- sary. The cover is fixed by two knurled-head screws. Operation Manual Vacuum Pump V-100 41/52...

  • Page 42: Customer Service

    The addresses of the official BUCHI Customer Service offices can be found on the BUCHI website at: www.buchi.com. If you have any questions regarding technical is- sues or faults, please contact those offices.

  • Page 43: Taking Out Of Service And Disposal

    Switch off the pump and disconnect it from the mains power supply. Disposal The operator is responsible for proper disposal of the Vacuum Pump. When disposing of equipment observe the local regulations and statutory require- ments regarding waste disposal. Operation Manual Vacuum Pump V-100 43/52...

  • Page 44: Appendix

    100.2 0.684 Hexane 86.2 0.660 Isopropylalcohol 60.1 0.786 Isoamylalcohol (3- 88.1 0.809 methyl-1-butanol) Methylethylketone 72.1 0.805 Methanol 32.0 1227 0.791 Methylene chloride, 84.9 1.327 dichloromethane Pentane 72.1 0.626 n-propylalcohol 60.1 0.804 Pentachloroethane 202.3 1.680 44/52 Operation Manual Vacuum Pump V-100...
  • Page 45 72.1 – 0.889 rane) Toluene 92.2 0.867 Trichloroethylene 131.3 1.464 Water 18.0 2261 1.000 Xylene (mixture) 106.2 – – o-xylene 106.2 – 0.880 – m-xylene 106.2 – 0.864 – p-xylene 106.2 – 0.861 – Operation Manual Vacuum Pump V-100 45/52...

  • Page 46: Spare Parts And Accessories

    BÜCHI Labortechnik AG 10.2 Spare parts and accessories Use only genuine BUCHI consumables and spare parts in order to ensure correct, safe and reliable operation of the system. NOTE Any modifications of spare parts or assemblies are only allowed with the prior written permission of BUCHI.

  • Page 47: Wear Parts

    Membrane. For pump head, incl. clamp, support ring 047153 Membranes, set. 10pcs, for pump head, incl. clamp, support ring 11055214 O-ring. For secondary condenser, FKM/FEP, Ø28.2/2.6mm 11057661 O-rings, set. 4pcs, FFKM, Ø15.4/1.55mm, white 11057136 Operation Manual Vacuum Pump V-100 47/52...

  • Page 48: Spare Parts

    Content: Pump head, set connection piece straight, set connection piece angled Silencer. Incl. cap nut, GL14, FEP seal 047090 For Vacuum Pump V-100 / V-700 or V-710 Tubing. Silicone rubber, Ø6/16, red, 2m 040459 Utilization: Vacuum Support secondary condenser V. Incl. holder, FEP seal, connec-...

  • Page 49: List Of Abbreviations

    If the product is contaminated, inform the carrier (in accordance with GGVE/ GGVS/RID/ADR). If the declaration is missing or the procedure described is not followed, the repairs will be delayed. We ask for your understanding and cooperation with regard to these measures. Operation Manual Vacuum Pump V-100 49/52...

  • Page 50: Health And Safety

    — we have taken all measures necessary to prevent potential hazards in respect of the products returned. Company name or stamp: Place, date: Name (block letters), position (block letters): Signature: 50/52 Operation Manual Vacuum Pump V-100...
