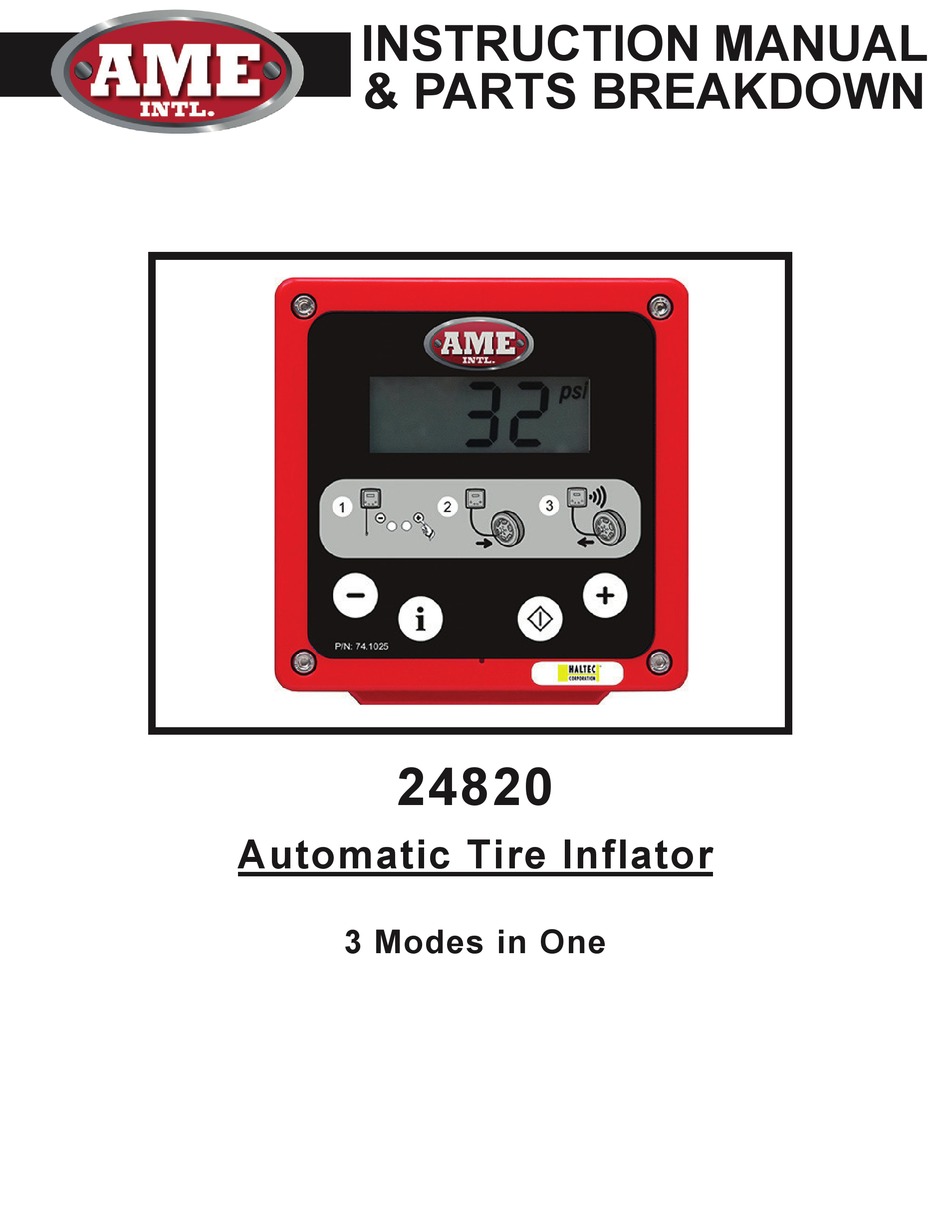

- Page 1 INSTRUCTION MANUAL & PARTS BREAKDOWN ogen N 24820 Automatic Tire Inflator 3 Modes in One...
-
Page 2: Table Of Contents
89MXA Specifications Installation Operation Switch Functions Inflation & Deflation Volume Adjustment Troubleshooting Wiring Diagram Control Wiring Diagram Spare Parts & Accessories Component Replacement Compressed Air Systems Warranty 10.0 Initial Verification Certificate 11.0 Glossary & Conversions AME INTERNATIONAL - 2 -... -
Page 3: Introduction
The process will only commence when there is more that 3 psi, 20 kPa or 0.2 bar in the tire when the hose is connected. AME INTERNATIONAL - 3 -... -
Page 4: General Specifications
5 psi, 35 kPa, 0.3 bar Accuracy Up to 0.5% FS Display Increments 1 psi, 5 kPa, 0.1 bar Units of Measurement psi, kPa, bar, kg/cm2 Default to Safe Setting 1 minute (DTSS) Reset Time (Retail Petroleum Equipment ONLY) AME INTERNATIONAL - 4 -... -
Page 5: 89Mxa
If internal fixing screws are used, Connect the power supply, refer to the rating label ensure these fasteners are sealed and caps are fitted to for correct power requirements. maintain the IP rating of the unit. AME INTERNATIONAL - 5 -... -
Page 6: Operation
The ʻ ʼ Switch discharges up to five (5) bursts of air. Used when the pressure in the tire is less than 3psi, 20kPa or 0.2 bar. AME INTERNATIONAL - 6 -... -
Page 7: Inflation & Deflation
3.2.7 When the set pressure is reached the display will flash and the unit will beep five (5) times. This will continue until the hose is disconnected, during this time the keypad will be disabled. AME INTERNATIONAL - 7 -... -
Page 8: Volume Adjustment
Turn the unit on, VOL will be displayed. 3.3.4 Adjust the volume using ʻ+ʼ and ʻ-ʼ switches, refer to Section 3.1. 3.3.5 To store the settings press the ʻ ʼ switch. Further changes can be made by repeating the above procedure. AME INTERNATIONAL - 8 -... -
Page 9: Troubleshooting
140 kPa or 1.4 bar. the power for a minimum of 5 sec. If error message reappears replace PCB. Low voltage supply. Check power supply. The message will clear when the correct voltage is restored. AME INTERNATIONAL - 9 -... - Page 10 Check the supply pressure. Hose disconnection during inflate cycle Check hose connection. Short circuitry on valve connection Check and dry up the valve connection. Short circuitry on buzzer connection Check and dry up the buzzer connection. AME INTERNATIONAL - 10 -...
-
Page 11: Wiring Diagram
INSTRUCTION MANUAL & PARTS BREAKDOWN Wiring Diagram WARNING Ensure that the product is connected to the correct power and air supply, refer to rating label and general specifications. AME INTERNATIONAL - 11 -... -
Page 12: Spare Parts & Accessories
Clip on Heavy Duty Hose Chuck 1/4” 91.0211 Hold on Twin Chuck 1/4” Hose Kit 61.1018 2m Black Hose fitted with Standard JP Coupling and Heavy Duty Hose Chuck Other colours available on request 41.0702 Beeper, suits 89MXA AME INTERNATIONAL - 12 -... -
Page 13: Component Replacement
Remove the four (4) cover screws. 7.2.2 Remove the beeper lockring on the outside of the enclosure. 7.2.3 Remove the beeper by lifting off the cable terminal from the PCB. Installation is the reversal of this procedure. AME INTERNATIONAL - 13 -... -
Page 14: Compressed Air Systems
150 psi, 1035 kPa or 10.3 bar. CAUTION This equipment has NO user serviceable parts. Only trained, experienced repair personnel employed by an authorised service agent should perform service to this equipment. AME INTERNATIONAL - 14 -... - Page 15 CAUTION If this equipment is being installed on a retail petroleum site consideration must be given to the requirements of Australian Standard AS/NZS2430.3 or the relevant Hazardous Area standard for your region. AME INTERNATIONAL - 15 -...
-
Page 16: Warranty
Haltec Corporation further excludes liability for consequential and incidental losses including but not limited to the loss of profits which may arise out of the breakdown or failure of any product. AME INTERNATIONAL - 16 -... -
Page 17: Initial Verification Certificate
EN 61000-3-3:1995 Inc A1:2001 Further testing and approval information is available upon request Manufactured for Haltec Corporation by Airtec Corporation (Asia) Pte Ltd 67 Ubi Crescent #01-02 Singapore 408560 Model 89MXA Product Serial No......... PCB Serial No........AME INTERNATIONAL - 17 -... -
Page 18: Glossary & Conversions
INSTRUCTION MANUAL & PARTS BREAKDOWN 11.0 Glossary & Conversions Units of Measurement Pounds per square inch Kilopascals Barometric Atmospheres Kg/cm2 Kilograms per square centimetre International Protection Rating Cubic Feet per Minute Litres per Minute Printed Circuit Board Sample Tube Connects the valve block & PCB Liquid Crystal Display Conversions 1 psi = 6.8947 kPa...
