Summary of Contents for AME Fasy-Flate 24868

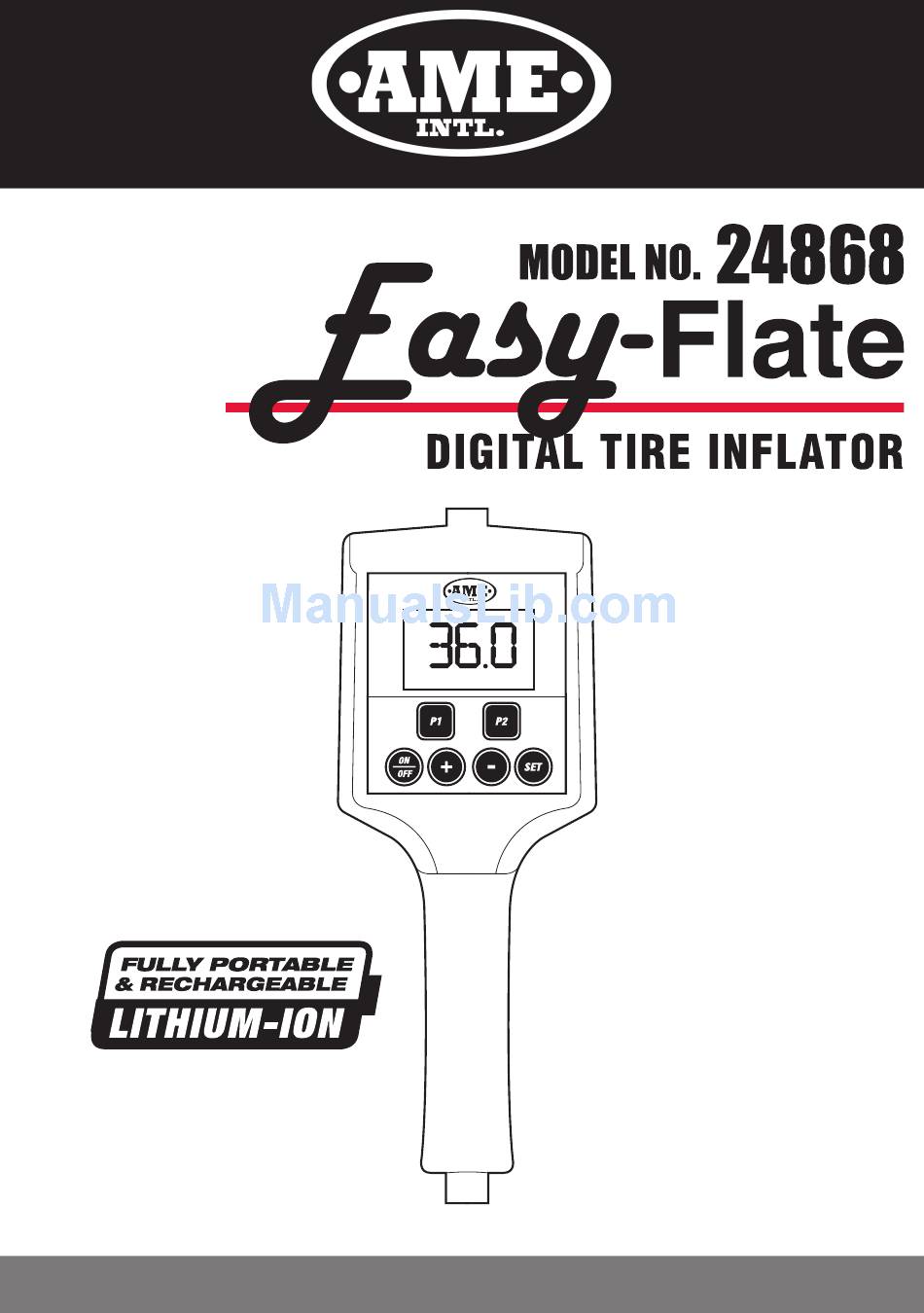

- Page 1 Part No. 24868...
- Page 2 Digital Automatic Tire Inflator (Portable) Thank you for selecting our Digital Automatic Tire Inflator (Portable), please read this manual carefully before using. This manual is an integral and essential part of the product, please keep it away from damp, heat, dust, oils, do not remove, tear or amend any parts of the manual for any reason.
-
Page 3: Table Of Contents
Instruction Manual Table of Contents Components List Features Introduction Control Panel Function and Operation Troubleshooting Maintenance Specifications Calibration Certificate... -
Page 4: Components List
Components List 1/4 '' BSP to 1/4 '' NPT adaptor ■ Inflator ■ Hot shoes* and charger ■ AU, UK, EURO, USA Instruction manual ■ Hose: 5 ft ■ ✔ * Illustrative purposes only... -
Page 5: Features
Instruction Manual Features Control Panel Auto-off after 90 seconds ■ Max. Pressure 174 p.s.i. ■ Ideal for cars, trucks, bikes etc ■ Large easy to read LCD display ■ with audible warning Rechargeable Lithium-Ion battery ■ Tough ABS case ■ Individually calibrated and tested ■... -
Page 6: Function And Operation
LCD Display 2. Set OPS (Over Pressure Setting) 2.1. Press (SET) once, (SET) and (OPS) SET OPS will be shown on the LCD screen, (OPS) will be flashing. 2.2. Press (+) or (-) to choose the OPS value. 2.3. Press (SET) to confirm. If OPS value is not zero, (OPS) will be displayed at the LCD screen. - Page 7 Instruction Manual 5. Inflation and Deflation 4. During inflation, the device will check tire pressure automatically, the working 1. Press (P1) or (P2) to select default preset indicator will be on, left to right means pressure. inflating, right to left means deflating. 2.
-
Page 8: Troubleshooting
Troubleshooting PROBLEM POSSIBLE CAUSE SOLUTION Air leak Leak in the connection Check the Connection The inflator works, Obstruction in filters or in Clean the filters and but no air is flowing air system check the air source No display Flat battery Recharge battery Check the hose Inflation does not start,... -
Page 9: Maintenance
Instruction Manual INSTRUCTION MANUAL Maintenance The device does not require particular maintenance, routine check of the air connections is suggested. In the event that maintenance is required it should be carried out by qualified personal. Note This unit must be used with clean dry air. Therefore an air filter must be used with this unit to ensure its continued reliability. -
Page 10: Specifications
Specifications Inlet Size Scale ■ ■ 1/4 '' NPT 174 p.s.i. Accuracy Chuck Type ■ ■ +/-0.3 p.s.i. Clip on Max Inlet Air Supply Chuck Style ■ ■ 180 p.s.i. Single straight Supply Voltage Reader Unit ■ ■ DC 12V rechargeable battery (Li-ION) Digital display with audible warning Charger Voltage Dimensions... -
Page 11: Calibration Certificate
Instruction Manual Calibration Certificate This Digital Automatic Tire Inflator has been calibrated in its normal working position on test equipment with an accuracy that is traceable to International Standards according to: 86/217/EEC. ALLOWABLE TOLERANCE ±1.2 up to and including 58 p.s.i. p.s.i. - Page 12 Product No. 24868...
