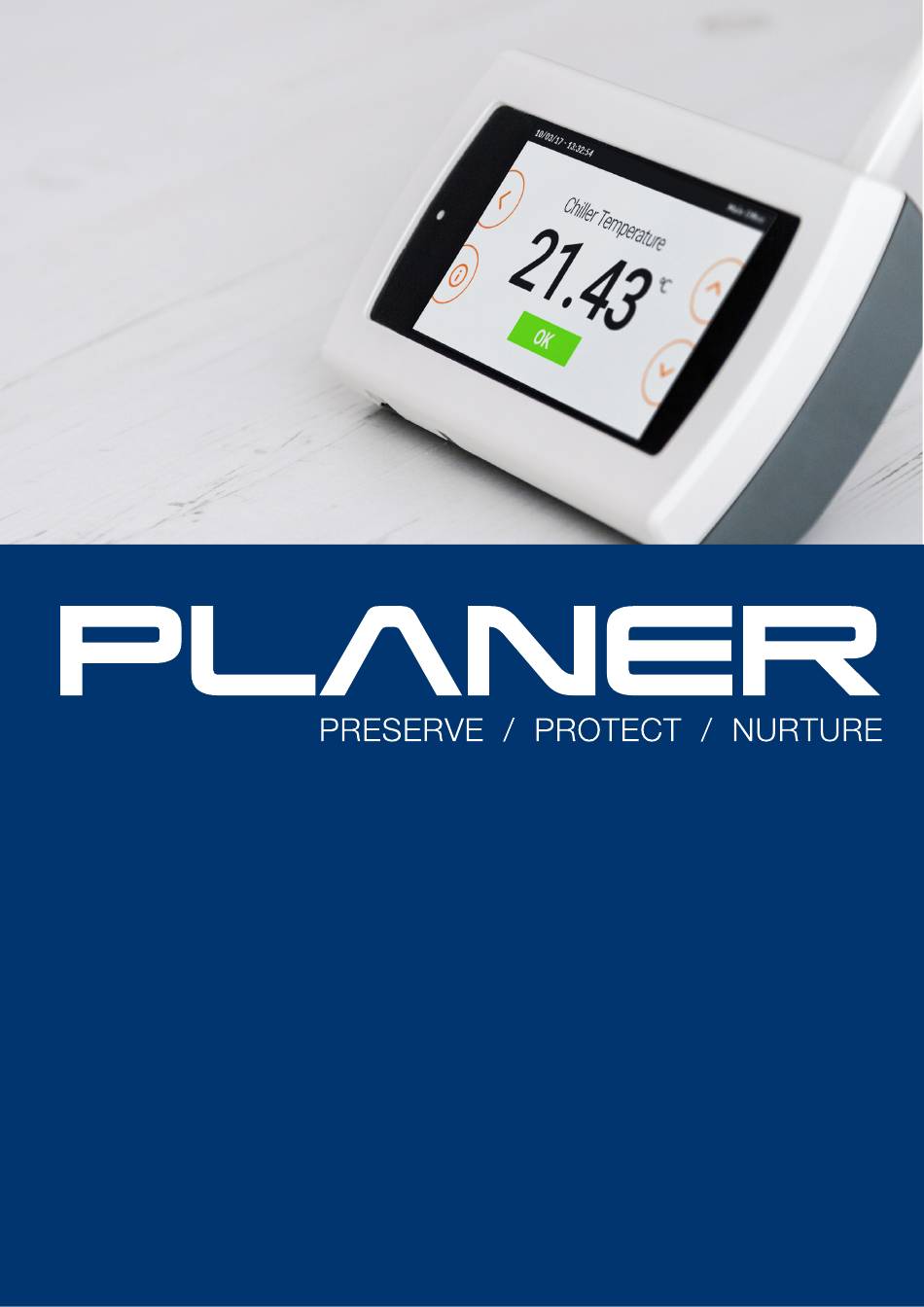

- Page 1 User Manual, Set Up & Installation Guide Covering DATAssure Monitoring System Base Stations...
-
Page 2: Systems Covered By This Manual
The following products comply with FCC & ISEDC; P1-DATAssure D3101-2400E, P1-DATAssure D3102-2400E, P1-DATAssure D3103-2400E, P1-DATAssure D3104-2400E, P1-DATAssure D3101-2400, P1-DATAssure D3102-2400, P1-DATAssure D3103-2400 & P1-DATAssure D3104-2400. Contains FCC-ID: QOQMGM12P3 ISEDC Contains Transmitter Module IC: 5123A-MGM12P3 Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 2... -
Page 3: Safety Information
1.6. Loss of Life & Personal Harm Applications The DATAssure D3 family of monitoring systems must not be used in life support, critical care, medical, safety equipment, or similar applica- tions where product failure could result in loss of life or personal or physical harm.. The systems can be used for environment monitoring to gain performance data but must not be used as a primary alarm system. -
Page 4: D3 Base Station Assembly
Functionality across the DATAssure D3 family of base stations varies, this manual covers all base station systems. Differences in functionality will be noted against each section within the document as necessary. -
Page 5: Table Of Contents
Adding an Alarm Note 6.2. Unacknowledged Alarms 6.2.1. Acknowledging an Alarm 6.3. Historical Alarms 6.4. Audit Information REPORTS 7.4.1. Select Date 7.4.2. Daily Overview Report 7.4.3. Daily Sensor Report Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 5... - Page 6 Creating Pulse Kwh Sensor Type 11.7.2. Creating a Pulse Flow Sensor Type 11.7.3. Creating a Digital Sensor Type 11.7.4. Creating a Voltage, Current & Resistance Sensor Type Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 6...
- Page 7 16.1. Software Update 16.2. Backup Configuration 16.3. Restore Configuration 16.4. Restore Configuration to a Replacement Base Station 16.5. Maintenance 16.5.1. Cancel all queued alarms 16.5.2. Re-index archive files Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 7...
- Page 8 21.2. Battery Back-Up (if installed) 21.3. Wireless Transmitter Battery 21.3.1. Lithium AA Cell - Legacy Sensor can only use this battery 21.3.2. Alkaline AA Cell - Annex 1 - Technical Specification Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 8...
-
Page 9: Base Station
Acknowledgement via the networked access allows for a user to choose multiple alarms and single click acknowledgement – see section 6.2 Unac- knowledged Alarms Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 9... -
Page 10: Alarm Acknowledgement Via Base Station
IP is entered in the address bar. Select the relevant IP mode required and Accept. The base station will now be operating in the selected mode. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 10... -
Page 11: Re-Calibrating The Touch Screen
Battery – shows if a battery back-up is installed on the system Version - shows the software version on the base station and the radio software version and frequency. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 11... -
Page 12: Networked Interface
3. Networked Interface The DATAssure D3 family of base stations are all designed to be accessed over a networked interface, the interface used is a standard internet browser on a PC/Laptop or mobile device with access to the same network as the base station. For the purpose of this manual Google Chrome has been used. -
Page 13: Sensor Readings & Meaning Of Status Messages
Note - these functions can only be set by the System Administrator privilege access level, see Sections 13.2 Alarm Profiles & 14.2 Scheduler for more informa- tion. Clicking the red cross in the left hand score of the detail screen returns the view to the default Status menu. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 13... -
Page 14: Edit Alarm Set Points
Week – Displays the last 7 days of data Month – Displays the last month’s data User Defined – Displays the user selected date range (up to 1 year) Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 14... -
Page 15: Graph View
Status – shows the current status of the sensors readings; Alarm shows the sensor is still in an alarm status, Cleared shows that the alarm has cleared but indicates that the alarm event has not yet been acknowledged. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 15... -
Page 16: Alarm Details
The layout of the Historical page is similar to that of the Current alarm page with 2 additions. These additions are; 1. User Defined Date Search – search based on user defined start and end period. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 16... -
Page 17: Audit Information
Should a user forget their login details then they should contact the system Administrator, the Administrator can reset a default login and the user can then complete section 8.1 Updating/Changing User Login Details. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 17... -
Page 18: Set-Up Guide
Quick Start Guides are also issued with new sensors, these guides explain how to configure the sensors to a base station, and these should be used in conjunction with this document during sensor set-up. Note (No.) A number in brackets refers to relevant part of the system outlined in the System Overview DATAssure D3 Base Station Assembly of the User Guide New System Set-up Hint - Once set-up the base station retains the configuration of all sensors, users, etc. -
Page 19: Ip Setup Via The Base Station
• Site Settings – Includes the basic system set up, the scheduler settings that sensors and alarms can be configured against and the ability to amend the systems Time/Date. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 19... -
Page 20: Sensor Administration
3rd party sensors and meters using the DATAssure D3’s range of Linear, Digital and Pulse probes. • Network Diagram - 2.4Ghz SYSTEMS ONLY - allows for a pictorial view of sensor communication routes and status. -
Page 21: Adding The Device/Sensor
The pairing process to link the wireless sensor to the device created on the base station is a button pressing process. The wireless sensor must be within communications distance of the DATAssure D3 for pairing to be completed. For each Legacy device to be linked follow the step by step guide below. -
Page 22: Intelligent Sensors
The pairing process to link the wireless transmitter to the device created on the base station & to the intelligent sensor is a button press- ing process. The wireless transmitter must be within communications distance of the DATAssure D3 for its pairing to be completed. -
Page 23: Deleting, Disabling & Decommissioning Devices & Groups
A resolution from Integer (no decimal places) to 3 decimal places can be selected. Once selected this resolution level will be displayed on the base station and via the network interface for the selected device only. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 23... -
Page 24: Custom Sensor Database
3. Any reading the sensor records under 3 bar would show as zero on the system. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 24... -
Page 25: User Settings
Fault Threshold - This allows for fault threshold to be entered for the DATAssure D3 to warn of possible 3rd party sensor failure. If ena- bled lower and upper inputs can be entered to trigger a fault alarm. In the example the lower limit would be less than x1 output reading, the upper would be greater than x2 output reading. -
Page 26: Adding Users
Only Administrators can delete users from the system. Clicking the Delete User button will open the Delete User screen. User name & password confirmation for the completion of the deletion process is then required. DATAssure D3 Medical systems require two Administrators to action the deletion of a user. -
Page 27: Alarms
Numerous alarm profiles can be created with different actions to be completed on alarm. Sensors can then be associated with a profile that gives the desired outputs based on the users needs. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 27... -
Page 28: Creating An Alarm Profile
Adding an alarm profile to a sensor/device is completed by clicking the alarm edit button on the Sensor Detail page - see section 4.2 Sensor Detail. The required alarm profile is selected from the alarm profile drop down selection, clicking Submit enacts the alarm profile for that sensors. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 28... -
Page 29: Site Settings
– dims and brightens the DATAssure D3 base station screen in normal operation mode Display Sleep Period – allows users to select a period after which the DATAssure D3 base station screen goes into hibernation mode. Screen is woken by pressing within the touch screen area. -
Page 30: Example - Activate Inside Set Hours Schedule
- A valid email address for the SMTP Server being used needs to be entered Retries - If the DATAssure D3 fails to send an email due to network issues it can be set to retry a number of times Retry Delay (minutes) - the delay between the email retries can be set in minutes Once all email details are entered the email settings are Submitted for the changes to take effect. -
Page 31: Bureau Access Setup
- toggle selection Yes/No, default is No. Yes will mean notification is sent at the time the alarm clears Retries & Retry Delay - where communication failure is detected to the external IP the DATAssure D3 can be set to automatically retry to send a number of times, a delay between retries can also be entered. -
Page 32: Maintenance
This allows for the alarm and audit histories to re-index the locations of archived data in the system memory. This increases the speed of the search functions and is necessary after the system configuration has been re-installed. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 32... -
Page 33: Installing The Base Station
Note - Ensure the screw heads are below the level of the plate surface in the countersunk fixing holes. Failure to do so may result in damage to the back surface of the base station during the mounting process. Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 33... -
Page 34: Mounting/Dismounting The Base Station
20. Changing the Micro MMC Card Applicable to the DATAssure D3 & DATAssure D3 Medical only. From manufacture the unit is supplied with an industrial grade micro MMC card as the back-up memory. This MMC card can be changed by opening the micro card holder. -
Page 35: Battery Replacement
2 - With the battery lid removed, invert the wireless sensor to allow the battery to be removed. 3 - Place the new battery into the sensor with the positive terminal first, Replace the cap and re-tighten in a clockwise rotation Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 35... -
Page 36: Annex 1 - Technical Specification
Battery Back Up Type Plug connection lithium ion rechargeable Power Voltage 3.7V Capacity 2050mA Recharge Time 2.5 hours (from flat) Test Cycle Advise monthly by removing system power Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 36... -
Page 37: Doc: 106-10051-03 (Planer Datassure D3 User, Set-Up & Installation Manual) Page No
Notes Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 37... - Page 38 Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 38...
- Page 39 Doc: 106-10051-03 (Planer DATAssure D3 User, Set-up & Installation Manual) Page No. 39...
- Page 40 Distributed by: Planer PLC Windmill Road Sunbury TW16 7HD Tel. : +44 (0) 1932 755000 Fax. : +44 (0) 1932 755001 Email: Sales@planer.co.uk Product Disclaimer: TEK TRONIKS LTD RESERVES THE RIGHT TO CHANGE PRODUCTS, INFORMATION AND SPECIFICATIONS WITHOUT NOTICE. Products and specifications discussed herein, on Tek-troniks.com and any Tek Troniks Ltd product datasheets or information provided by any employee or distributor are for reference purposes only and not a guarantee of their performance.
