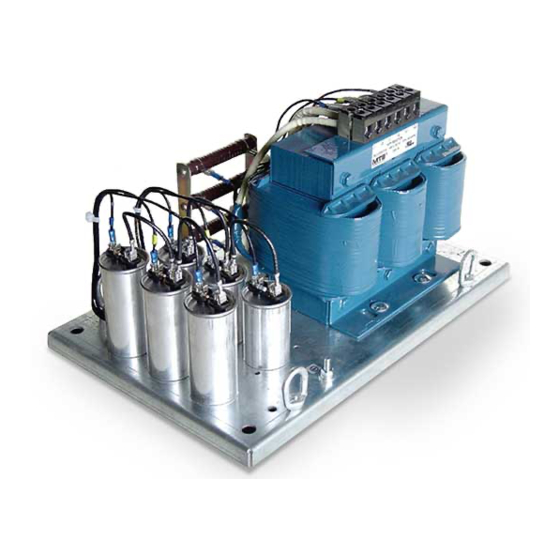

MTE Sine Wave Filter User Manual

Series a 200- 600 vac
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Sine Wave Filter
Series A
200- 600 VAC
USER MANUAL
PART NO. INSTR - 020
REL. 080310
© 2008 MTE Corporation
M T E C o r p o r a t i o n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sine Wave Filter and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MTE Sine Wave Filter

Summary of Contents for MTE Sine Wave Filter

  • Page 1 M T E C o r p o r a t i o n Sine Wave Filter Series A 200- 600 VAC USER MANUAL PART NO. INSTR - 020 REL. 080310 © 2008 MTE Corporation...
  • Page 2 IMPORTANT USER INFORMATION NOTICE The MTE Corporation Sine Wave Filter is designed to convert output voltage wave forms produced by a wide variety of PWM inverters into a low distortion sine wave for drive and power conversion applications. The suitability of this filter for a specific application must therefore be determined by the customer.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT USER INFORMATION ..................... 0 TABLE OF CONTENTS.......................... 0 1. IMPORTANT SAFETY INFORMATION ..................... 1 2. INTRODUCTION ..........................2 ......................2 EPAIR XCHANGE ROCEDURE 3. MODEL NUMBER CODES......................... 3 4. SPECIFICATIONS ..........................4 ...................... 4 FFICIENCY AND HERMAL ATINGS ..........................

  • Page 5: Important Safety Information

    DEATH MAY RESULT IF THE DRIVE SAFETY PRECAUTIONS ARE NOT OBSERVED. WARNING The filter must be grounded with a grounding conductor connected to all grounding terminals. WARNING Only spare parts obtained from MTE Corporation or an authorized MTE distributor can be used. Part No. INSTR-020 REL. 080310...

  • Page 6: Introduction

    Upon Receipt of this Filter: The MTE Sine Wave Filter has been subjected to demanding factory tests before shipment. Carefully inspect the shipping container for damage that may have occurred in transit.

  • Page 7: Model Number Codes

    Sine Wave 2-8 kHz Series A Filter 3. MODEL NUMBER CODES Model Code Part Number Configuration SW A X Y _ _ _ _ X Sine Wave filter Series Version. A, X Options “X” denotes Non standard Configurations 01 NC Overtemp...

  • Page 8: Specifications

    Sine Wave 2-8 kHz Series A Filter 4. SPECIFICATIONS Efficiency and Thermal Ratings Table 1 200 - 230 VAC, 50/60 Hz 380 - 480 VAC, 50/60 Hz 550 - 600 VAC, 60 Hz Filter Filter Filter Ratings Filter Ratings Ratings Power Power Power...

  • Page 9: Service Conditions

    Sine Wave 2-8 kHz Series A Filter Service Conditions Input voltage: 200 – 600 VAC +/- 10%, 50 & 60 Hz Input voltage wave form: PWM Switching Frequency: 2 – 8 kHz Operating frequency: 6 – 60 Hz without de-rating Temperature: Open filters -40 to 50 °C...
  • Page 10 Sine Wave 2-8 kHz Series A Filter Typical Performance Data Fig.1 Raw drive output voltage Fig. 2 Output voltage after sine wave filter Part No. INSTR-020 REL. 080310...
  • Page 11 0.90 0.85 0.80 0.75 0.70 3300 6600 9900 13200 16500 ALTITUDE (FEET) Inverter Frequency De-rating Chart 2 Sine Wave Filter Current Derating for Drive output Frequency 1.05 0.95 0.85 0.75 0.65 Output Drive Frequency Hertz Part No. INSTR-020 REL. 080310...

  • Page 12: Mechanical Data

    Sine Wave 2-8 kHz Series A Filter 5 Mechanical Data 200 - 230 Volts Table 10 Open NEMA 1* NEMA 3R Filter Amps Cat PN. Cat PN. Cat PN. Fig. Fig. Fig. SWAP0003A SWAGA0003A 32 SWAWA0003A 89 SWAP0005A SWAGA0005A 37 SWAWA0005A 94 SWAP0007A SWAGA0007A 40...

  • Page 13: 380 - 480 Volts

    Sine Wave 2-8 kHz Series A Filter 380 – 480 Volts Table 2 Open NEMA 1 NEMA 3R Filter Amps Cat PN. Cat PN. Cat PN. Fig. Fig. Fig. SWAP0002D SWAGA0002D 32 SWAWA0002D 89 SWAP0003D SWAGA0003D 34 SWAWA0003D 91 SWAP0005D SWAGA0005D 38 SWAWA0005D 95 SWAP0009D...

  • Page 14: 550 - 600 Volts

    Sine Wave 2-8 kHz Series A Filter 550 - 600 Volts Table 3 Open NEMA 1 NEMA 3R Filter Amps Cat PN. Cat PN. Cat PN. Fig. Fig. Fig. SWAP0002E SWAGA0002E 34 SWAWA0002E 91 SWAP0003E SWAGA0003E 37 SWAWA0003E 94 SWAP0005E SWAGA0005E 40 SWAWA0005E 97 SWAP0007E...

  • Page 15: Installation Instructions

    Sine Wave 2-8 kHz Series A Filter 6. INSTALLATION INSTRUCTIONS Figure A & B for the dimensions of the separately mounted reactor and the RC panel. Sine Wave filters are supplied in the following mechanical configurations: The RC panel should be located away from Panel mounted assemblies the reactor and in the lowest temperature regions of the enclosure –...

  • Page 16: Open Panel Customer Connections

    Sine Wave 2-8 kHz Series A Filter Open Panel Customer connections Open Panel: 3 – 30 Amps 200 - 230 VAC 9 - 17 AMPS 380 - 480 VAC 9 - 12 AMPS 550 - 600 VAC Fig. 3 17 Amp Shown Part No.
  • Page 17 Sine Wave 2-8 kHz Series A Filter Open Panel: 45 – 60 AMPS 200 – 230 VAC 22 - 55 AMPS 440 - 480 VAC 17 - 45 AMPS 550 - 600 VAC Fig. 4 45 Amp shown Part No. INSTR-020 REL. 080310...
  • Page 18 Sine Wave 2-8 kHz Series A Filter Open Panel: 65 - 80 AMPS 440 - 480 VAC 55 - 65 AMPS 550 - 600 VAC Fig. 5 80 Amp Shown Part No. INSTR-020 REL. 080310...
  • Page 19 Sine Wave 2-8 kHz Series A Filter Sine Wave Filters rated 80 amps through 720 amps are made up of a reactor and a RC panel. These components are designed to be mounted vertically within an appropriate enclosure. The reactor generates heat and should be mounted away from components affected by heat.
  • Page 20 Sine Wave 2-8 kHz Series A Filter RC Panel: 85 – 160 AMPS 200 - 230 VAC 110 - 160 AMPS 380 - 480 VAC 80 - 250 AMPS 550 - 600 VAC Fig. B Part No. INSTR-020 REL. 080310...
  • Page 21 Sine Wave 2-8 kHz Series A Filter RC Panel: 200 - 320 AMPS 200 - 230 VAC 200 - 515 AMPS 380 - 480 VAC 305, 365, 515 AMPS 550 - 600 VAC Fig. C Part No. INSTR-020 REL. 080310...
  • Page 22 Sine Wave 2-8 kHz Series A Filter RC Panel: 600 - 720 AMPS 440 - 480 VAC 415, 600, 720 AMPS 550 – 600 VAC Fig. D Part No. INSTR-020 REL. 080310...

  • Page 23: Vertical Mounting Of Open Reactor & Rc Panel

    Sine Wave 2-8 kHz Series A Filter Fig. 6 Vertical MOUNTING OF OPEN REACTOR & RC Panel 600 amp open reactor & RC panel shown in customer provided enclosure and mounting hardware. NOTE: Maintain orientation as shown for proper component cooling. Do not place RC panel above reactor or position capacitors above resistors.

  • Page 24: 350H Pmcc Using Optional Bay For Sine Wave Installation

    350Hp MCC using optional bay for Sine Wave installation Fig. 7 Note: The above Sine Wave filter example is shown with customer provided support hardware. Other installation variations are at the customer’s discretion as long as thermal guidelines are followed.
  • Page 25 Sine Wave 2-8 kHz Series A Filter Enclosed Units Table 5 Enclosure Cab Part NEMA Width Height Depth Figure Indicator Type Cab 13V NEMA 1 Cab 17V NEMA 1 Cab 26C NEMA 1 -2 Cab 30C NEMA 1 -2 Cab 42C NEMA 1 -2 12.5 Cab 12C...
  • Page 26 Sine Wave 2-8 kHz Series A Filter Enclosed Units By Current Table 6 General Purpose General Purpose General Purpose Cabinets Filter Cabinets Cabinets 550– 600VAC Current 200– 230 VAC 380 – 480 VAC Rating NEMA 1 NEMA 3R NEMA 1 NEMA 3R NEMA 1 NEMA 3R...

  • Page 27: Enclosed Nema 1

    Sine Wave 2-8 kHz Series A Filter Enclosed NEMA 1 Fig. 8 Cab - 13V Fig. 9 Cab - 17V Part No. INSTR-020 REL. 080310...

  • Page 28: Enclosed Nema 1-2 & 3R Units

    Sine Wave 2-8 kHz Series A Filter Enclosed NEMA 1-2 & 3R units Fig. 10 Cab - 12C Fig. 11 Cab - 17C Part No. INSTR-020 REL. 080310...
  • Page 29 Sine Wave 2-8 kHz Series A Filter Enclosed Outline Drawings NEMA 1-2 and 3R Enclosures Enclosure Dimensions Fig. 12 Cab - 26C Fig. 13 Cab – 30C Part No. INSTR-020 REL. 080310...
  • Page 30 Sine Wave 2-8 kHz Series A Filter Enclosed Outline Drawings NEMA 1-2 and 3R Enclosures Continued Fig. 14 Cab – 42C Part No. INSTR-020 REL. 080310...

  • Page 31: Wiring Connections

    Sine Wave 2-8 kHz Series A Filter For panel mounted filters rated 80 amperes or 7 Wiring Connections more, the filter reactor is supplied loose and the RC network is supplied as an RC panel WARNING assembly. Refer to fig. 16 for a typical interconnection diagram.

  • Page 32: Sine Wave Interconnection Diagram

    Sine Wave 2-8 kHz Series A Filter Sine Wave Interconnection diagram Open Style 2 – 80 Amps Enclosed 2 – 720 Amps Fig. 15 Part No. INSTR-020 REL. 080310...
  • Page 33 Sine Wave 2-8 kHz Series A Filter Interconnection diagram Open Style 80 – 720 Amp Fig. 16 Part No. INSTR-020 REL. 080310...
  • Page 34 Sine Wave 2-8 kHz Series A Filter Isolation Transformer connections Fig. 17 Part No. INSTR-020 REL. 080310...

  • Page 35: Terminal Specifications

    Sine Wave 2-8 kHz Series A Filter Terminal Specifications Table 7 *Reactor to Filter Input / Output Terminals RC Panel Rating Open style only Terminal Wire Range 75 °C conductor Amps Torque (AWG) (in-lbs) 22-14 22-14 22-14 22-14 22-14 22-5 22-5 22-5 22-5...
  • Page 36 Sine Wave 2-8 kHz Series A Filter Maximum RC PANEL Current for Open Wiring Inter-connect wire sizes Table 8 Filter 230 Vac Units 460 Vac Units 575 Vac units Rating Amps Maximum Amps RMS Maximum Amps RMS Maximum Amps RMS See figure 16 for interconnection details.

  • Page 37: Option 01

    Sine Wave 2-8 kHz Series A Filter Option 01 OVER TEMPERATURE INTERLOCK Table 9 TYPE BI – METAL THERMAL SWITCH CONTACT (NC) NORMALLY CLOSED 120 VAC RESISTIVE 240 VAC RESISTIVE RATINGS 120 VAC INDUCTIVE 2.5A 240 VAC INDUCTIVE TEMPERATURE CONTACTS OPEN 180°C Part No.

  • Page 38: Fan Power

    Sine Wave 2-8 kHz Series A Filter Fan Power All enclosed part number filters listed below have fans that require a source of clean 115 volt 50/60 Hz power. Table 10 Filter Voltage PN NEMA1 PN NEMA3R Fans total load amps SWAGC0200A SWAWC0200A 26C2/3 2 x 6"...

  • Page 39: Filter Description

    Sine Wave 2-8 kHz Series A Filter 8. FILTER DESCRIPTION The MTE Series A Sine Wave Filter is a Typical applications for Series A sine- low pass filter containing proprietary wave filters are submersible pumps, low voltage drives feeding medium voltage...

  • Page 40: Block Diagram

    Sine Wave 2-8 kHz Series A Filter 200 V – 600 VAC BLOCK DIAGRAM FIGURE 18 Part No. INSTR-020 REL. 080310...

  • Page 41: Startup

    Sine Wave 2-8 kHz Series A Filter 9. Startup Safety Precautions WARNING Use extreme caution to avoid contact Before startup, observe the following warnings with line voltage when checking for and instructions: power. INJURY OR DEATH MAY RESULT IF SAFETY PRECAUTIONS WARNING ARE NOT OBSERVED.

  • Page 42: Trouble Shooting

    Sine Wave 2-8 kHz Series A Filter 10. Trouble Shooting After removing power, allow at least five minutes to elapse and verify that WARNING the capacitors have discharged to a safe level before contacting internal INJURY OR DEATH MAY RESULT IF components.
  • Page 43 Solution: Select filter to match motor FLA, increase size of drive to allow for long lead cable application. PROBLEM: Sine Wave filter runs Hot Possible cause: Normal operation reactor and resistors are > 120 °C Solution: Caution parts are very hot and may cause burns. Follow installation guidelines for clearances and check for adequate air flow.
  • Page 44 TROUBLESHOOTING - continued ISO 7.2.3 Sine Wave Filter Series A 200-600 VAC User Manual INSTR-020 Revision Date Revision History 10/12/05 New document written by Wayne Walcott By WRW Updated per ECN 5695: updated open panel Reactor size table 080310 03/09/08 4;...
