MultiWave Sensors Smart Aligner User Quick Manual

Before starting DOWNLOAD the Smart Aligner App to your iPhone (iOS 7.0 or greater) or Android phone (4.1 or greater). For iOS go to the App Store and search "Smart
Aligner". For Android go to the Google Play Store and search "smart aligner multiwave". The iOS App and Android App have some differences as a result of different
operating systems. For Android devices with operating system less than 4.4 the Report will be in JPG format. For Android 4.4 the Report will be in PDF format (if high
resolution images are required select the JPEG option in Settings). This guide will show the user how to carry out an antenna alignment from start to finish for one
antenna and tool mounting configuration.

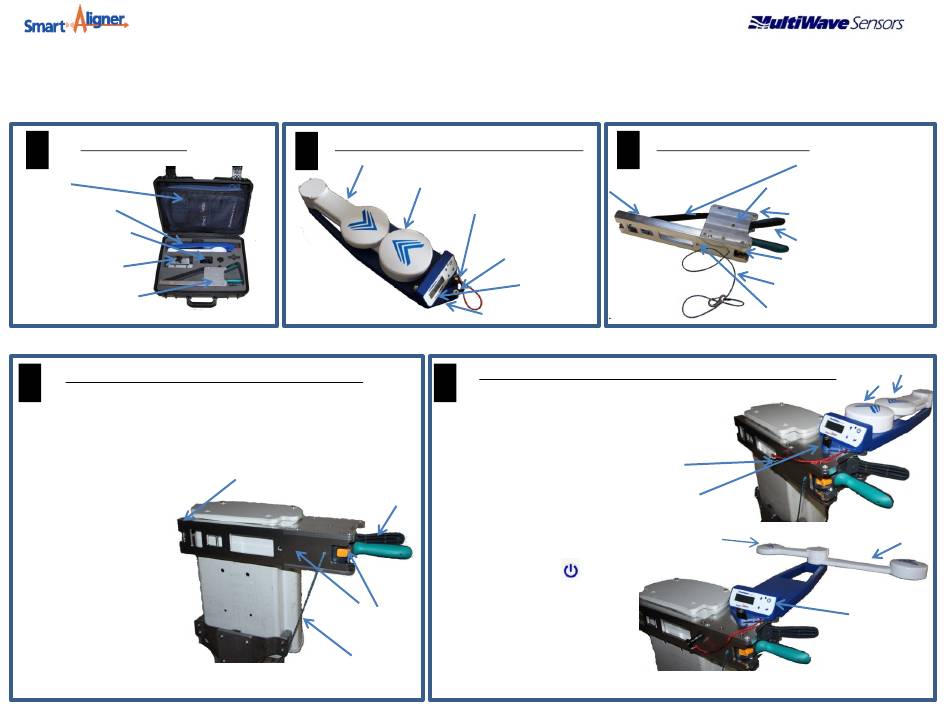

1 What's in the case?
Backpack
Smart Aligner Tool
Smart Aligner Chargers
Optional mounting
adapters. Not included
with base system
Universal Mounting Bracket
Attach the Universal Mounting Bracket to the antenna
4
1. Tether the Universal Mounting
Bracket to a solid location.
2. Set the Universal
Mounting Bracket on the
backplane of the antenna
as shown. Keep the
Bracket in place by
holding on to the handle.
3. Depress the orange
Strap Release button with
your thumb and hold it
4. With your other hand
attach the hook of the
Ratchet Strap to the
appropriate Ratchet Strap
Fastening Pin
5. Release the orange
Strap Release button but
still hold the Bracket
6. Squeeze the Ratcheting
Handles until the Bracket
is tight to the antenna
QUICK GUIDE v2
Main Components
Smart Aligner Tool (shown in folded position)
2
Small Arm
Performing an Antenna Alignment
NOTE: Universal Mounting
Bracket can be mounted on
either the right side (shown)
or left side of antenna
4
6
3,5
2
1
Long Arm
Tether Line/Pin
Mounting Screw Knob
User Interface
Mounting Dowel Pins
(under side)
Attach the Smart Aligner Tool to the Universal Mounting Bracket
5
7. Tether the Smart Aligner Tool to
the Universal Mounting Bracket
8. Line up the Mounting Dowel
Pins (underside of Tool) to the
Dowel Pin Receptacles on the
Universal Mounting Bracket
9. Tighten the Mounting Screw
Knob on the Smart Aligner Tool
10. Rotate Small Arm clockwise till
you feel/hear it click in and engage
11. Rotate the Long Arm counter-
clockwise till you feel/hear it click
in and engage
12. Press the POWER
button on the User Interface and
wait for an azimuth solution
13. Turn over page for App instructions
(example is for iOS.)
3 Universal Mounting Bracket
Ratchet Strap Fastening Pins
Mounting Screw Knob Receptacle
Tether Line
(to mast or other solid location)
Tether Line Receptacle (from Tool)
NOTE: Smart Aligner Tool can
be mounted either front
(shown) , right or back
7
8,9
10
Ratchet Strap with hook
Dowel Pin Receptacles on
4 corners
Ratcheting Handles
Strap Release (orange button)
11 10
11
12
