Summary of Contents for EEG iCap CC1260

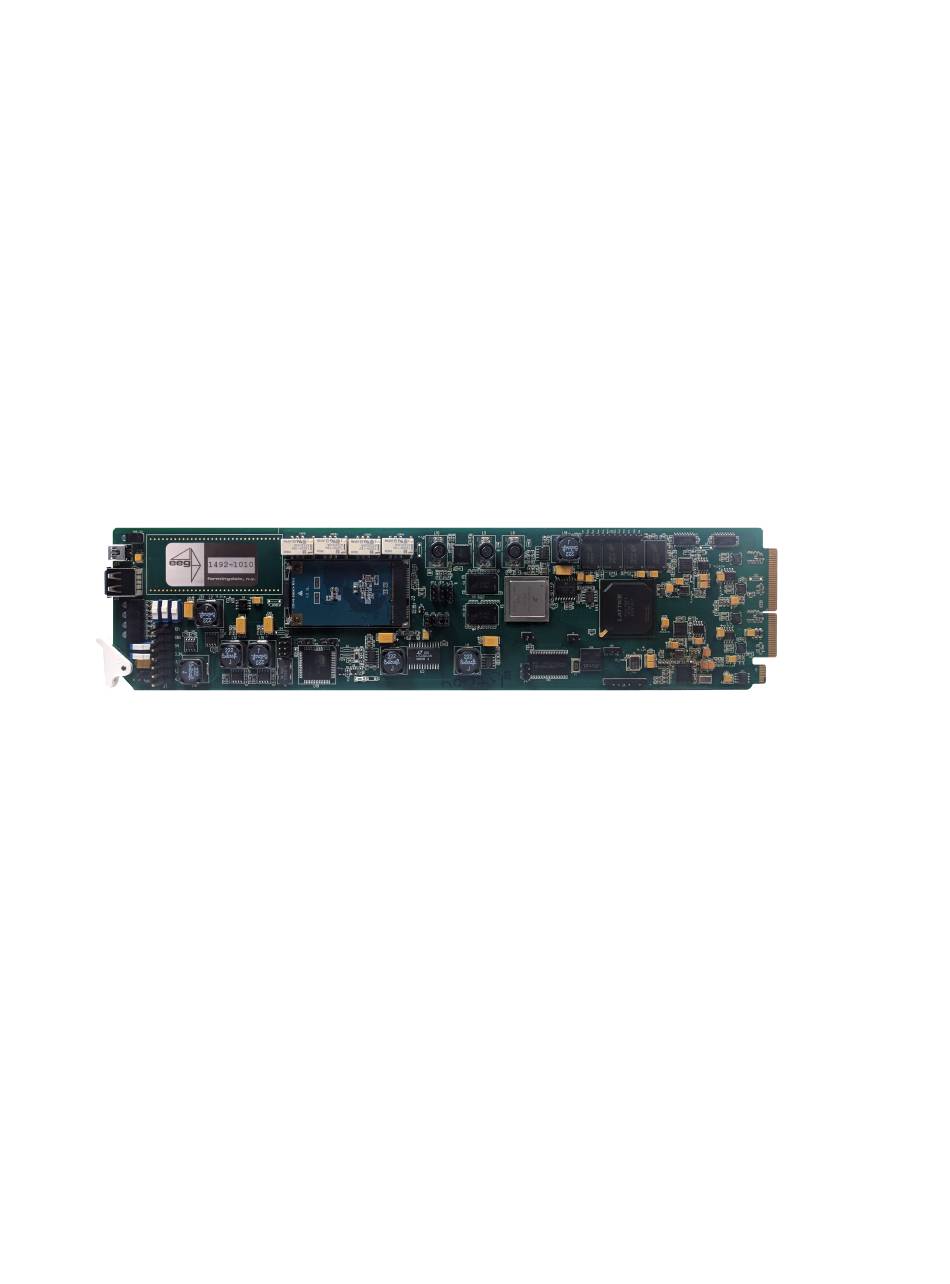

- Page 1 EEG CC1260 iCap™ Interface Card Product Manual EEG Enterprises, Inc. 586 Main Street Farmingdale, New York 11735 TEL: (516) 293-7472 FAX: (516) 293-7417 Copyright © EEG Enterprises, Inc. 2018 All rights reserved.
-
Page 2: Table Of Contents
3.3 Web Configuration ......12 4 Connecting to Remote Encoders A General-Purpose I/O B Serial Port Connector C Video/Connector Specifications Copyright © EEG Enterprises, Inc. 2018... - Page 3 CC1260 iCap™ Interface Card Copyright 2018, EEG Enterprises, Inc. All rights reserved. The contents of this manual may not be transmitted or reproduced in any form without the written permission of EEG. The revision date for this manual is June 5, 2018.
-
Page 4: Introduction
1 Introduction 1.1 Product Description The CC1260 iCap™ Interface Card provides access to EEG’s iCap™ net- work for legacy caption encoders. The CC1260 works just like any other iCap™ encoder from a captioner’s point of view, but it outputs caption data via TCP/IP and RS-232 to non-iCap™... - Page 5 CC1260 iCap™ Interface Card MASTER IN Master video input. Accepts SMPTE 259M SD–SDI, SMPTE 292M HD–SDI, or SMPTE 424M 3G–Level-A SDI. AUX IN Reserved. MASTER OUT Reserved. AUX OUT Reserved. GP IN A and GP IN B Two Molex 87831-0841 connectors, each containing 4 GPI inputs.
-
Page 6: Cc1260 Operation
CC1260 iCap™ Interface Card 3 CC1260 Operation 3.1 Front Panel The front of the CC1260 card is depicted in the following diagram: Power LED The power LED will be green when the card is receiving power from the frame. USB Connectors Reserved for future use. - Page 7 CC1260 iCap™ Interface Card There are two main sections in the DashBoard interface: the Status in- formation on the left side and the Setup menu on the right side. At the bottom of the interface, you will find the Upload button, which can be used to upgrade your CC1260’s DashBoard interface firmware, and the Reboot button, which can be used to reboot your CC1260.
- Page 8 CC1260 iCap™ Interface Card The lower section entitled Product displays identifying information about the hardware and software versions of the card. This section displays the supplier, the build number, the firmware number, and the ASW ver- sion to identify the software installed and the serial number of the card. The setup section in the right half of the interface is broken up into two tabs: System and Audio.
-
Page 9: System
CC1260 iCap™ Interface Card 3.2.1 System The System tab contains network configuration and remote connection setup fields. MAC Address Displays the encoder’s MAC address. Configuration Selects between static and DHCP network settings. IP Address Selects the IP address the unit will be as- signed on your LAN (read-only in DHCP mode). - Page 10 CC1260 iCap™ Interface Card Enable Remote Con- When set to Yes, the card will attempt to nection connect to a remote encoder at the IP and port specified below, for the purpose of for- warding incoming iCap™ caption data and commands.
-
Page 11: Audio
CC1260 iCap™ Interface Card 3.2.2 Audio The Audio menu allows configuration and monitoring of audio for iCap™. Audio Group Selects the SDI embedded audio channel group that the iCap™mix is sourced from. Up to 4 channel groups can be carried on an SDI sig- nal, though most commonly Group 1 carries the primary audio program. - Page 12 CC1260 iCap™ Interface Card Audio Mix Selects whether the iCap™ mix is being cre- ated from a Stereo or Surround channel group, or a single Mono channel. Choose “Stereo” to select a mix of the left and right channels (1 & 2 or 3 &...
-
Page 13: Web Configuration
CC1260 iCap™ Interface Card 3.3 Web Configuration The Web Configuration interface enables you to access configurations for your CC1260 applications from any computer on your local network. Several web applications are installed at the factory: a Startup Setting editor, a web-based serial-emulation Terminal for entering Smart En- coder commands, system date/time configuration, and configuration of iCap™... -
Page 14: Connecting To Remote Encoders
The CC1260 iCap™ Interface Card allows broadcasters and caption ser- vice providers to enter closed captions into an encoder that does not directly support EEG’s iCap™ system, while still leveraging many of the advantages of iCap™. Captioners can connect to the CC1260 using the same workflow they use with other iCap™-enabled products, while ad-... -
Page 15: A General-Purpose I/O
CC1260 iCap™ Interface Card A General-Purpose I/O Each of the 2 GPIO input banks, Bank A and Bank B, has the following pinout: Bank A provides GPI inputs 1-4: Input Pins 4 (D) 7, 8 3 (C) 5, 6 2 (B) 3, 4 1 (A) 1, 2... -
Page 16: B Serial Port Connector
The single-width and double-width rear modules both contain a single IDC-10 connector, providing the interface for serial ports P1 and P2. P1 can be configured as RS-232, RS-422 (Sony), or RS-422 (EEG), via the DashBoard interface. P2 operates as RS-232 only. The following image... -
Page 17: C Video/Connector Specifications
CC1260 iCap™ Interface Card C Video/Connector Specifications SDI Video Inputs Number of Active Inputs Connector BNC per IEC 169–8 Format 2.97 Gb/s SMPTE 424M, 1.485 Gb/s SMPTE 292M, or SMPTE 259M 270 Mb/s Input Level / Impedance 800 mV p–p 10% / 75 Ohm Equalization Automatic up to 100m @ 1.5Gb/s with Belden...
