Unit Installation - LG LW6017R Owner's Manual

Installation

Unit Installation

Caution: During the following step, hold unit firmly until window sash is
lowered to top channel behind side panel frames.Personal injury or
property damage may result if unit falls from window.

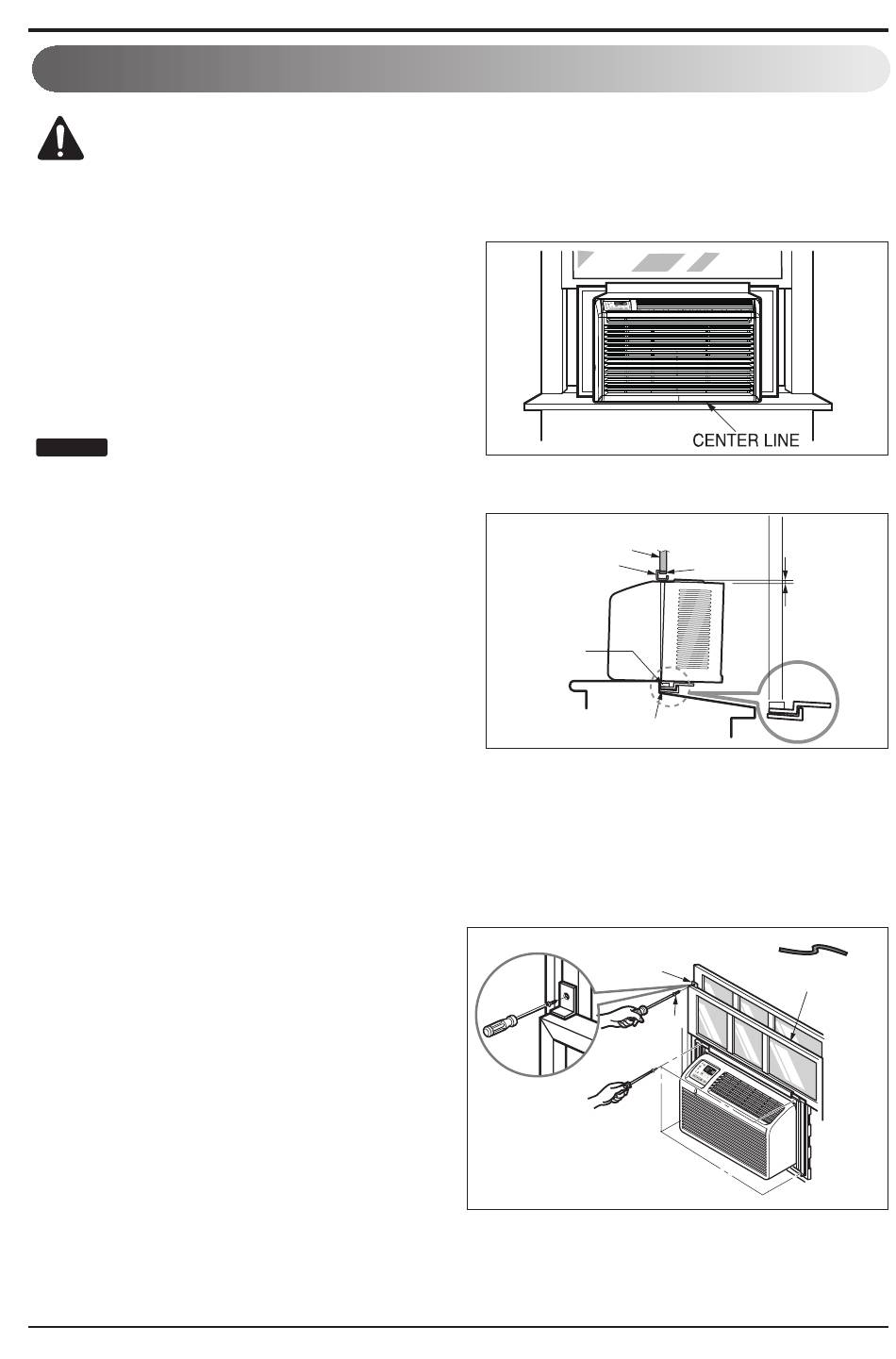

1. Install the air conditioner in the
window
1-1. Carefully lift the air conditioner and
slide it into the open window.
Makesure the bottom guide of the air
conditioner drops into the notches of
the L bracket.
: When the air conditioner drops into
NOTICE
the L bracket, the air conditioner will be
centered in window opening.
1-2. While steadying the air conditioner,
carefully bring the window sash down
behind the upper guide of the air
conditioner.When the air conditioner is
properlyinstalled, it should tilt slightly
down at the back.If it is set correctly in
the window, it will hang lower in the
back automatically.If it does not, there
is aproblem with the installation.
2. Secure the guide panels
Extend the guide panels (Type G) to fill
the window opening using 2 screws
(Type B) 2, screws (Type C) to secure
them.
3. Install the sash seal and sash lock
3-1. Cut the sash seal (Type F) to the
window width. Stuff the sash seal
between the glass and the window to
prevent air and insects from getting
into the room.
3-2. Fasten the Lbracket using a
screw(Type A).
4. Window installation of room air conditioner is now completed.
See ELECTRICAL DATE for attaching power cord to electrical outlet.
14 Room Air Conditioner
WINDOW FRAME
UPPER GUIDE
SEAL
BOTTOM
GUIDE
L BRACKET
L BRACKET
Type A
Type B
ABOUT 1/2"
SASH SEAL
(Type F)
