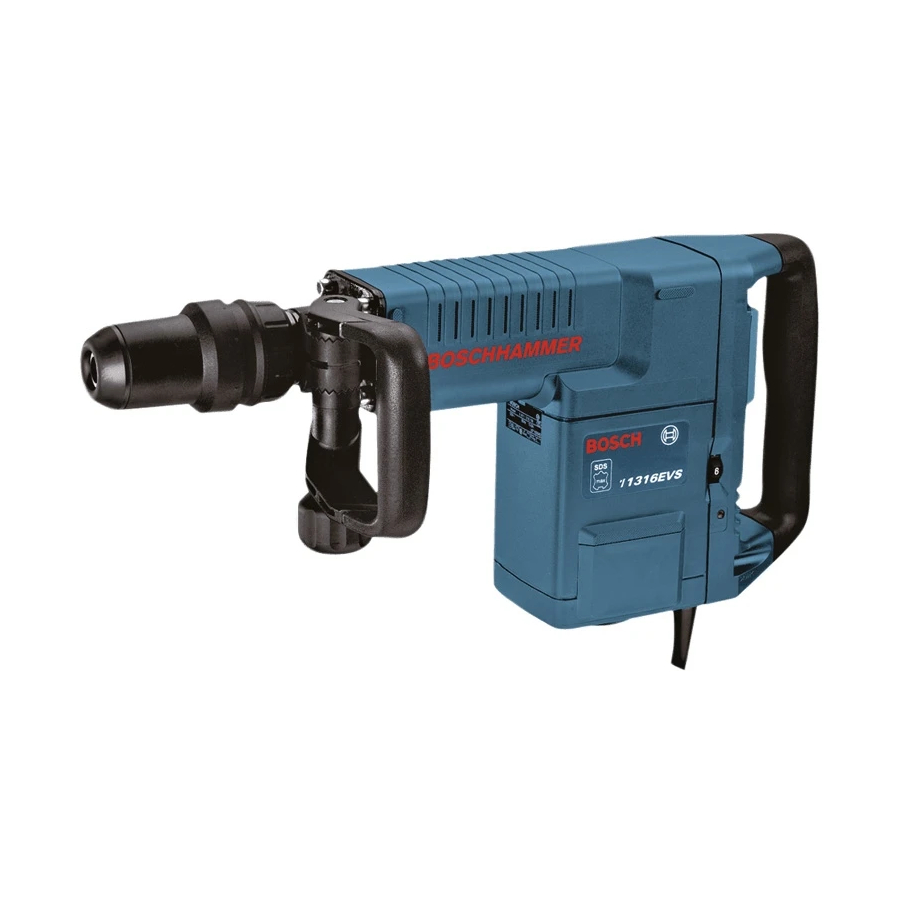

Hammerdrill, nonrot - Bosch 11316EVS

Operating Information

IMPORTANT:

Electric tools may use any number of symbols to designate electrical specifications. Proper interpretation of

these symbols will allow you to operate the tool better and safer. Please study these symbols on the following link and

learn their meaning:

Electric Tool Symbols

SLIDE "ON-OFF" SWITCH

The tool is switched "ON" by the slide switch 9 located in the rear handle. TO TURN THE TOOL "ON" slide the switch to the

right. TO TURN THE TOOL"OFF " slide the switch to the left.

Your tool is equipped with a variable speed dial. The impact rate (BPM) and rotating speed (RPM) can be varied according

to the type of work being performed by setting the variable speed dial to the selected setting. The chart below will help

you to determine which setting to use for your application. However, a pre-test will determine the best speed setting, as

the chart is intended only as a guide. Once the proper setting is determined the impact rate and rotating speed is kept

constant by means of the "Electronic Feedback Circuitry". The variable speed dial can be adjusted while the motor is

running with the tool free from work, allowing the operator to adjust the impact rate and rotating speed according to the

actual application.

Chipping (Demolition)

Table of Contents

Do you have a question about the 11316EVS and is the answer not in the manual?

Page 1 Hammerdrill, nonrot - Bosch 11316EVS Operating Information IMPORTANT: Electric tools may use any number of symbols to designate electrical specifications. Proper interpretation of these symbols will allow you to operate the tool better and safer. Please study these symbols on the following link and...
Page 2 ELECTRONIC FEEDBACK CIRCUITRY (EFC) The internal electronic feedback system provides a "soft start", which will reduce the stresses that occur from a high torque start. The system also helps to keep the preselected impact rate and rotating speed virtually constant between no- load and load conditions.
Page 3 The long wear and efficient operation of the BOSCH hammers will more than justify the cost for tools of this type. As earlier pointed out, sharp accessories as well as clean air vents are necessary for efficient operation.
