2.0 Functional Parts

2.1 Included Parts and Accessories

Please check the contents now (before use) to confirm that it is complete.
Contact your Liquid Image Co dealer if anything is missing.
USER MANUAL
CAMERA GOGGLE TM
USB CABLE
WARRANTY
MICRO FIBER STORAGE BAG
RECHARGEABLE LI-ION BATTERY 3.7V 1150mAh
MX LENS
EXTRA STRAP
TEAR SHEETS
TEAR SHEET STRAP CLIP
NOSE GUARD
REPLACEMENT FACE FOAM
HEX ALLEN WRENCH
NOTE: The CAMERA GOGGLE will be referred to as the
"CAMERA GOGGLE" throughout this instruction manual.
"If the product is exposed to a strong electrostatic charge, its memory
contents may be damaged or the keys may stop working. In such case,
reinstall battery to clear the memory and restore normal key operation."
WARNING: NEVER OPEN THE CAMERA BODY THAT IS FACTORY
SEALED WITH SCREWS. THIS WILL VOID ANY WARRANTY. NEVER USE
A SCREW DRIVER TO OPEN ANY PORTION OF THE CAMERA GOGGLE.

2.4 Part Names - Ports and LCD Screen

POWER/MODE
BUTTON
SHUTTER/SELECT
BUTTON
WiFi
ENG-3 ENG-3
HDMI
Port
WiFi - when flashing, the WiFi is in standby mode
When Solid, WiFi is turned on and ready
ENG-5

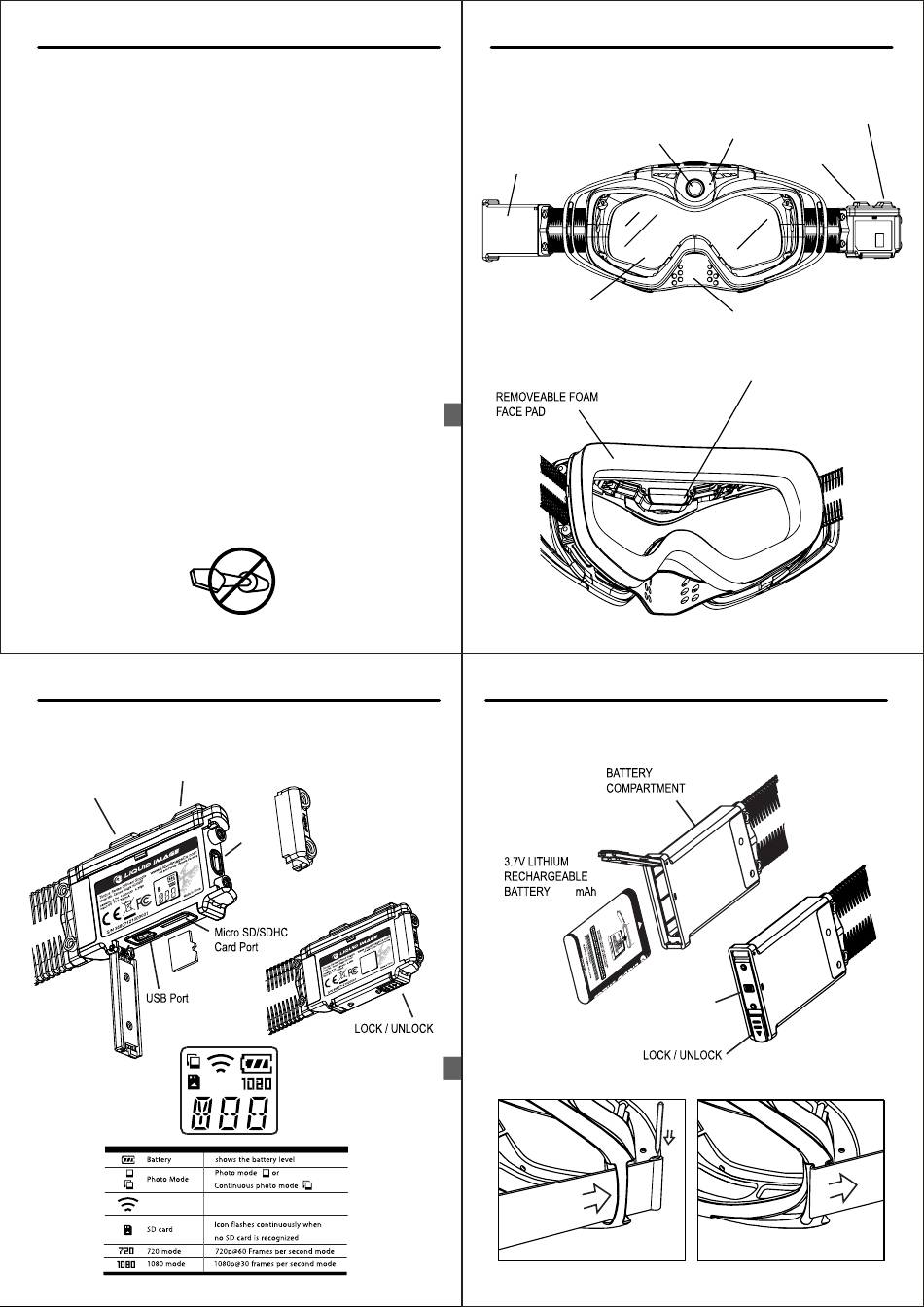

2.2 Part Names - Front View

2.2 Part Names - Front View
CAMERA
LENS
BATTERY
COMPARTMENT
GOGGLE LENS
2.3 Part Names - Back View
2.5 Part Names - Battery Compartment
1150
Secondary LOCK
2.6 Replace Goggle Strap
POWER/MODE
BUTTON
MICROPHONE
WITH WIND GUARD
SHUTTER/SELECT
BUTTON
NOSE GUARD
(REMOVEABLE)
MODE LIGHT
INDICATOR
(blue - video 720P@60fps)
(green - video 1080P@30fps)
(red - photo)
(purple - continuous photo)
(also used for recharging)
ENG-4
ENG-6
