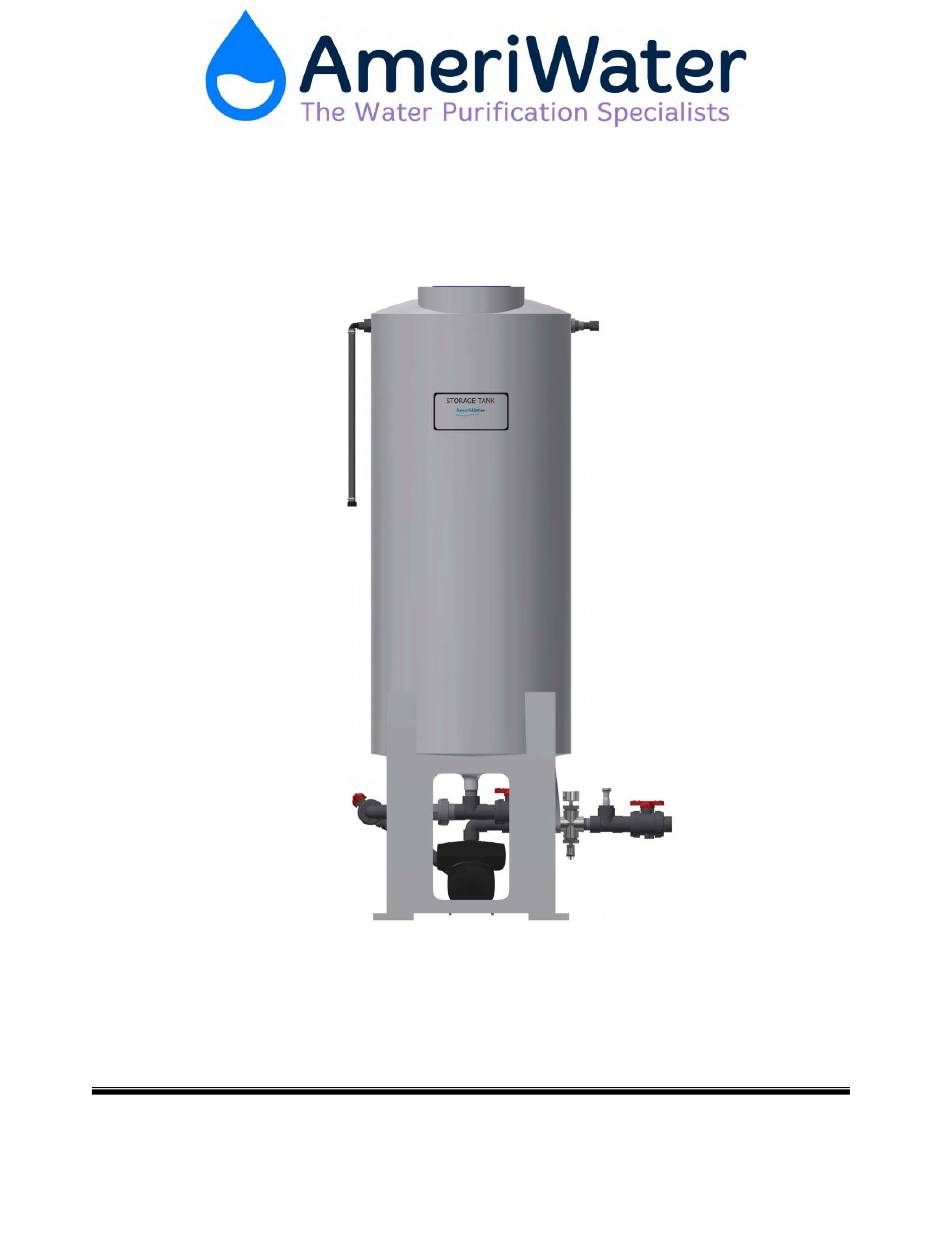

- Page 1 HEALTHCARE STORAGE TANKS OPERATION & MAINTENANCE MANUAL Manufactured With Pride In The USA www.ameriwater.com • 800-535-5585 AmeriWater • 3345 Stop 8 Rd. • Dayton, OH 45414 098-0001 Rev. A...
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE 1.0 STORAGE TANK COMPONENTS 2.0 INSTALLATION AND STARTUP 3.0 TANK DISINFECTION 4.0 REPLACEMENT PARTS 5.0 WARRANTY POLICY... -
Page 3: Storage Tank Components
The distribution pump on the storage tank will cycle whenever there is a pressure drop detected. (Applies to models, 00HC-0090, 00HC-0092 and 00HC-0094) The storage tank is equipped with 2 float switches, which will turn the reverse osmosis unit off when the water reaches the predetermined cutoff point and turn the RO on when the tank is drained to the appropriate level float. - Page 4 FIGURE 1.1 IDENTIFICATION OF STORAGE TANK COMPONENTS (FRONT VIEW) Connection for the purified water into the tank. WATER INLET: Gauge that measures the pressure in pounds PUMP PRESSURE GAUGE: per square inch (PSI) when the distribution pump is running. Pump that is used to distribute water to the system DISTRIBUTION PUMP: whenever the internal pressure drops or there is greater than 3.0 GPM flow.
- Page 5 MODEL # FPT (Size in Inches) MPT (Size in Inches) 00HC-0090 00HC-0091 1.00 1.00 00HC-0092 00HC-0093 1.00 1.00 00HC-0094 00HC-0095 1.00 1.00 00HC-0097 1.00 1.00 FPT connection point for the loop. See chart DISCHARGE CONNECTION: below for models and sizes...
- Page 6 Figure 1.2 IDENTIFICATION OF STORAGE TANK COMPONENTS (SIDE VIEW) Sends a signal to the RO when the tank is full HIGH LEVEL FLOAT: to stop water purification. Sends a signal to the RO when the MID LEVEL FLOAT: predetermined mid level has been breached to have the RO begin water purification.
-
Page 7: Installation And Startup
NEMA 4X rated disconnect. See table below for models and pump voltages. Part # Electrical Voltages Name 80-0002 115VAC, 1PH, 9.2AMPS DISTRIBUTION PUMP-55,100 & 185 GALLON STD FLOW, MODELS 00HC-0090, 00HC- 0090-PRV, 00HC-0092 AND 00HC-0094 80-0148 220VAC, 1PH, 7.5AMPS DISTRIBUTION PUMP, HIGH FLOW 30GPM, MODELS 00HC-0091, 00HC- 0093, 00HC-0095 80-0203 208VAC, 3PH, 8.3AMPS... -
Page 8: Tank Disinfection
TANK DISINFECTION Storage Tank Disinfection Procedure: The storage tank can be disinfected using household bleach or a peracetic acid disinfectant (PAA). WARNING: Never allow Chlorine (bleach) to come into contact with PAA. Doing so will cause a severe chemical reaction! For a 55 gallon tank, fill to the RO shut-off level mark and add 1 quart of household bleach or PAA. -
Page 9: Replacement Parts
REPLACEMENT PARTS Part # Name 1A. 80-0002 DISTRIBUTION PUMP-55,100 & 185 GALLON STD FLOW, MODELS 0185-8000, 00HC-0090, 00HC-0090-PRV, 00HC-0092 AND 00HC-0094 1B. 80-0148 DISTRIBUTION PUMP, HIGH FLOW 30GPM, MODELS 00HC-0091, 00HC-0093, 00HC-0095 1C. 80-0203 DISTRIBUTION PUMP, HIGH FLOW 70GPM, MODEL 00HC-0097 2. -
Page 10: Warranty Policy
WARRANTY POLICY This product is covered under the standard AmeriWater warranty policy. For specific terms and conditions, please contact your AmeriWater Sales Representative.
