Advent xt (2013)
Warden Call System
_______________________________________________________________________________________________________________

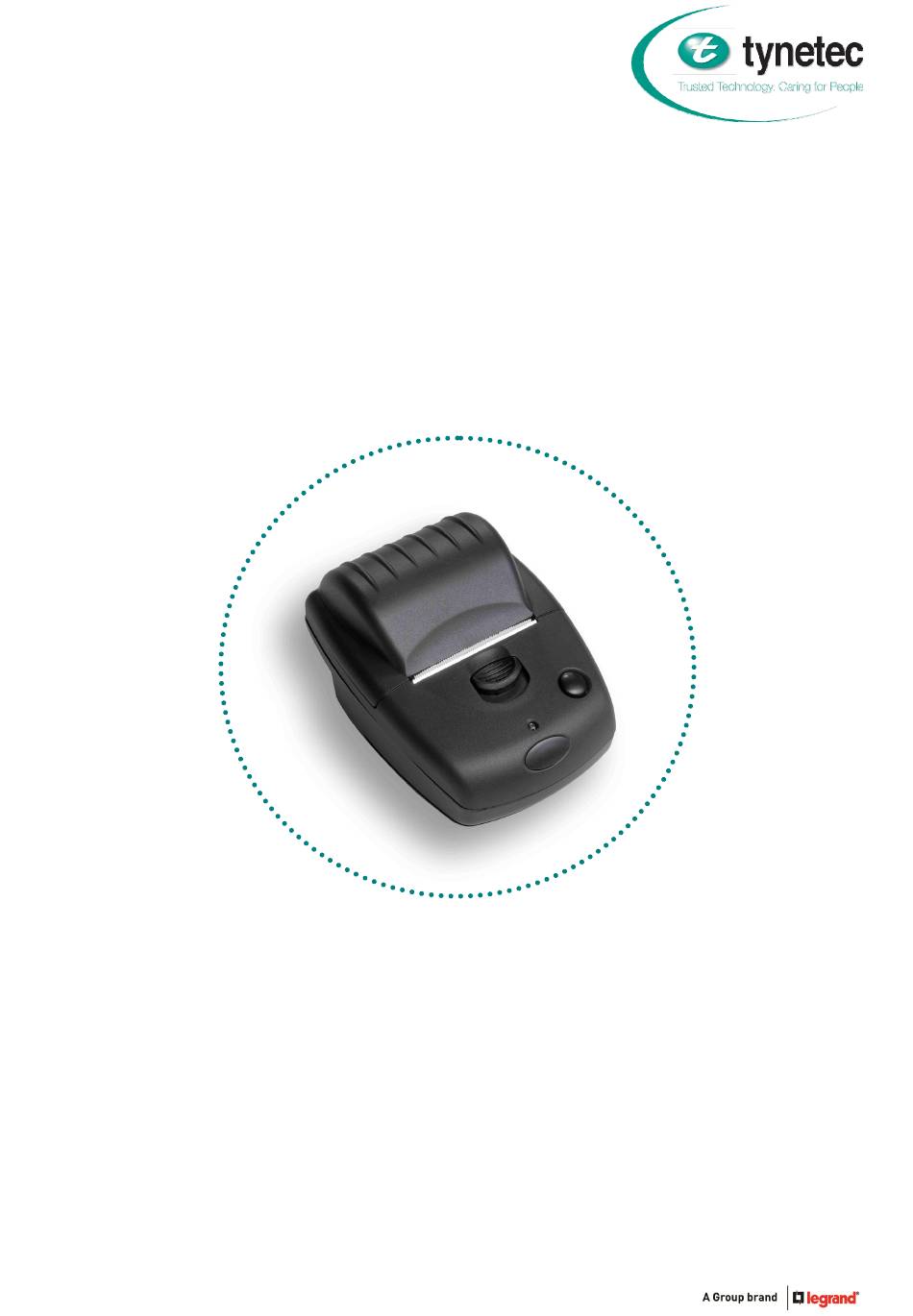

ZXT311 COMPACT THERMAL PRINTER
Tynetec operates a policy of continual product improvement and
reserves the right to modify the specification of its products.
If any variation to the details in this document are suspected please
contact Tynetec's Technical Support on 01670 352371.
Doc No. FM0416 issue B Page 1
User Guide
Tynetec, a business unit of Legrand Electric Ltd
Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth
Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807
Email: sales@tynetec.co.uk Web: www.tynetec.co.uk
Advertisement
Table of Contents
Related Manuals for Tynetec ZXT311
Summary of Contents for Tynetec ZXT311
- Page 1 Advent xt (2013) Warden Call System _______________________________________________________________________________________________________________ User Guide ZXT311 COMPACT THERMAL PRINTER Tynetec operates a policy of continual product improvement and reserves the right to modify the specification of its products. If any variation to the details in this document are suspected please contact Tynetec’s Technical Support on 01670 352371. Tynetec, a business unit of Legrand Electric Ltd Unit 10 Cowley Road, Blyth Riverside Business Park, Blyth Northumberland, NE24 5TF. Tel: 01670 352 371 Fax: 01670 362 807 Email: sales@tynetec.co.uk Web: www.tynetec.co.uk Doc No. FM0416 issue B Page 1...
- Page 2 1. INTRODUCTION The Advent xt printer records the time and date of all calls made/answered/cancelled on the warden call system. All other system activity such as telephone line fault, mains fail, system reset, etc. is also recorded. 2. PUSHBUTTON The pushbutton performs several functions; click once to turn the printer on, press and hold for paper feed when changing paper rolls or double‐click to perform a self‐test and print the internal settings. 3. LED INDICATOR The LED indicator on the front of the printer will normally flash short green ‐ long orange, there are a number of other colour combinations which provide printer status information; LED Pattern Battery Status Buffer Mode Short Green ‐ Long Orange Trickle Charging Normal Long Orange Flashing Trickle Charging Spool Steady Green Running on Battery Normal Fast Flashing Green Running on Battery Spool Long Green ‐ Short Red Battery Low Normal Short Green ‐ Short Red Battery Low Spool Fast Flashing Orange Fast Charging ...
- Page 3 5. PRINT‐OUT DETAILS CONTINUED… CALL TYPES INTERCM Intercom Alarm CO GAS Carbon Monoxide Alarm PENDANT Pendant Alarm GAS Natural Gas Alarm PCORD Pullcord Alarm FLOOD Flood Detector Alarm SMOKE Smoke Alarm LO TEMP Hypothermia Alarm OPEN CT Open Circuit Fault BED OCC Bed Occupancy Alarm ...
- Page 4 6. REPLACEMENT PAPER Paper roll must be replaced with THERMAL PAPER only. The thermal sensitive coating must be on the outside Paper rolls must be 58mm wide Maximum paper roll diameter 58mm (37.7 metres long) Replacement paper roll: Tynetec P/No. W00336 7. LOADING PAPER 1. Slide the lid release button until the lid springs open 2. Unwind a small amount of paper and insert into the printer 3. Close the lid down and the paper is loaded After loading, check that the paper advances properly and tear‐off any excess by pulling towards you across the serrated edge. Doc No. FM0416 issue B Page 4...
