Summary of Contents for Belimo 22DC-11

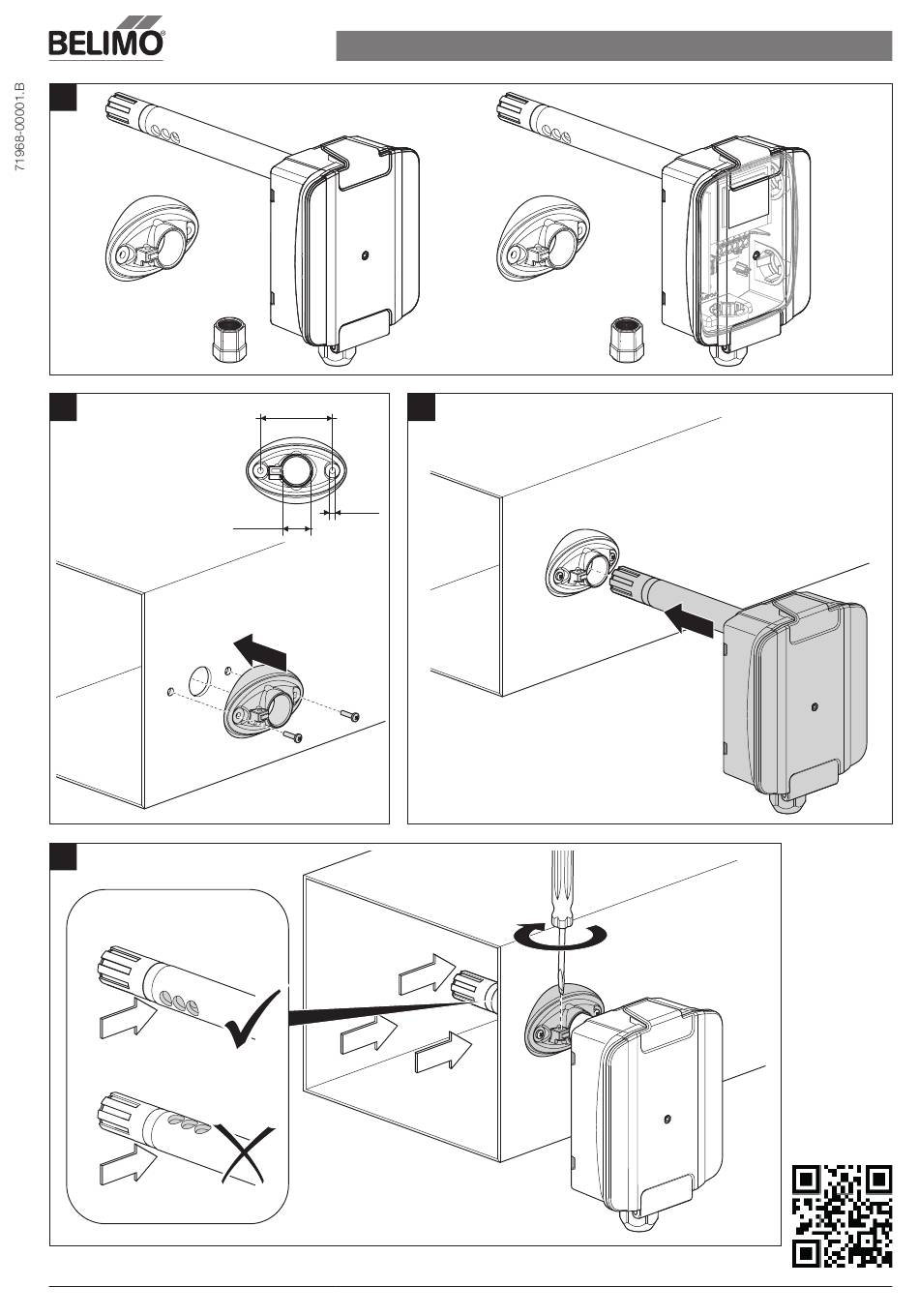

- Page 1 22DC-.. / 22DTC-.. / 22DTM-.. / 22DCV-.. / 22DCM-.. / 22DCK-.. L C D 49.88 mm 1.96" 4 mm 0.16" 19.6 mm 0.77" www.belimo.com/safety www.belimo.com 22DC-.. / 22DTC-.. / 22DTM-.. / 22DCV-.. / 22DCM-.. / 22DCK-.. • 2017-03...
- Page 2 22DC-.. / 22DTC-.. / 22DTM-.. / 22DCV-.. / 22DCM-.. / 22DCK-.. 22DC-11 / 22DC-51 DC 0...5/10 V DC 0...5/10 V (CO2) – AC/DC 24 V 22DC-13 / 22DC-53 4...20mA AOI1 AOI2 DC 0...5/10 V (CO2) – AC/DC 24 V 4...20 mA (CO2) www.belimo.com...
- Page 3 4...20 mA (CO2) 22DTM-51 / 22DTM-5106 3 x 0...5/10 V A0U3 A0U4 DC 0...5/10 V (T) DC 0...5/10 V (CO2) – AC/DC 24 V DC 0...5/10 V (rH) www.belimo.com 22DC-.. / 22DTC-.. / 22DTM-.. / 22DCV-.. / 22DCM-.. / 22DCK-.. • 2017-03...
- Page 4 4 x 0...5/10 V AOU3 AOU4 DC 0...5/10 V (VOC) DC 0...5/10 V (CO2) – AC/DC 24 V DC 0...5/10 V (Mix VOC/CO2) DC 0...5/10 V (T) www.belimo.com 22DC-.. / 22DTC-.. / 22DTM-.. / 22DCV-.. / 22DCM-.. / 22DCK-.. • 2017-03...
