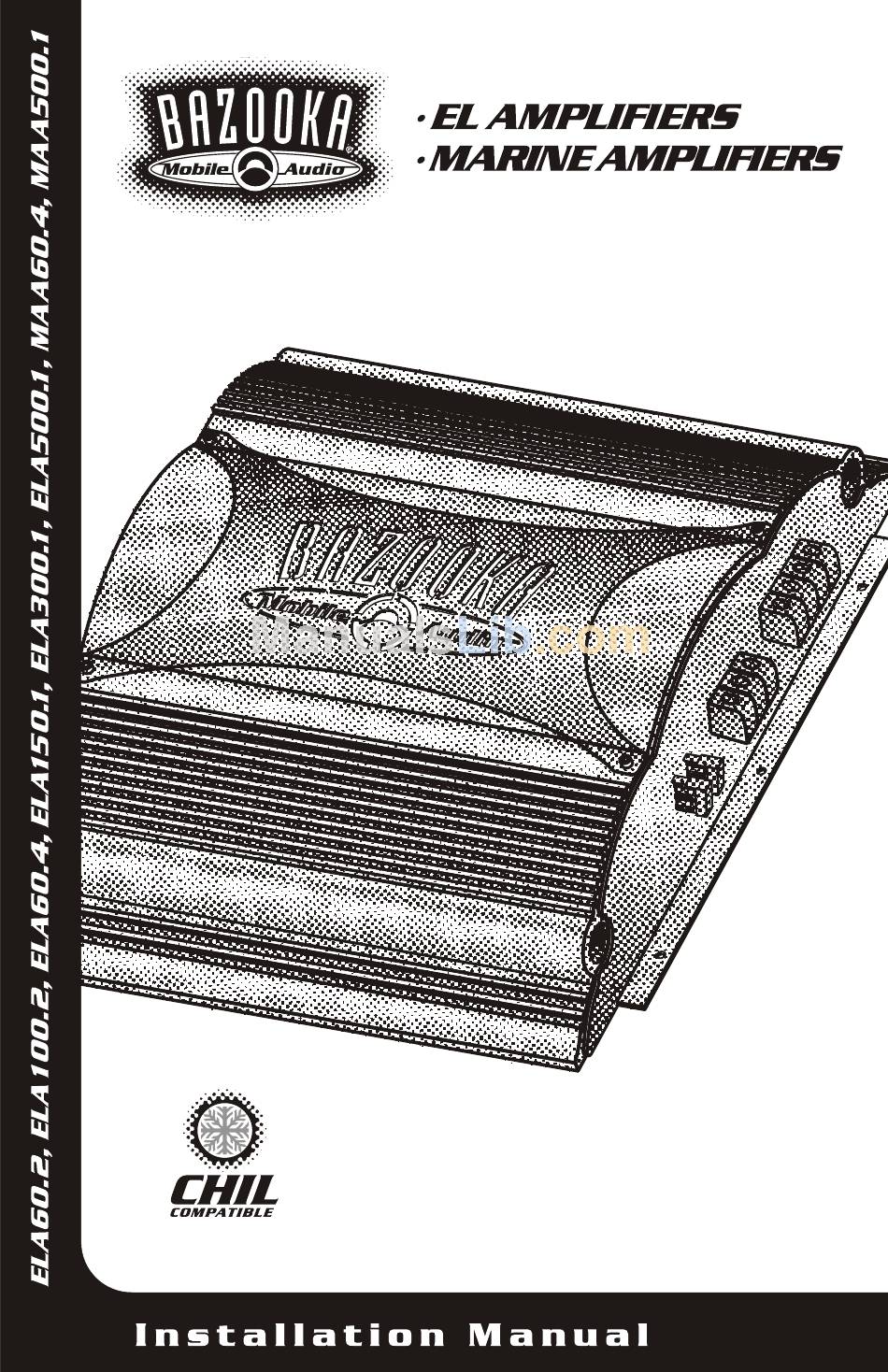

- Page 2 Dear customer, Congratulations on your purchase of a Bazooka EL high-performance amplifier. At Bazooka, we are fanatics about accurate music reproduction. Your selection of our products for your sound system indicates that quality sound is also important to you too. At SAS, we take great pride in manufacturing revolutionary audio products, and through the years of engineering expertise, hand craftsmanship and critical testing procedures, we have created the EL high-performance series of amplifiers.
- Page 3 Be sure to fuse the power wire within 12” of the car's battery. This will protect the car's battery in case of a short circuit between the power amplifier and battery. THIS IS A MUST, the amplifier's built-in fuse will only protect the power amplifier not the car's battery! To ensure maximum power transfer and secure safe connections, it is recommended to use high grade barrier spades (for connection at amplifier) and terminal rings...
- Page 4 **Except ELA300.1 & ELA / MAA500.1 which have a 40 ~ 120Hz low pass filter. The “EL”amplifiers include a auxiliary output for a daisy chain connection of an EL Bazooka Amplified Bass Tube. Heavy gauge bare wire distribution blocks are provided for maximum power and signal transfer with minimal resistance.
- Page 5 Allows you to fine-tune the level matching between your source and the power amplifier. Allowing for integration with “Factory Sound Systems”. Stability to 2 ohm in stereo mode, 4 ohms bridged. The ELA150.1, ELA300.1 and ELA/ MAA500.1 are stable to 2 ohms mono.
- Page 6 Before you start the installation, it will be necessary to find a mounting location for the amplifier. Find a location in which the amplifier will receive adequate ventilation in order to dissipate the heat it develops during operation. Two popular mounting locations are in the trunk or under the seat.
- Page 7 7.5A RADIO'S REMOTE RADIO'S REMOTE TURN-ON OUTPUT TURN-ON OUTPUT 94.7 94.7 IMPORTANT! Before making any connections, disconnect the car’s battery until the installation is completed to avoid possible damage to the electrical system. At times, the amplifier will need to draw large levels of current that cannot be provided by any circuit in the car's fuse box.
- Page 8 RCA to “CH 1” ...then speaker output “CH 1” will operate the front right speaker. REMOTE Optional full range line out connection to additional amplifiers in the system. ELA150.1, ELA300.1 AND ELA / MAA500.1 SIGNAL CONNECTIONS BASS BOOST X-OVER...
- Page 9 High Level inputs have been included to connect the amplifier to a radio without low-level outputs (i.e. factory radio). This connection will allow you to connect directly to the speaker output of the radio with out the need of an external adapter. Determine the type of radio you have and make one of the following connections.
- Page 10 BASS BOOST X-OVER 12dB 60Hz POWER GRAY/BLACK GRAY/BLACK GRAY GRAY BLACK (GROUND) BLACK (GROUND) WHITE/BLACK WHITE/BLACK WHITE WHITE ELA / MAA60.4 CONNECTIONS: FLOATING GROUND RADIO (MOST COMMON TYPE) BASS BOOST X-OVER 12dB 60Hz POWER GRAY/BLACK (NOT USED) GRAY/BLACK (NOT USED) GRAY GRAY BLACK...
- Page 11 TWO CHANNEL SPEAKER CONNECTIONS 4 Ohm Speakers 4 Ohm Speakers (2 Ohm Minimum) (2 Ohm Minimum) FOUR CHANNEL SPEAKER CONNECTIONS +12V FUSE ELA150.1, ELA300.1 AND ELA /MAA500.1 SPEAKER CONNECTIONS BRIDGED CH 2 CH 1 OUTPUT 7.5A CH 3 CH 4...
- Page 12 The EL amplifiers are capable of being bridged in a mono configuration. This feature allows you the flexibility of using the amplifier to drive a ** subwoofer or a center channel. In this configuration the amplifier sums the right and left channel to deliver one channel (mono) output.
- Page 13 4 Ohm connections. If you wish to use multiple speakers to achieve a lower impedance and higher power, it is strongly recommended that you seek professional advice from your BAZOOKA retailer before attempting to make these connections.
- Page 14 Before connecting the remote, it will be necessary to find a mounting location that will be easy to access for adjustment. Once you select your mounting location, you will need to run the control wire from the remote to the amplifier. possibility of induced noise from the car's electrical system (i.e.
- Page 15 (Please note: If you intend to use the amplifier in the Tri-mode configuration, it is necessary to set the crossover control to the “FLAT” setting in order to receive full range output) The “EL” amplifiers are equipped with a built-in variable crossover network allowing you to select the crossover type (i.e.
- Page 16 We have put together this trouble-shooting guide if you experience problems after installing the amplifier. Please keep in mind that the majority of problems incurred are caused by improper installation and not the equipment itself. In addition, there are many components in the system that could cause various signal problems such as inducted electrical noise and engine noise.
- Page 17 Max Power Output Power @ 14.4 VDC : 4 ohm 2 ohm Bridged 4ohm Frequency Response + - 1dB S/N Ratio (A-weight) THD with 80k filter Low Input Level Hi Input Level Battery Voltage Range Crossover S/W for 1+2 channel Variable Hi-Low Pass Range Crossover Slope Bass EQ at FULL/LP...
- Page 18 SAS’ option: SAS limits its obligation under any implied warranties under state laws to a period not to exceed the limited warranty period. SAS and its authorized BAZOOKA® dealers specifically disclaim liability for any incidental or consequential damages. Some states do not allow limitations on how long an implied warranty lasts, and some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusions may not apply to you.
- Page 19 How to obtain warranty services: 1. You are responsible for delivery of the product to an authorized BAZOOKA® dealer or contact SAS at 1-800-THE TUBE for a Return Authorization number. The Return Authorization number must be clearly written on the outside of the box. Freight must be prepaid to SAS.
