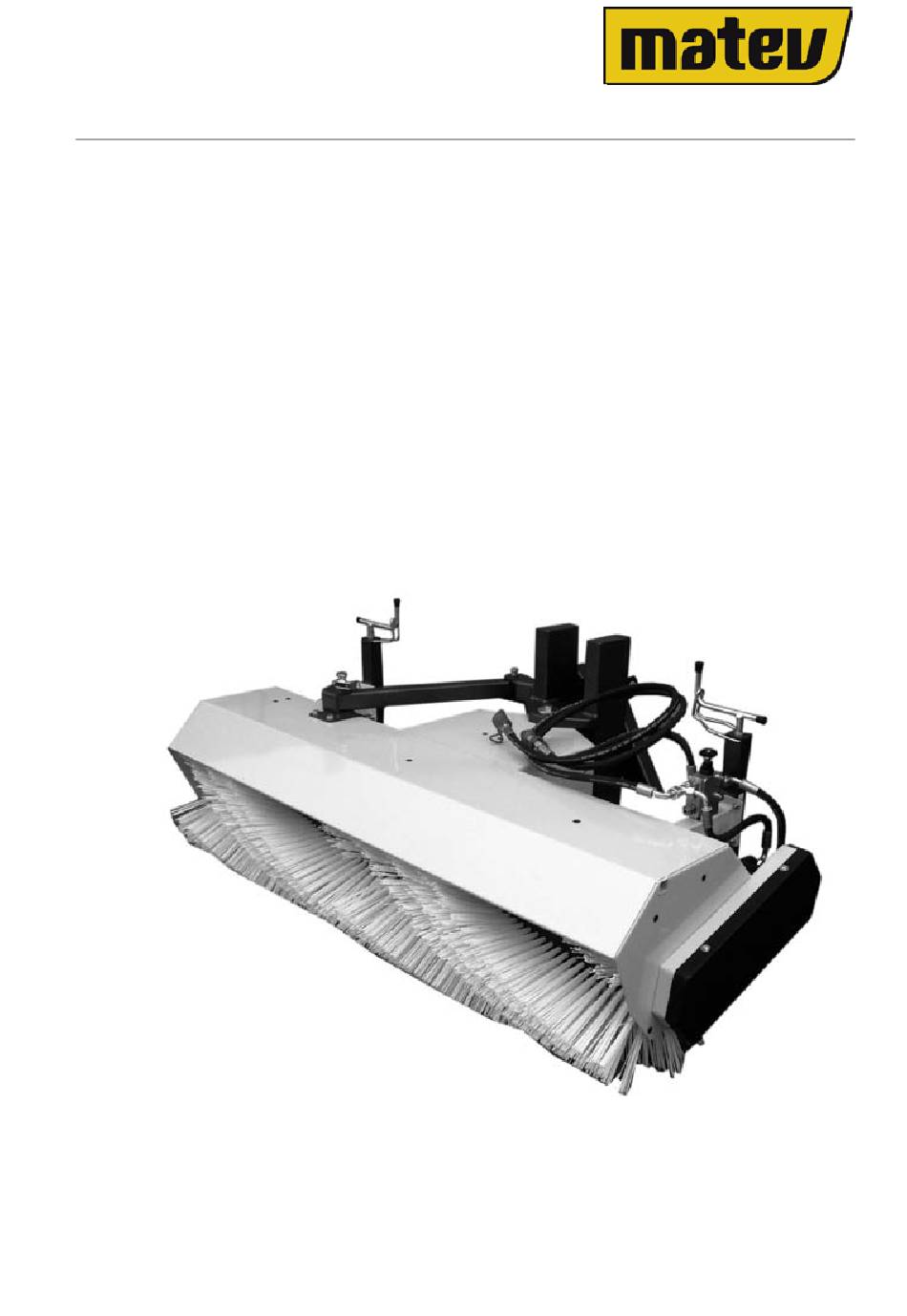

- Page 1 GmbH Nürnberger Str. 50 90579 Langenzenn T +49 (0) 9101 9087 -0 F +49 (0) 9101 9087 -20 info@matev.eu www.matev.eu Original Operating Manual Front Sweeper SWE-HY 150 Free-sweeping and self-adjusting Working width 150 cm, roller diameter 45 cm Version 12/2009...
-
Page 2: Table Of Contents
Attaching the front sweeper ....................6 Attachment of a SWE-HY 150 ..................6 Attachment of a SWE-HY 150 ..................8 Mounting the dirt collector - SWE-HY 150 ............... 8 Mounting the side broom 1500 ..................9 Mounting the side broom 1500 ..................10 Operation ........................ -
Page 3: About This Operating Manual
About this operating manual About this operating manual Dear customer! Thank you for purchasing this sweeper, we appreciate your trust. Prior to using this sweeper for the first time, read this operating manual carefully and conscientiously all the way through. Keep this operating manual where it is easily accessible. -
Page 4: Safety Instructions
Safety instructions Safety instructions Note & Strictly ensure to read!!! Forward all safety instructions on to other users! Intended use · The implement is designed exclusively for conventional use in agricultural and forestry, green area and park care applications, as well as for winter service. ·... -
Page 5: Ground Rules
Safety instructions Ground rules · Before each use check the machine to ensure that it is operationally safe!!! · Cleaning tasks, e.g. using a high-pressure cleaner should be executed in such a manner that the water jet is not aimed directly at bearing and rotat- ing parts, (shaft seals, lubricating nipples, etc.). -
Page 6: Installation
(special accessory) supplemental Attachment of a SWE-HY 150 Depending on the tractor type the provided universal joint shaft may be too long. In this case it must be shorted as described in the following steps. - Page 7 Operation 7. Repeat steps 4 – 6 on the second universal joint half. 8. Debur all cut edges. (Picture 4) Picture 5 9. Grease the profile tubes. (Picture 5) 10. Slide the profile tubes together. Mounting the universal joint shaft 1.
-
Page 8: Attachment Of A Swe-Hy 150
Ensure that the plug-in couplings are clean. Mounting the dirt collector - SWE-HY 150 Mount the two attachment plates (collector receptacles) on both facing sides of the sweeper, using 4 M 8 x 20 mm screws for each side. -
Page 9: Mounting The Side Broom 1500
Operation Mounting the side broom 1500 When attaching for the first time pull the right tension rod out of the sweeper and instead of the large diameter washer, slide on the provided spring-lock washer and pulley. Intro- duce all of these elements together into the sweeper. Now screw the attachment plate to the right side panel with four screws, spring-lock washers + nuts (see 4x A). -
Page 10: Mounting The Side Broom 1500
Operation Mounting the side broom 1500 To mount the side brush, dismount the 3 screws (M8 x 20 mm) on the collector, replace the fastening plate with the support arm of the side broom. Picture Fasten the pipelines and the control valve (Picture 4) in the bores provided for this purpose. When mounting the pipelines on the second side of the holding clips, insert the spacers. -
Page 11: Operation
Operation Operation Operating instructions - sweeper Using the turning handles, adjust the two support wheels in such a manner that the sweeper roller makes a strip approximately 4 cm in width (Picture 6) against the ground. In this process use the markings to ensure that the two support wheels have the same setting! Note: Adjusting the sweeper roller too tight does not produce a better sweeping result. -
Page 12: Side Brush - Adjustment 1500
Operation Side brush - adjustment 1500 Only adjust the side brush after the main sweeper roller and dirt collector are adjusted. Use the hand wheel to adjust the side broom in such a manner that corners that need to cleaned are completely swept out. If the side broom is not in use flip it up and secure it with linch pins. -
Page 13: Maintenance
Maintenance Maintenance General Attention! Personal injury or damage to the machine can occur. Before each use of the machine check all safety-relevant parts and the hydraulic connections. Service ● The sweeper must be serviced at regular intervals. ● After execution of the tasks all dismounted safety devices must be properly reattached. -
Page 14: Daily Check
Daily check Daily check ● Before each use, check the hydraulic connections for wear. ● Check the hydraulic connections and hoses. ● Execute a trial run before each use. ● Clean the implement after each use. ● Sweeper roller: For storage raise the two support wheels until the swee- per roller is offloaded. -
Page 15: Disposal
Take the parts to the collection points for residual waste, special waste, or recycle them depending on material. matev GmbH does not provide any disposal services. Warranty The general delivery conditions of matev GmbH apply. Page 15... -
Page 16: Technical Data
Technical Data Technical data Sweeper Hydro 1500 Type Working width 150 cm 150 cm Sweeper roller 45 cm 45 cm diameter ● Mechanical drive ● Hydraulic drive Weight approx. 118 kg 115 kg Enter the article number and the chassis number here. These are on the type plate on the implement. -
Page 17: Ec Declaration Of Conformity
90579 Langenzenn declares that the machine Front Sweeper 131 5927 Type SWE-HY 150 complies with the provisions of the Machinery Directive 2006/42/EC and with the implementing na- tional statutory provisions. The signer is authorized to compile the technical documents. The address is the address of the manufacturer.
